Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2018, 10:49 AM

  • 08 0141_08 0140 _21062018_041759.mp4

Date
06/21/2018
W/O
707209
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00006
PipeID
P00197
Time
3:49 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5741
Sewer Name
08 FIGUEROA STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
WO_707209_TV08173_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
08 0140
Downstream MH
08 0141
Dir. of Survey
Upstream
Length Surveyed
350.9 ft.
Total Length
350.9 ft.
Structural Index
3
Structural Quick
423M
Structural Rating
221
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
221
Pipe schematic from manhole 08 0140 to 08 0141
MH: 08 0140MH: 08 0141upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 01410.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish24.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"124 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"161.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"191.2 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES228.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"231.1 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES317.7 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES348.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start350.9 ft. AMH - Downstream Manhole, Survey Begins - 08 0140350.9 ft. MWM - Water Mark, 20 %of cross sectional area350.9 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (4)

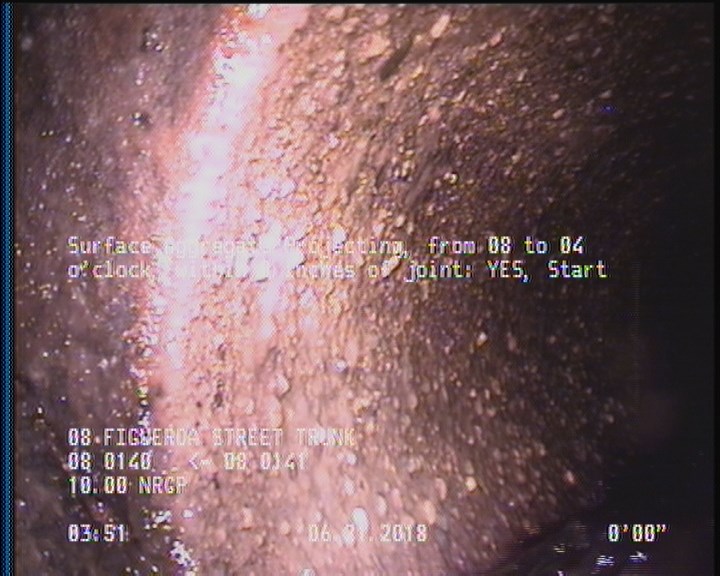

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    33.2 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    119.8 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

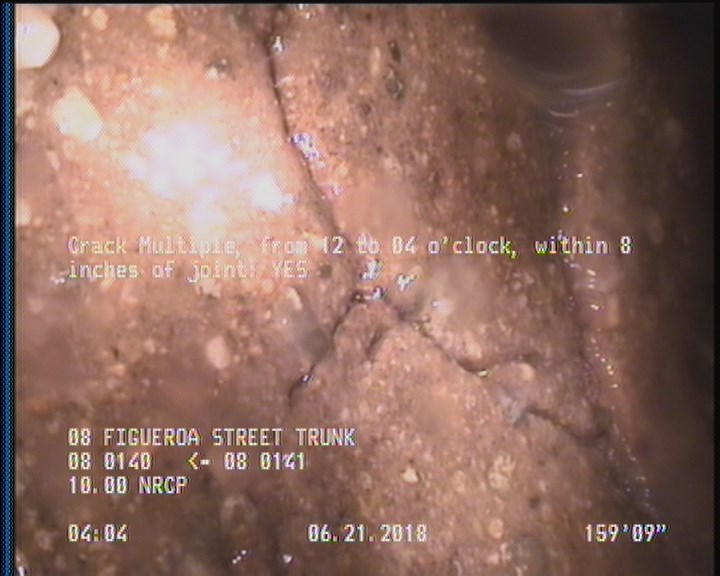

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    159.7 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00197Work order 707209

Observations (13)

DistanceCodeObservation
33.2FM—
0AMH08 0140
326.4TFA—
119.8FM—
122.8TFC—
350.6SAP—
159.7CM—
2SAP—
350.9AMH08 0141
0MWM—
189.8TFA—
226.9TF—
0MWL—

Properties (4)

additional_info
SC359707
custom_field_two
2
customer
LACSD
datetime
2018-06-21T03:49:22-07:00
