Wastewater/Activity/PacpInspection/1.0Jun 12, 2018, 10:16 AM
15 0670_15 0669 _12062018_032540.mp4
- Date
- 06/12/2018
- W/O
- 707118
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00602
- PipeID
- P12562
- Time
- 3:16 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5191
- Sewer Name
- 15 EL MONTE AVENUE TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_707118_TV15005_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0670
- Downstream MH
- 15 0669
- Dir. of Survey
- Downstream
- Length Surveyed
- 108.9 ft.
- Total Length
- 108.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

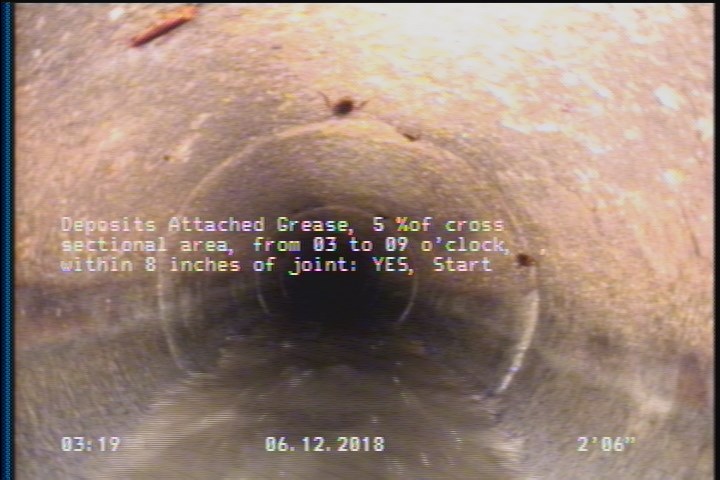

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

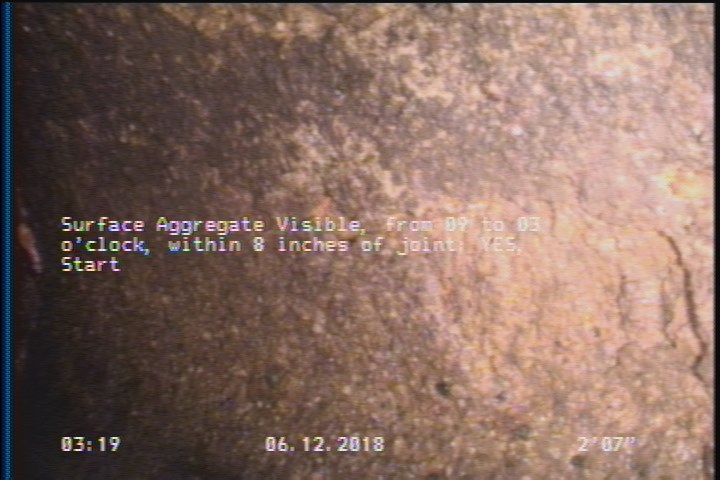

2.6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

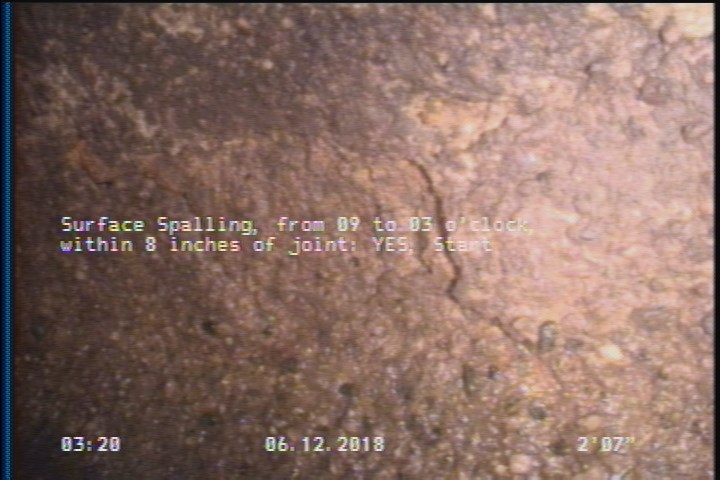

2.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

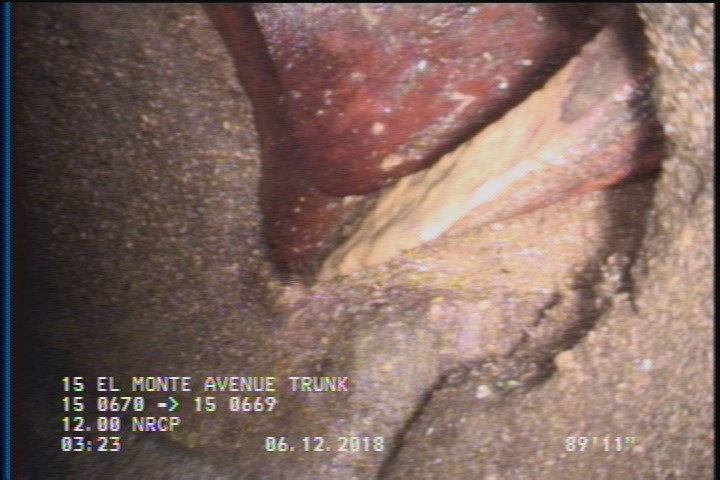

89.8 ft. - Tap Break-In Intruding, at 02 o'clock, -, -, within 8 inches of joint: NO, 6", 1"
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 106.8 | SAV | — |
| 89.8 | TBI | — |
| 30.1 | TFC | — |
| 108.9 | AMH | 15 0669 |
| 2.6 | SAV | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 102.9 | TF | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 106.8 | DAGS | — |
| 0 | AMH | 15 0670 |
| 2.5 | DAGS | — |
| 106.8 | SSS | — |
| 2.6 | SSS | — |
Properties (4)
- additional_info
- SC359514
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-12T03:16:37-07:00
