Wastewater/Activity/PacpInspection/1.0Jun 20, 2018, 06:16 AM
15 0281_15 0280 _19062018_235125.mp4
- Date
- 06/19/2018
- W/O
- 707010
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00591
- PipeID
- P12204
- Time
- 11:16 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5736
- Sewer Name
- 15 AMAR ROAD TRUNK
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_707010_TV15142_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0281
- Downstream MH
- 15 0280
- Dir. of Survey
- Downstream
- Length Surveyed
- 352.7 ft.
- Total Length
- 352.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 412[
- O&M Rating
- 284
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 289
Observation photos (4)

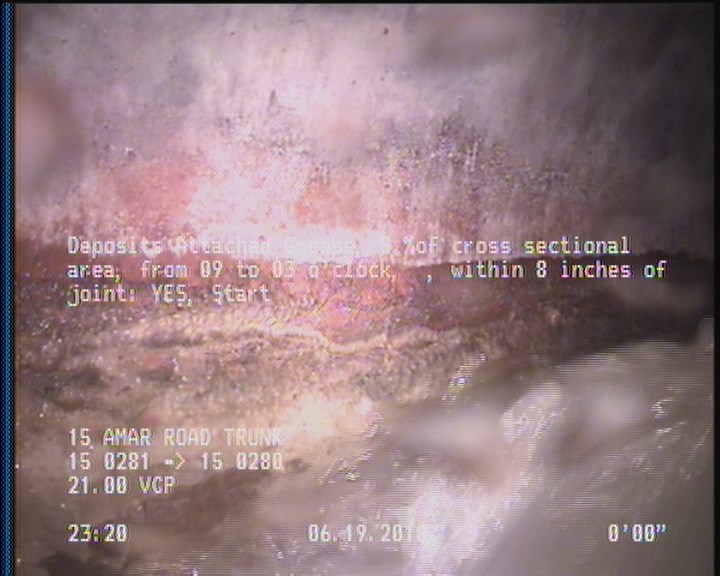

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

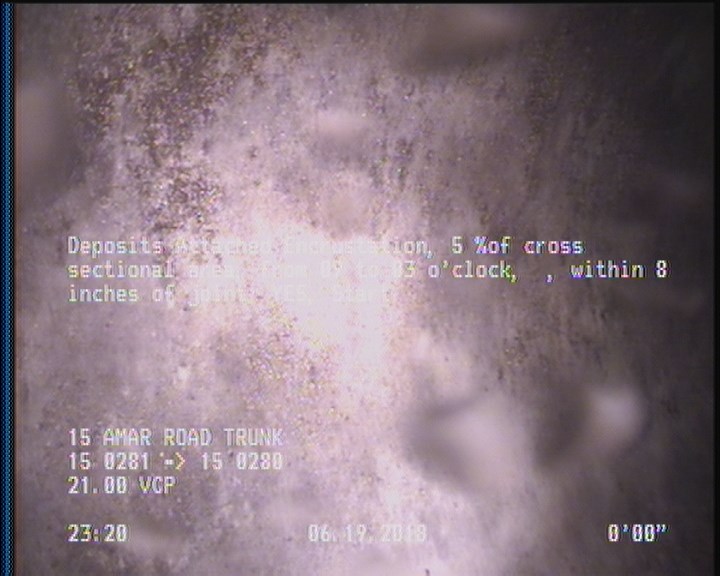

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

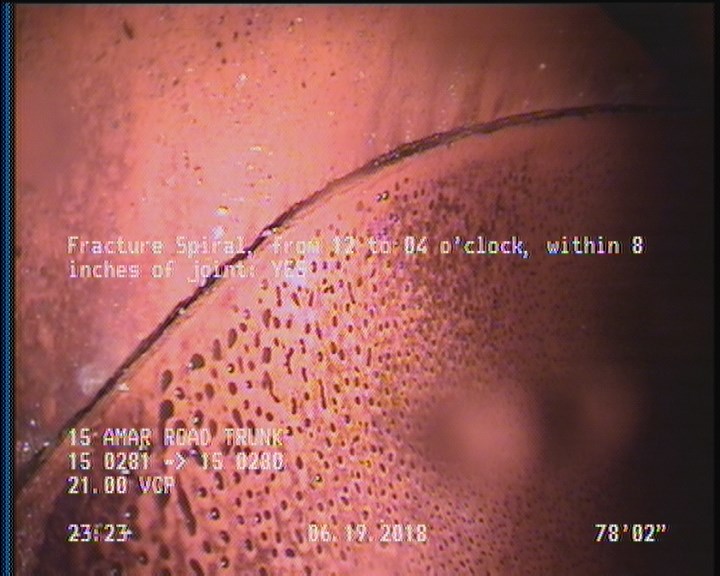

78.2 ft. - Fracture Spiral, from 12 to 04 o'clock, within 8 inches of joint: YES

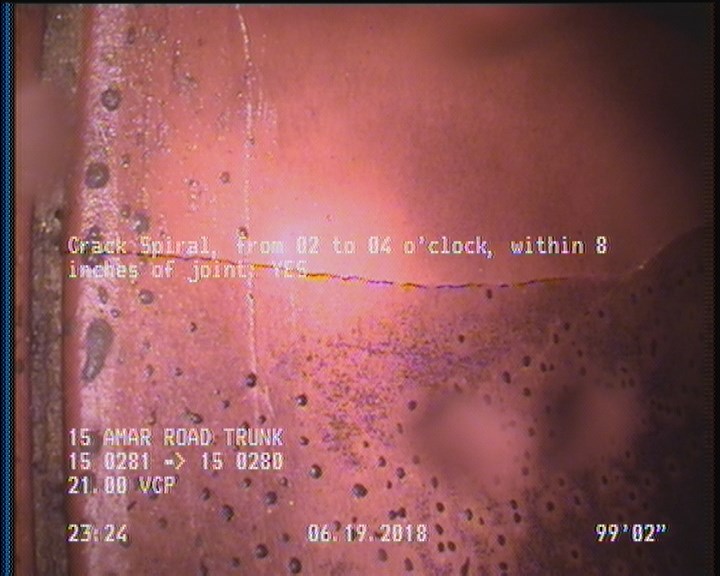

99.2 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 352.7 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 344.5 | TFC | — |
| 0 | AMH | 15 0281 |
| 99.2 | CS | — |
| 351.6 | DAGS | — |
| 178.3 | TFC | — |
| 78.2 | FS | — |
| 352.7 | AMH | 15 0280 |
| 223.6 | TFC | — |
| 351.6 | DAE | — |
| 351.6 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAE | — |
| 278.4 | TFC | — |
Properties (4)
- additional_info
- SC359702
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-19T23:16:42-07:00
