Wastewater/Activity/PacpInspection/1.0May 25, 2018, 07:26 PM
18 0029_18 0028 _08062018_021103.mp4
- Date
- 05/25/2018
- W/O
- 706968
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00713
- PipeID
- P13845
- Time
- 12:26 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5189
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_706968_TV18059_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0028
- Downstream MH
- 18 0029
- Dir. of Survey
- Upstream
- Length Surveyed
- 98.7 ft.
- Total Length
- 98.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

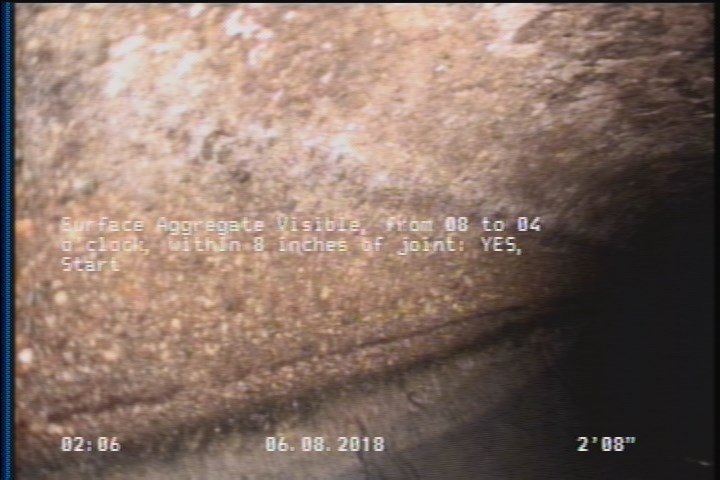

2.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

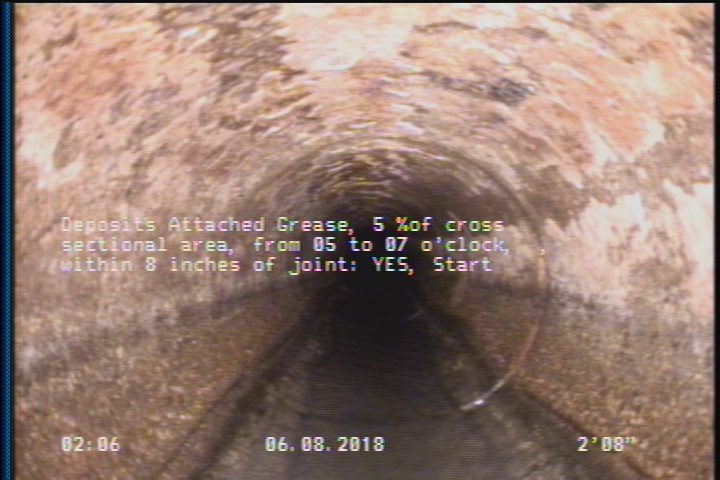

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 96.6 | MGO | MAGNEZIUM H.O COATING finish |
| 2.7 | SAV | — |
| 98.7 | AMH | 18 0029 |
| 96.6 | SAV | — |
| 98.7 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 2.7 | MGO | MAGNEZIUM H.O COATING start , FLAKING |
| 2.7 | DAGS | — |
| 0 | AMH | 18 0028 |
| 96.6 | DAGS | — |
Properties (4)
- additional_info
- SC359511
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-25T12:26:10-07:00
