Wastewater/Activity/PacpInspection/1.0Jun 11, 2018, 10:48 AM
18 0006_18 0650 _11062018_035521.mp4
- Date
- 06/11/2018
- W/O
- 706968
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00713
- PipeID
- P13822
- Time
- 3:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5190
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_706968_TV18059_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0650
- Downstream MH
- 18 0006
- Dir. of Survey
- Upstream
- Length Surveyed
- 33.5 ft.
- Total Length
- 33.5 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

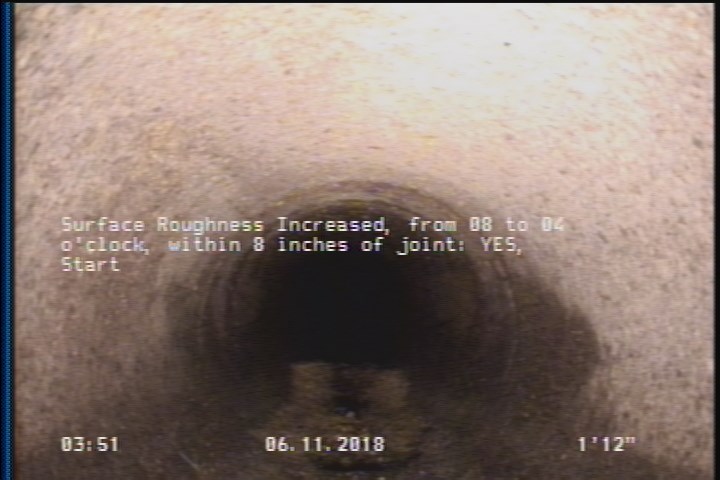

2 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.9 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRI | — |
| 0 | MWL | ACTUALLY 0% |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 33.5 | AMH | 18 0006 |
| 2.9 | DSF | — |
| 33.5 | SRI | — |
| 33.5 | MGO | FLOW BARRIER |
| 33.5 | MGO | FOOTAGE DIFFERS FROM DB |
| 0 | AMH | 18 0650 |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359513
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-11T03:48:15-07:00
