Wastewater/Activity/PacpInspection/1.0May 31, 2018, 07:44 AM
20 0417_20 0296_31052018_004931.mp4
- Date
- 05/31/2018
- W/O
- 706912
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00749
- PipeID
- P19365
- Time
- 12:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5714
- Sewer Name
- 20 10TH STREET EAST CONNECTION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_706912_TV20001_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0417
- Downstream MH
- 20 0296
- Dir. of Survey
- Downstream
- Length Surveyed
- 54.2 ft.
- Total Length
- 54.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (1)

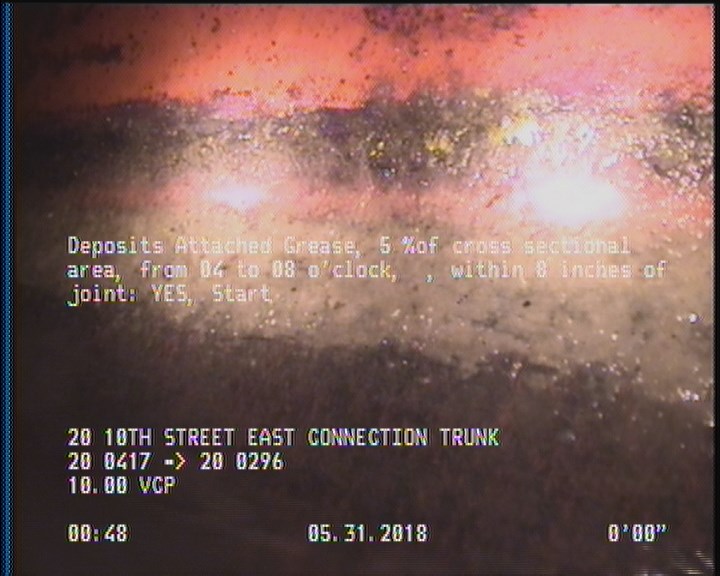

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 52.2 | DAGS | — |
| 0 | AMH | 20 0417 |
| 0 | MWM | — |
| 54.2 | AMH | 20 0296 |
Properties (4)
- additional_info
- SC359380
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-05-31T00:44:09-07:00
