Wastewater/Activity/PacpInspection/1.0Jun 4, 2018, 11:46 AM
02 1386_H JOINT _04062018_045600.mp4
- Date
- 06/04/2018
- W/O
- 706877
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00242
- PipeID
- P25322
- Time
- 4:46 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5184
- Sewer Name
- 02 CLOVERLAWN TRUNK
- City
- SOUTH GATE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_706877_TV02041_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 02 1386
- Downstream MH
- H JOINT
- Dir. of Survey
- Downstream
- Length Surveyed
- 47.1 ft.
- Total Length
- 47.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

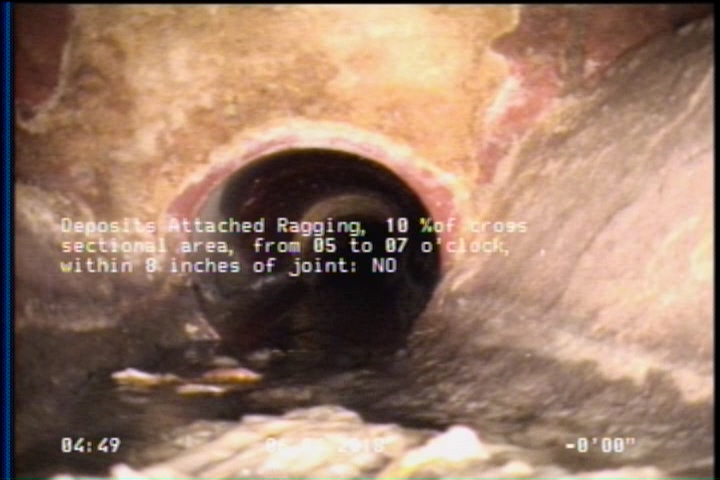

0 ft. - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO

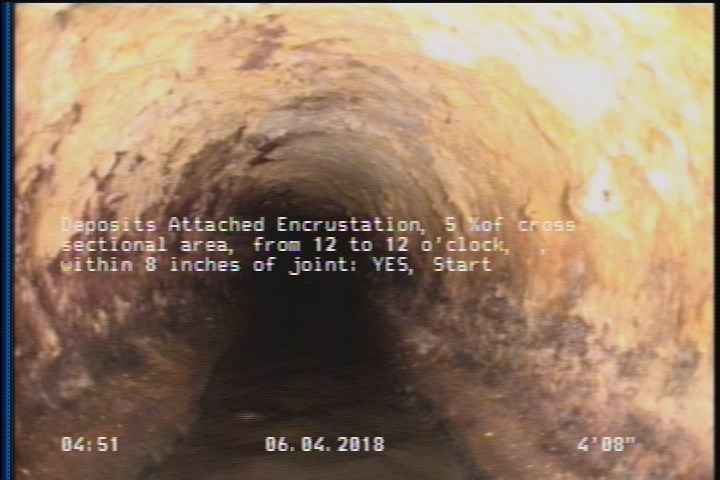

4.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES, Start

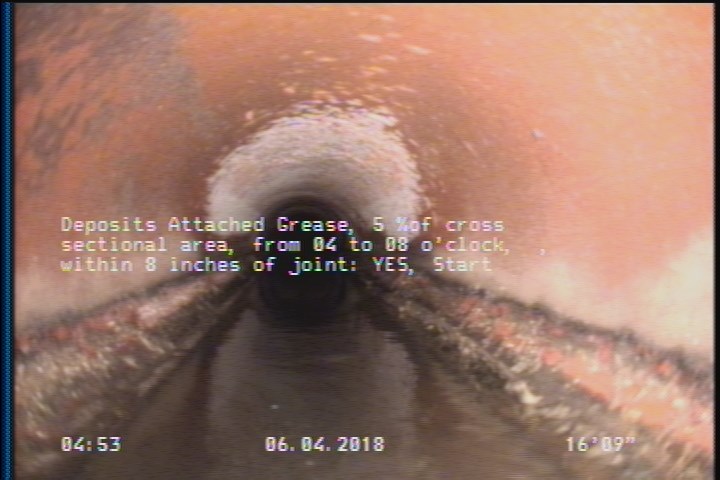

16.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

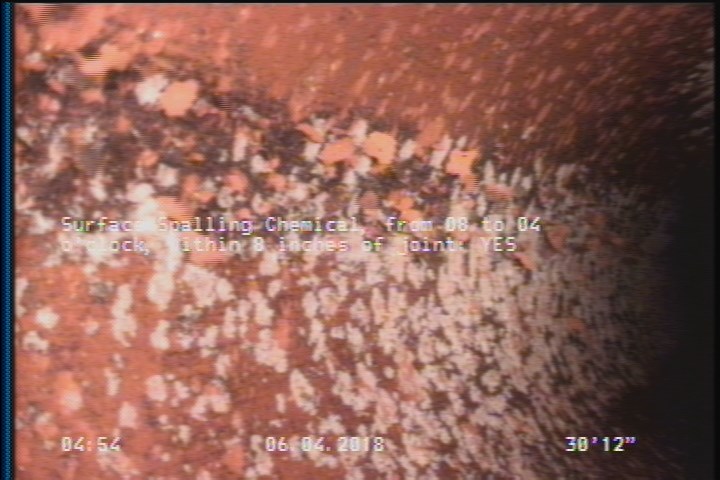

31 ft. - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 4.7 | DAE | — |
| 0 | AMH | 02 1386 |
| 16.8 | DAGS | — |
| 14.8 | DAE | — |
| 31 | SSSC | — |
| 47.1 | AMH | H JOINT CONNECTION |
| 0 | DAR | — |
| 47.1 | DAGS | — |
Properties (5)
- additional_info
- SC359506
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-04T04:46:59-07:00
- year_laid
- 38576
