Wastewater/Activity/PacpInspection/1.0May 2, 2018, 07:54 AM
02 0846_02 0845_02052018_010712.mp4
- Date
- 05/02/2018
- W/O
- 696299
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00296
- PipeID
- P03412
- Time
- 12:54 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5551
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD RELIEF TRUNK, SECTION 1
- City
- DOWNEY, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_696299_TV02088_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 0846
- Downstream MH
- 02 0845
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.9 ft.
- Total Length
- 334.9 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 1
Observation photos (2)

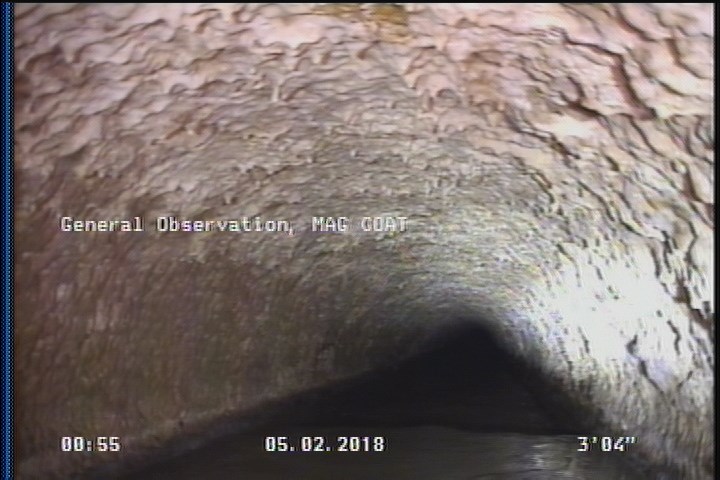

3.2 ft. - General Observation - MAG COAT

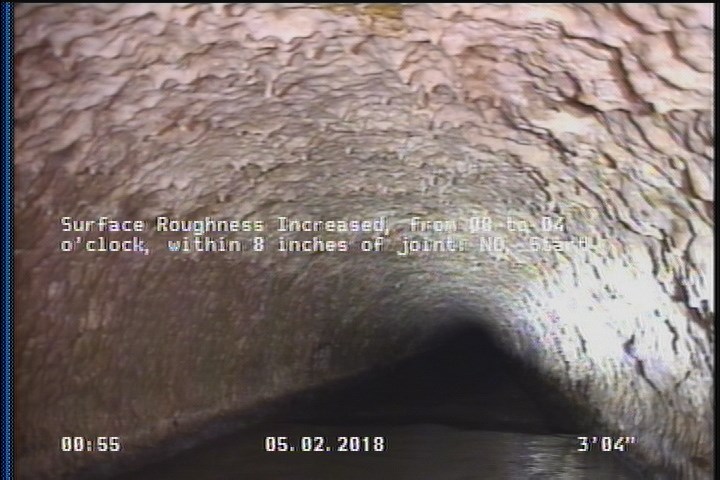

3.3 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 334.8 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | AMH | 02 0846 |
| 332.7 | SRI | — |
| 0 | MWM | — |
| 3.3 | SRI | — |
| 334.9 | AMH | 02 0845 |
| 0 | MWL | — |
| 3.2 | MGO | MAG COAT |
Properties (4)
- additional_info
- SC359156
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-02T00:54:18-07:00
