Wastewater/Activity/PacpInspection/1.0Jul 11, 2018, 03:43 PM
F 0186_F 0185_7112018_090911.mp4
- Date
- 07/11/2018
- W/O
- 0716534
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00046
- PipeID
- P10317
- Time
- 8:43 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7757
- Sewer Name
- F JOINT OUTFALL F - UNIT 7D
- City
- CERRITOS
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180711DF_JOINT_OUTFALL_F_UNIT_7D
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- F 0186
- Downstream MH
- F 0185
- Dir. of Survey
- Downstream
- Length Surveyed
- 443 ft.
- Total Length
- 443 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

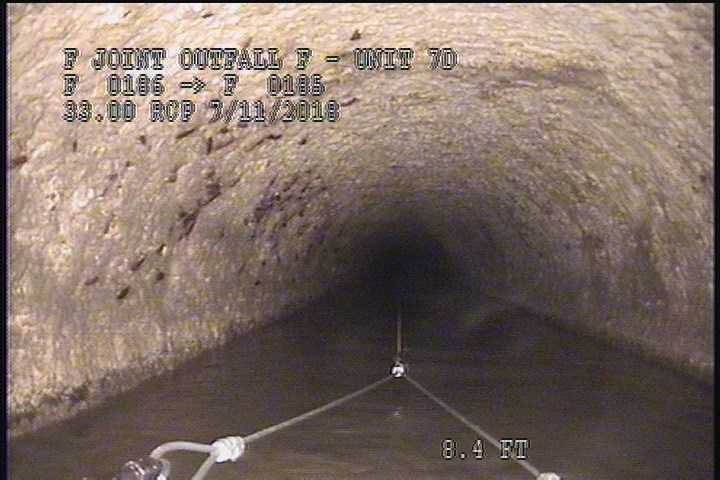

2.4 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG 90%

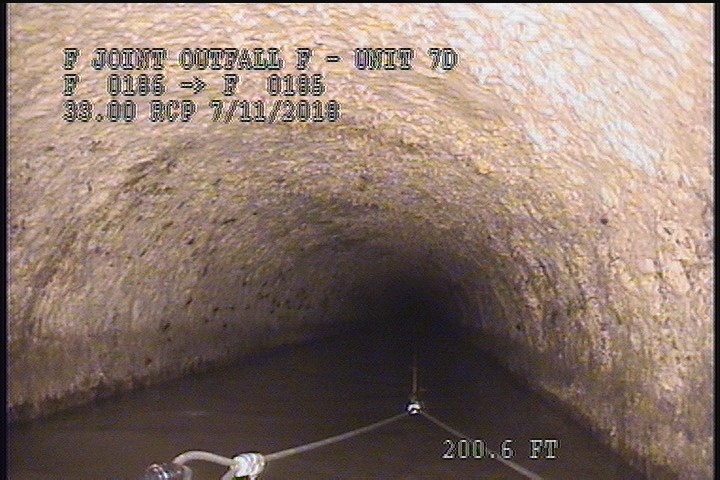

200.6 ft. - General Photograph

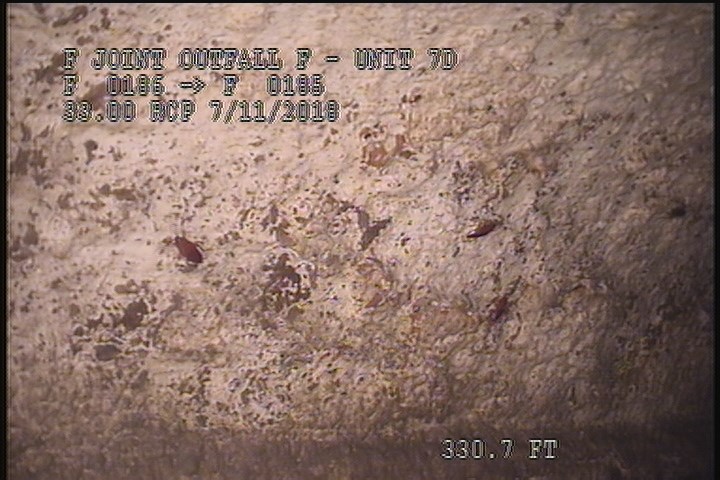

330.7 ft. - General Photograph

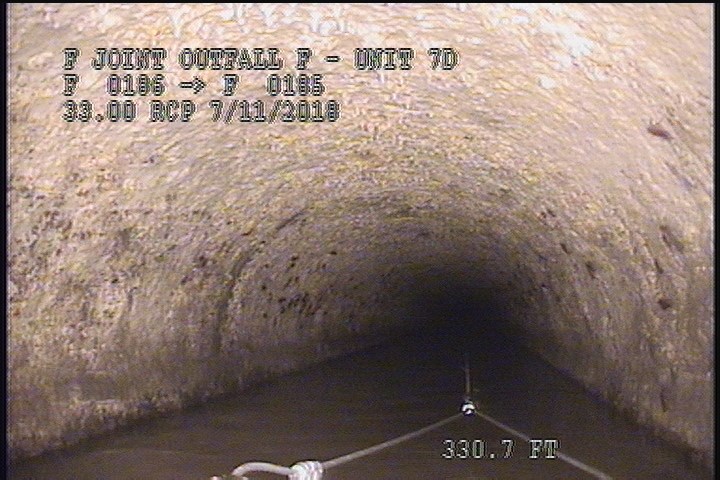

330.7 ft. - General Photograph
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 443 | AMH | 10:30 AM |
| 441 | MGO | ROACHES @ MH |
| 0 | AMH | 9:03 AM |
| 330.7 | MGP | — |
| 0.1 | MWM | — |
| 441.1 | SZ | 85% MAG |
| 0.1 | MWL | — |
| 2.4 | SZ | MAG 90% |
| 0.1 | SSS | — |
| 200.6 | MGP | — |
| 330.7 | MGP | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-07-11T08:43:41-07:00
