Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2018, 12:00 PM

  • F 0192_F 0191_7102018_050528.mp4

Date
07/10/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00046
PipeID
P10323
Time
5:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0928
Sewer Name
F JOINT OUTFALL F - UNIT 7D
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
37
Purpose
Capital Improvement Program Assesment
Project
20180710MDM_JOINT_OUTFALL_F_UNIT_7D
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
F 0192
Downstream MH
F 0191
Dir. of Survey
Downstream
Length Surveyed
335.4 ft.
Total Length
335.4 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole F 0192 to F 0191
MH: F 0192MH: F 0191downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MAG COAT 98% START 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT204.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG252.5 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG265.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG335 ft. MGO - General Observation - MAG COAT 98% FINISH335 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active335 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE UNDER MAG COAT335.4 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (4)

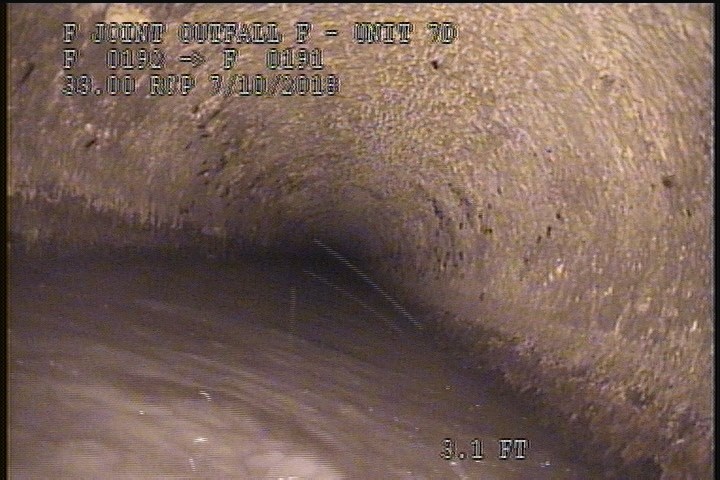

  • General Observation - MAG COAT 98% START 8:00 TO 4:00

    0 ft. - General Observation - MAG COAT 98% START 8:00 TO 4:00

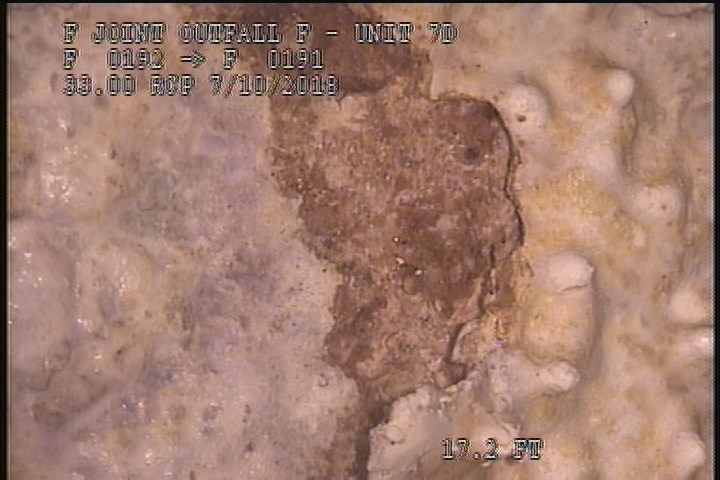

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

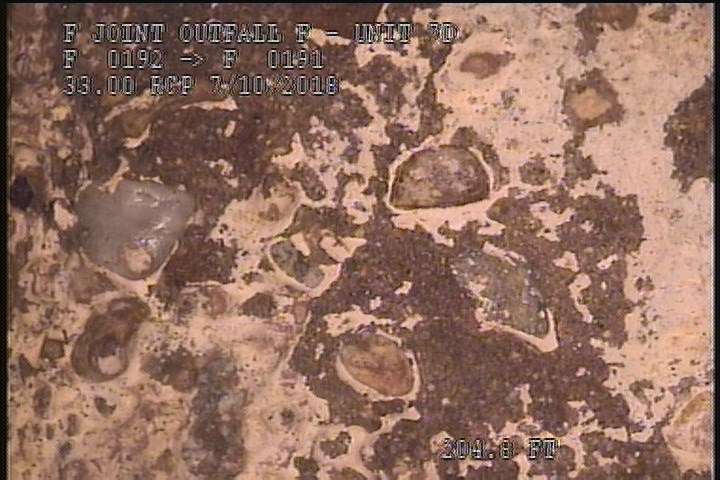

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    204.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

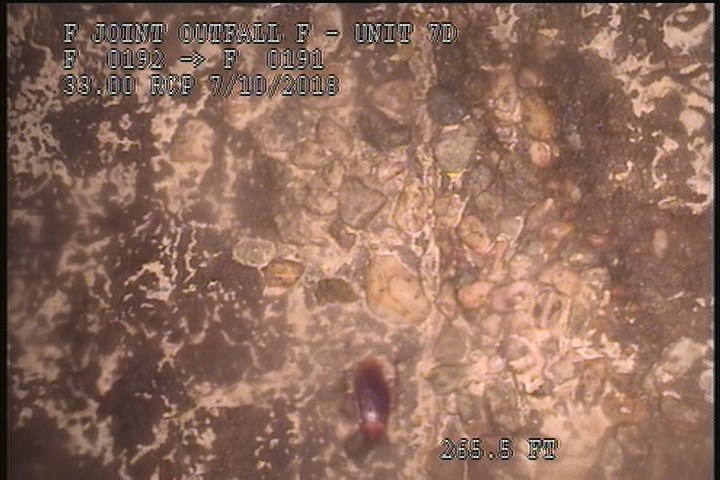

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    265.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

All inspections of P10323Work order #

Observations (12)

DistanceCodeObservation
0MWM—
265.5SAVSEVERE AGG
335MGOMAG COAT 98% FINISH
0AMH5:10AM
0MWL—
252.5SAVSEVERE AGG
204.8SAVSEVERE AGG
2SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
335MGOConn. @ Mh, 9 O' Clock. Active
335SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
335.4AMH5:35AM
0MGOMAG COAT 98% START 8:00 TO 4:00

Properties (4)

custom_field_three
VISIBLE SEVERE AGG-98% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-10T05:00:58-07:00
