Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2018, 05:24 PM

  • 29 0098_29 0097_762018_104400.mp4

Date
07/06/2018
W/O
0711161
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00273
PipeID
P23881
Time
10:24 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7754
Sewer Name
29 33RD STREET SEWER
City
33RD ST
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20180706SHO_33RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0097
Downstream MH
29 0098
Dir. of Survey
Upstream
Length Surveyed
253.1 ft.
Total Length
253.1 ft.
Structural Index
3
Structural Quick
5142
Structural Rating
46
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
46
Pipe schematic from manhole 29 0097 to 29 0098
MH: 29 0097MH: 29 0098upstream0 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"0 ft. MGP - General Photograph - HOLE0 ft. MGP - General Photograph - HOLE0 ft. AMH - Upstream Manhole, Survey Ends - BEGINNING OF THE LINE0 ft. HVV - Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: YES2.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"5.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"35.6 ft. CS - Crack Spiral, from 08 to 05 o'clock, within 8 inches of joint: YES41.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"53.1 ft. CS - Crack Spiral, from 12 to 01 o'clock, within 8 inches of joint: YES55.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES56 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.7 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES87.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES94.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"97.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish99.2 ft. FM - Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES108.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start117.1 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES121.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"132.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"133.4 ft. FM - Fracture Multiple, from 12 to 08 o'clock, within 8 inches of joint: YES134.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish146.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start156.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.5 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES159 ft. CS - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES180.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"184.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES205.5 ft. FS - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES206.2 ft. SSS - Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: YES207.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"222.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"229.7 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES238.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"249.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES253.1 ft. AMH - Downstream Manhole, Survey Begins - MH 98253.1 ft. MWL - Water Level, 10 %of cross sectional area253.1 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (7)

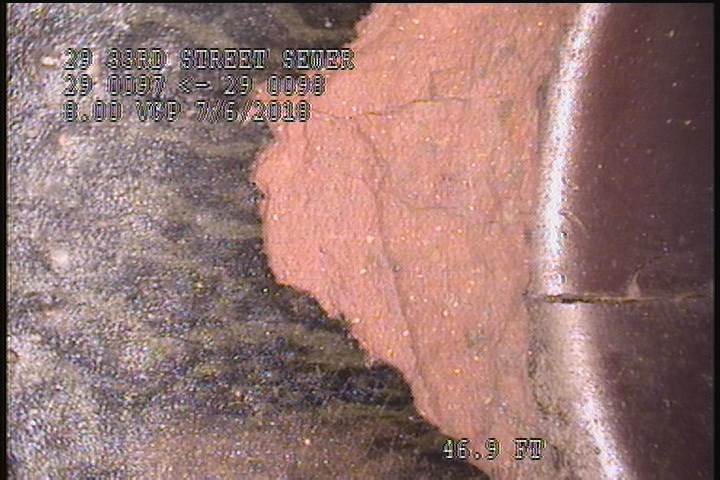

  • Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: YES

    46.9 ft. - Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: YES

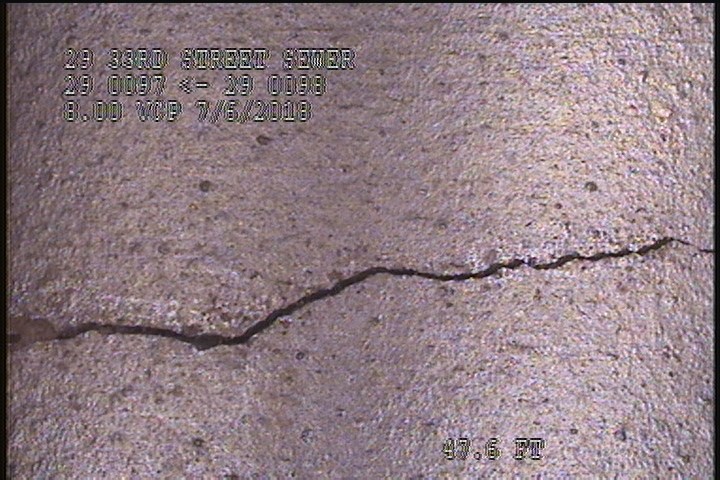

  • Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

    47.6 ft. - Fracture Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

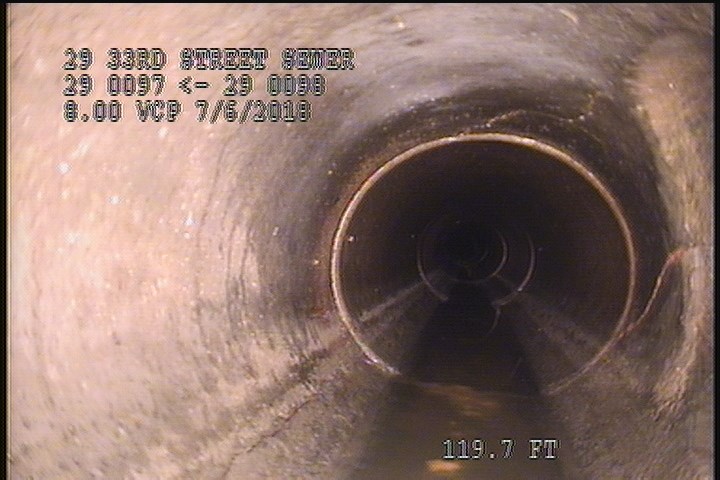

  • Fracture Multiple, from 12 to 08 o'clock, within 8 inches of joint: YES

    119.7 ft. - Fracture Multiple, from 12 to 08 o'clock, within 8 inches of joint: YES

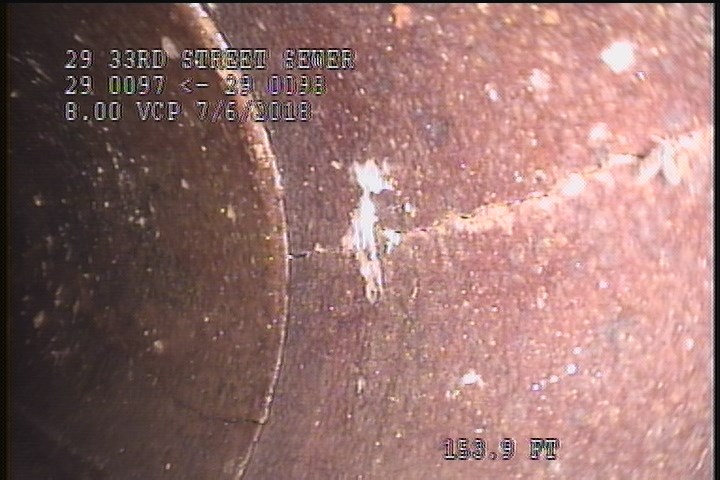

  • Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    153.9 ft. - Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

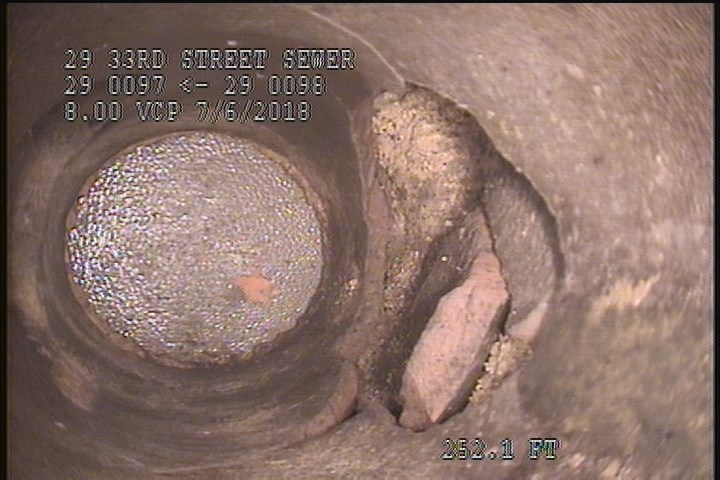

  • General Photograph - HOLE

    253.1 ft. - General Photograph - HOLE

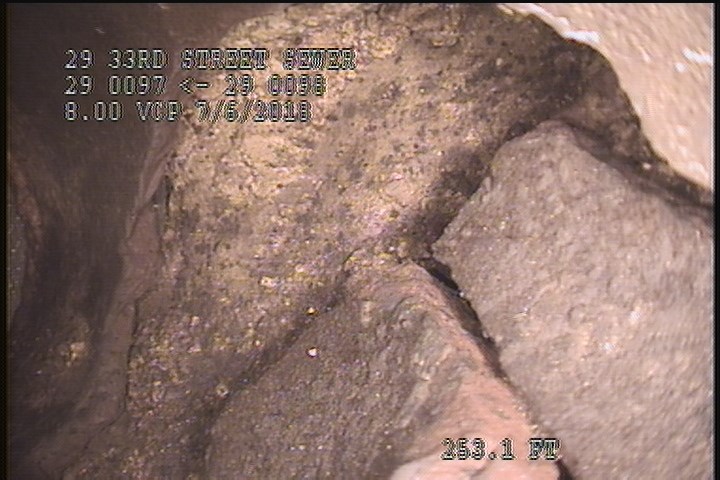

  • General Photograph - HOLE

    253.1 ft. - General Photograph - HOLE

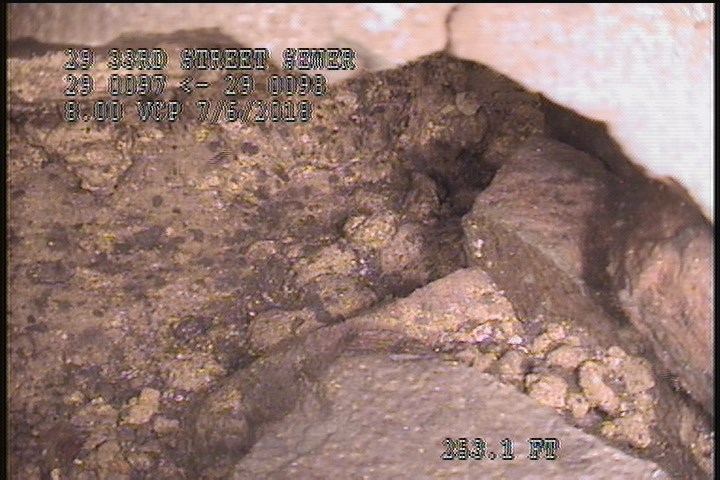

  • Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: YES

    253.1 ft. - Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: YES

All inspections of P23881Work order 0711161

Observations (40)

DistanceCodeObservation
96.4TFA—
158.3TFA—
106.4CL—
253.1TF—
118.5CL—
153.9CL—
94.1CS—
197.9CL—
197.1TFA—
45.8TFA—
46.9SSS—
23.4CL—
155.6TFA—
94.6CL—
31TFC—
68.2CL—
131.5TFA—
47.6FS—
0AMHMH 98
4CL—
253.1MGPHOLE
119.7FM—
153.9FM—
183.4CM—
253.1MGPHOLE
200CS—
136CM—
14.4TFA—
72.7TFA—
217.5CS—
0MWL—
247.4TFC—
253.1AMHBEGINNING OF THE LINE
144.7CL—
0MWM—
253.1HVV—
165.3CL—
250.2TFC—
120.3TFA—
211.7TFA—

Properties (4)

custom_field_three
HOLE IN THE PIPE
custom_field_two
1
customer
LACSD
datetime
2018-07-06T10:24:00-07:00
