Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 04:53 PM
18 0853_18 0852_732018_101404.mp4
- Date
- 07/03/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00709
- PipeID
- P14708
- Time
- 9:53 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0921
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180703SHO_SOUTH_WHITTIER_OUTFALL_RELIEF_TRUNK_SECTIONS_12A2B2C3
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Upstream MH
- 18 0853
- Downstream MH
- 18 0852
- Dir. of Survey
- Downstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

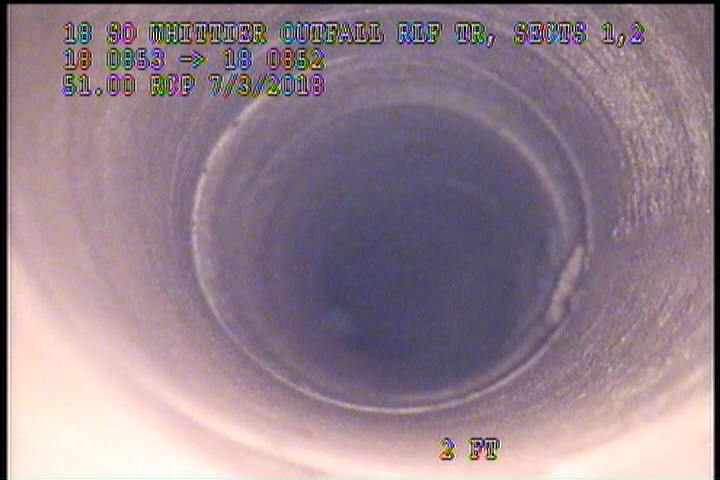

2 ft. - General Observation - VIEW OF THE NORTH AIRLINE

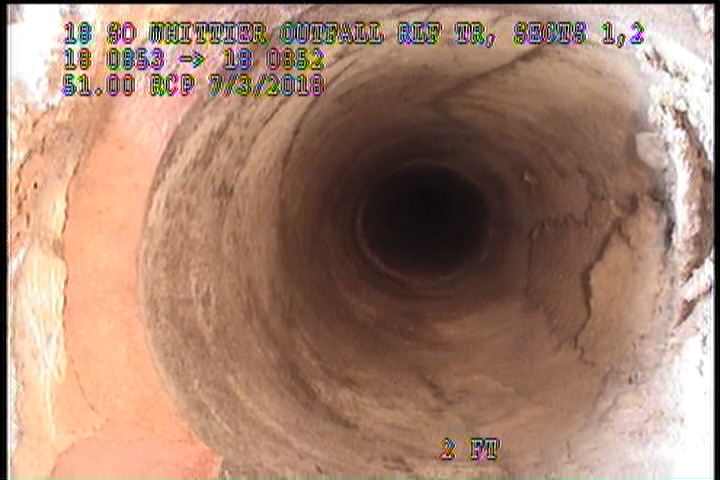

2 ft. - General Observation - VIEW OF THE SOUTH AIRLINE

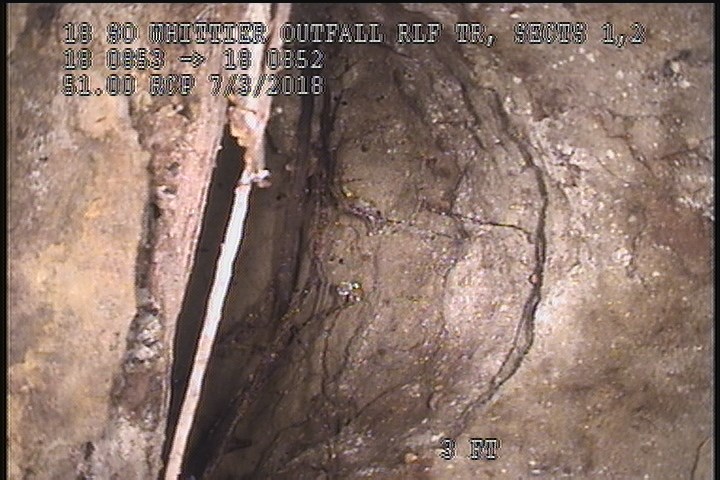

3 ft. - Surface Missing Wall, from 10 to 02 o'clock, within 8 inches of joint: YES - VOID VISIBLE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | VIEW OF THE NORTH AIRLINE |
| 0 | AMH | MH 853 |
| 0 | MWL | DOWNLEG OF THE SIPHON |
| 3 | SMW | VOID VISIBLE |
| 3 | MSA | COMPLETED THE INSPECTION OF THE VOID @ THE DOWNLEG OF THE SIPHON |
| 0 | MWL | DOWNLEG OF THE SIPHON |
| 2 | MGO | VIEW OF THE SOUTH AIRLINE |
Properties (5)
- additional_info
- LOOKING AT MISSING WALL ON THE CROWN OF THE DOWNLEG OF THE SIPHON
- custom_field_three
- MISSING WALL W/ VOID
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2018-07-03T09:53:25-07:00
