Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 03:55 PM

  • 05 1840_05 1839_732018_092453.mp4

Date
07/03/2018
W/O
0712435
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00494
PipeID
P07062
Time
8:55 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7749
Sewer Name
05 NORTH SLOPE CONNECTION TRUNK
City
LOMITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
36
Purpose
Routine Assessment
Project
20180703DF_NORTH_SLOPE_CONN_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 1840
Downstream MH
05 1839
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 05 1840 to 05 1839
MH: 05 1840MH: 05 1839downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:21 AM0.1 ft. MWL - Water Level, 100 %of cross sectional area0.1 ft. MWM - Water Mark, 100 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. LD - Alignment Down, 45 %2.1 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (3)

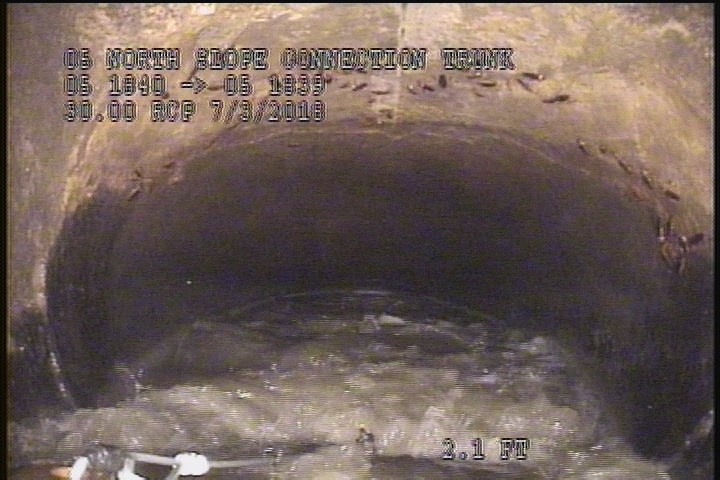

  • Upstream Manhole, Survey Begins - 9:21 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:21 AM

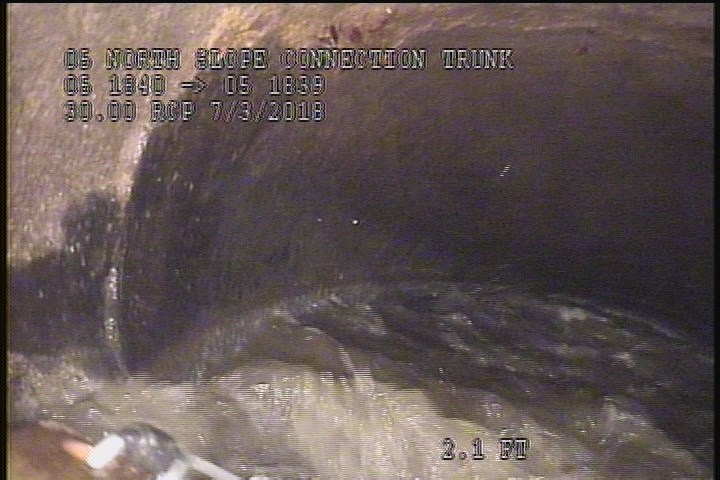

  • Water Mark, 100 %of cross sectional area

    0.1 ft. - Water Mark, 100 %of cross sectional area

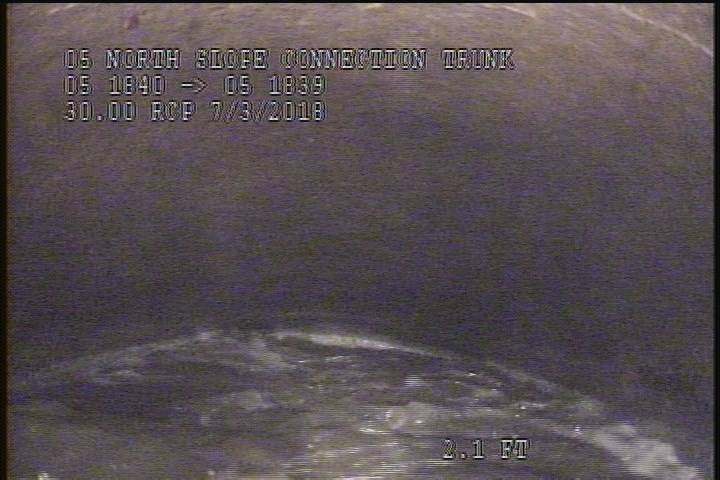

  • Survey Abandoned - HIGH WATER

    2.1 ft. - Survey Abandoned - HIGH WATER

All inspections of P07062Work order 0712435

Observations (7)

DistanceCodeObservation
2SSS—
0AMH9:21 AM
0.1MWL—
0.1MWM—
2LD—
2.1MSAHIGH WATER
0.1MGOROACHES @ MH

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2018-07-03T08:55:24-07:00
