Wastewater/Activity/PacpInspection/1.0Jun 29, 2018, 07:35 PM
19 0267_19 0266_6292018_131716.mp4
- Date
- 06/29/2018
- W/O
- 0712093
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00733
- PipeID
- P15237
- Time
- 12:35 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0913
- Sewer Name
- 19 219TH STREET TRUNK
- City
- HAWAIIAN GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 06
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180629SHO_219TH_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 19 0267
- Downstream MH
- 19 0266
- Dir. of Survey
- Downstream
- Length Surveyed
- 272.7 ft.
- Total Length
- 272.7 ft.
- Structural Index
- 3
- Structural Quick
- 5141
- Structural Rating
- 16
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (5)

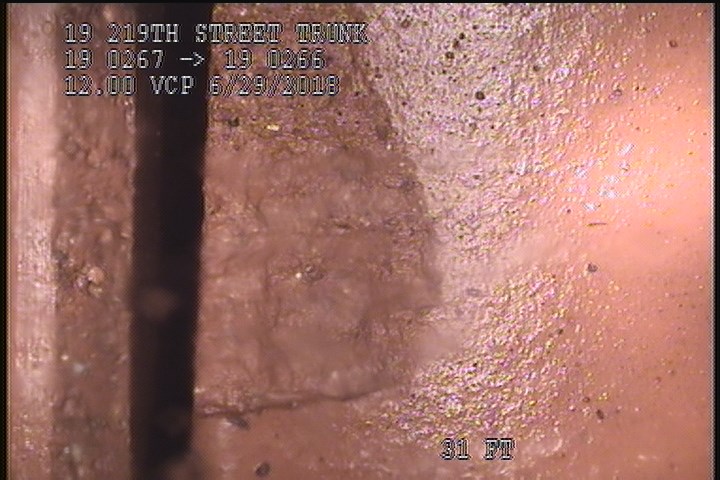

31 ft. - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES

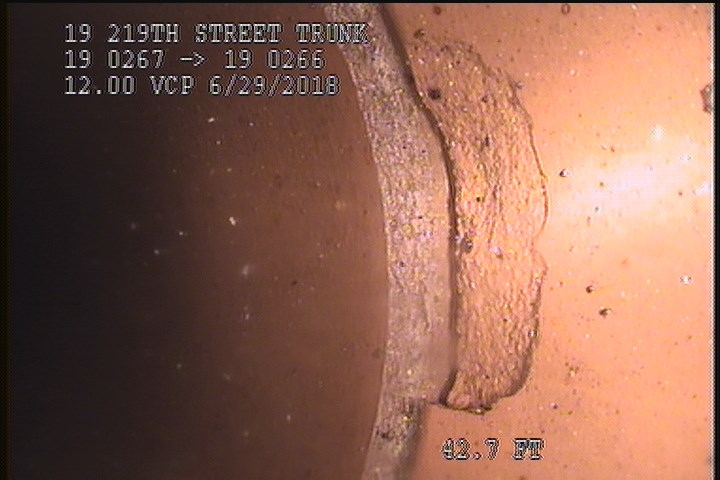

42.7 ft. - Surface Spalling, at 12 o'clock, within 8 inches of joint: YES

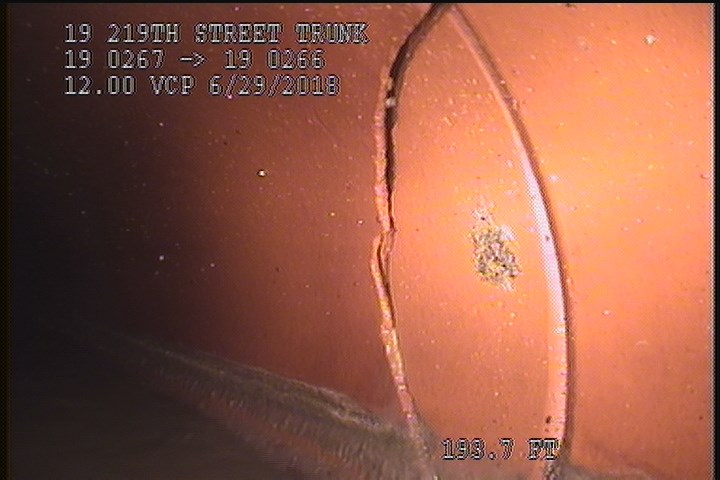

193.7 ft. - Broken, from 02 to 05 o'clock, within 8 inches of joint: YES

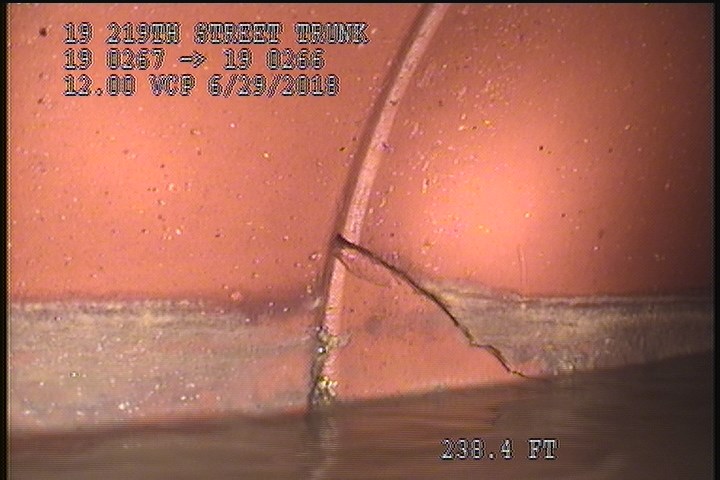

238.4 ft. - Fracture Spiral, from 08 to 09 o'clock, within 8 inches of joint: YES

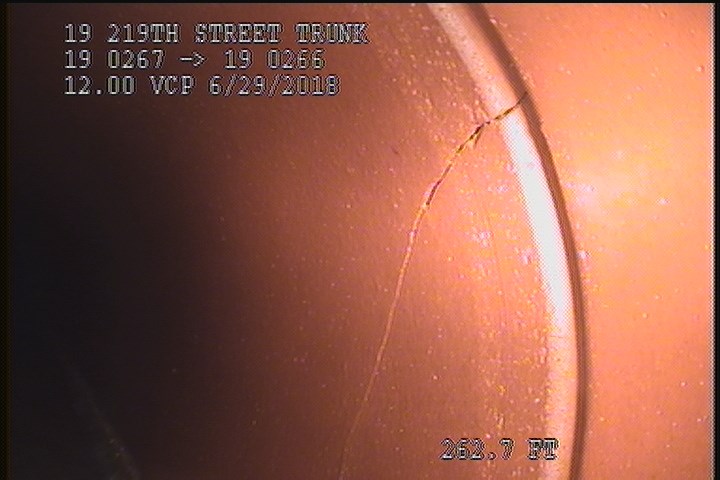

262.7 ft. - Fracture Multiple, from 12 to 05 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 272.7 | AMH | 0135 |
| 0 | MWL | — |
| 193.7 | B | — |
| 0 | MWM | — |
| 0 | MGO | TWO ACTIVE CONNECTIONS IN THE MH @ 3 & 9 |
| 0 | AMH | 0100 |
| 31 | SSS | — |
| 269.8 | MGO | 5% OR LESS GREASE THROUGHOUT |
| 262.7 | FM | — |
| 238.4 | FS | — |
| 42.7 | SSS | — |
Properties (5)
- additional_info
- RFIR
- custom_field_three
- BROKEN PIPE & FRACTURES
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-29T12:35:45-07:00
