Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 29, 2018, 03:35 PM

  • 02 2328_02 2327_6292018_083707.mp4

Date
06/29/2018
W/O
0712243
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00896
PipeID
P20958
Time
8:35 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7745
Sewer Name
02 ARTHUR AVENUE TRUNK
City
PARAMOUNT
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
31
Purpose
Routine Assessment
Project
20180629DF_ARTHUR_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 2328
Downstream MH
02 2327
Dir. of Survey
Downstream
Length Surveyed
301.3 ft.
Total Length
301.3 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 2328 to 02 2327
MH: 02 2328MH: 02 2327downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:36 AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start74.2 ft. MGP - General Photograph93.6 ft. MGP - General Photograph201.1 ft. MGP - General Photograph266.3 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Start289.3 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Finish296.9 ft. MGP - General Photograph299.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish301.3 ft. AMH - Downstream Manhole, Survey Ends - 8:57 AM301.3 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (6)

  • General Observation - ROACHES @ MH

    0 ft. - General Observation - ROACHES @ MH

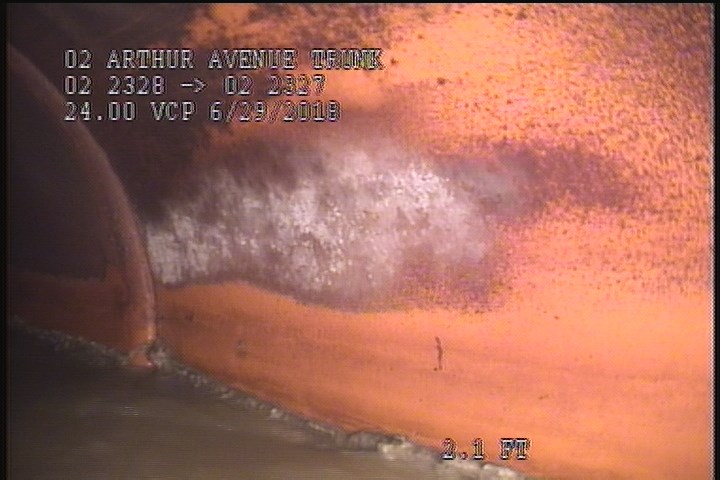

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

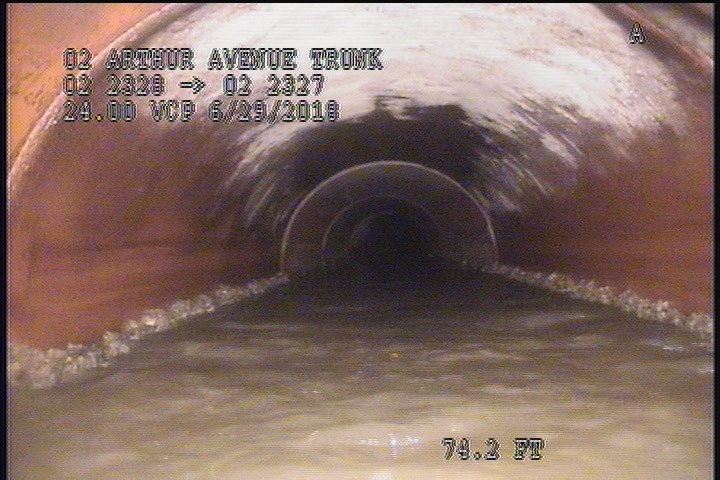

  • General Photograph

    74.2 ft. - General Photograph

  • General Photograph

    93.6 ft. - General Photograph

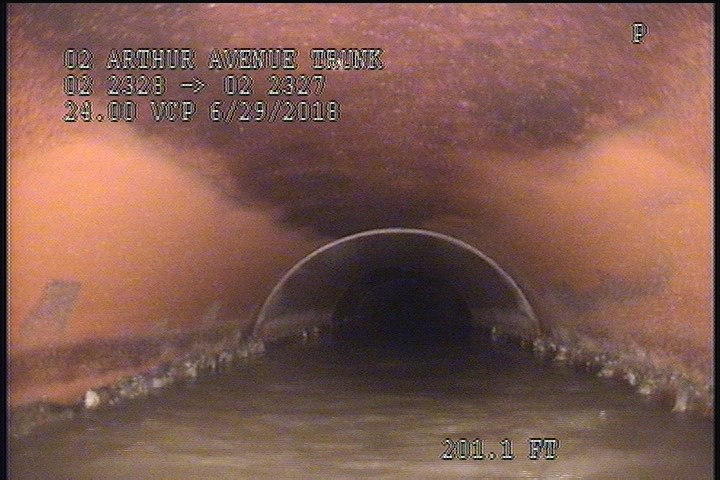

  • General Photograph

    201.1 ft. - General Photograph

  • General Photograph

    296.9 ft. - General Photograph

All inspections of P20958Work order 0712243

Observations (14)

DistanceCodeObservation
301.3AMH8:57 AM
0MGOROACHES @ MH
201.1MGP—
2SSS—
0MWM—
289.3MWLS—
0AMH8:36 AM
301.3MGOGrease Throughout The Reach (5%)
266.3MWLS—
74.2MGP—
0MWL—
296.9MGP—
299.9SSS—
93.6MGP—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-06-29T08:35:03-07:00
