Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 09:34 AM
18 0050_18 0049 _01062018_024541.mp4
- Date
- 06/01/2018
- W/O
- 707282
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00689
- PipeID
- P13865
- Time
- 2:34 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5632
- Sewer Name
- 18 MILLS AVENUE TRUNK
- City
- WHITTTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_707282_TV18176_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0050
- Downstream MH
- 18 0049
- Dir. of Survey
- Downstream
- Length Surveyed
- 193.3 ft.
- Total Length
- 193.3 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

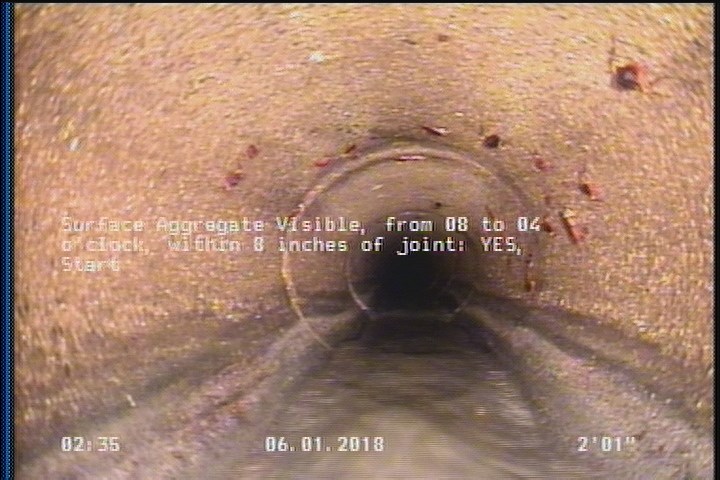

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

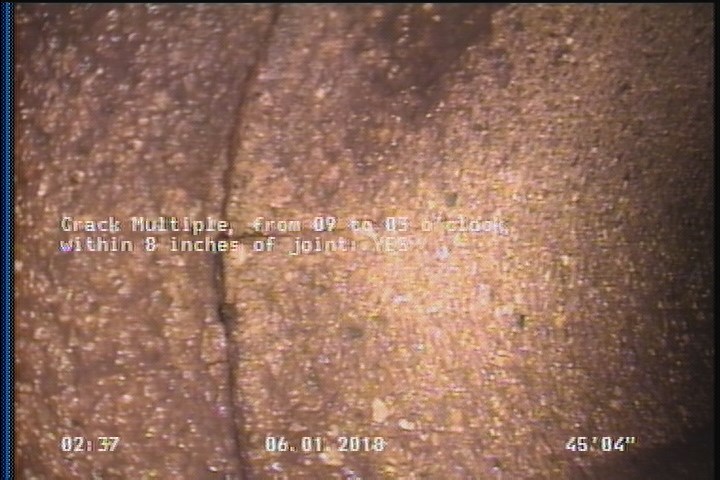

45.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

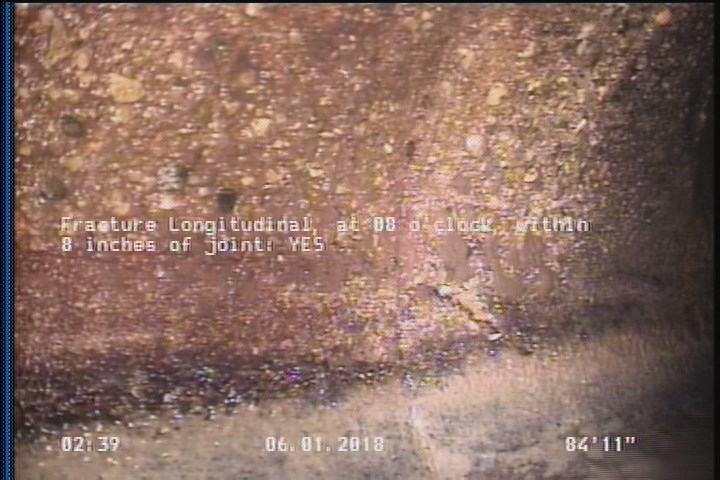

84.9 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES

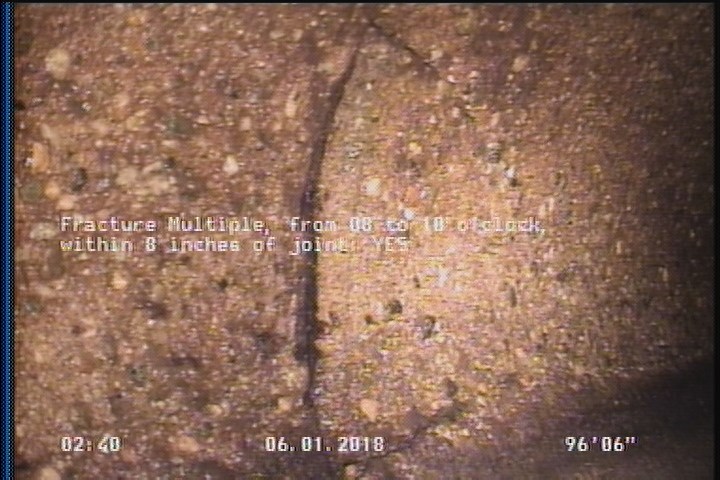

96.5 ft. - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 193.3 | MGO | CONNECTION AT MH 9 OCLOCK |
| 2.1 | SAV | — |
| 0 | MWL | — |
| 149.8 | TF | — |
| 96.5 | FM | — |
| 28.4 | TF | — |
| 45.3 | CM | — |
| 84.9 | FL | — |
| 86 | TF | — |
| 0 | AMH | 18 0050 |
| 193.3 | MGO | CONNECTION AT MH 3 OCLOCK |
| 190.8 | SAV | — |
| 80 | TF | — |
| 0 | MWM | — |
| 193.3 | AMH | 18 0049 |
Properties (4)
- additional_info
- SC359187
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-01T02:34:06-07:00
