Wastewater/Activity/PacpInspection/1.0Jun 4, 2018, 11:36 AM
20 0275_20 0274_04062018_044744.mp4
- Date
- 06/04/2018
- W/O
- 707089
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00751
- PipeID
- P19241
- Time
- 4:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5717
- Sewer Name
- 20 20TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_707089_TV20025_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 20 0275
- Downstream MH
- 20 0274
- Dir. of Survey
- Downstream
- Length Surveyed
- 372.8 ft.
- Total Length
- 372.8 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 222
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 148
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 370
Observation photos (2)

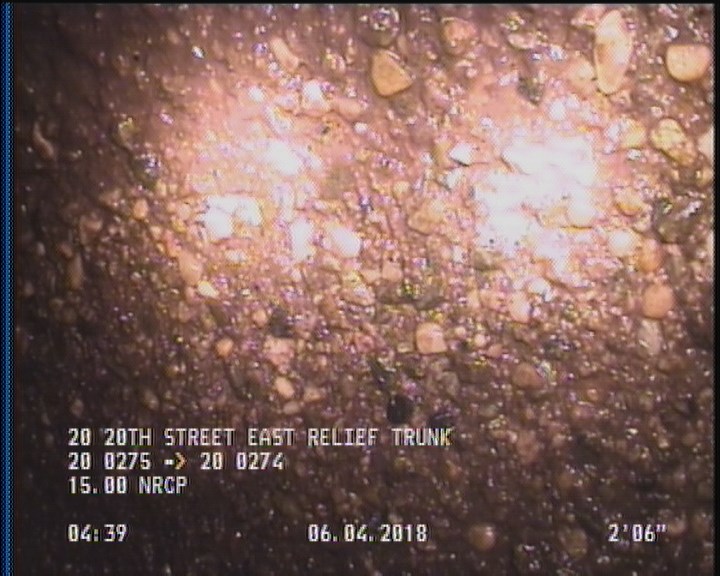

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

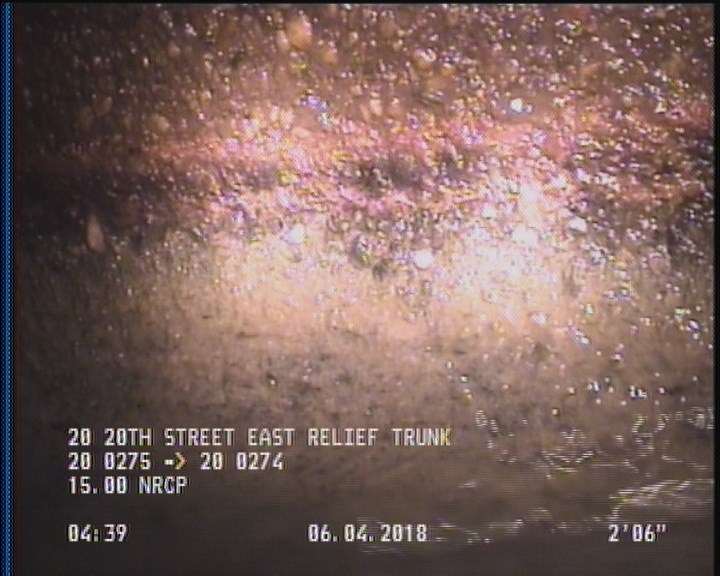

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 372.8 | AMH | 20 0274 |
| 0 | MWM | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 371 | SAP | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 371 | DAGS | — |
| 2 | DAGS | — |
| 372.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 20 0275 |
Properties (4)
- additional_info
- SC359383
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-04T04:36:17-07:00
