Wastewater/Activity/PacpInspection/1.0Jun 5, 2018, 08:16 AM
20 0288_20 0287 _05062018_013132.mp4
- Date
- 06/05/2018
- W/O
- 707089
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00751
- PipeID
- P19254
- Time
- 1:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5718
- Sewer Name
- 20 20TH STREET EAST RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_707089_TV20025_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 20 0288
- Downstream MH
- 20 0287
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.5 ft.
- Total Length
- 334.5 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 198
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 330
Observation photos (2)

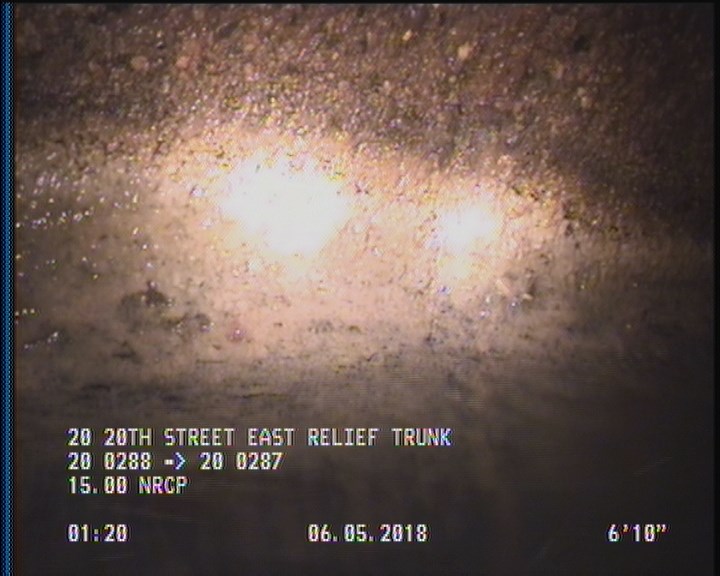

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

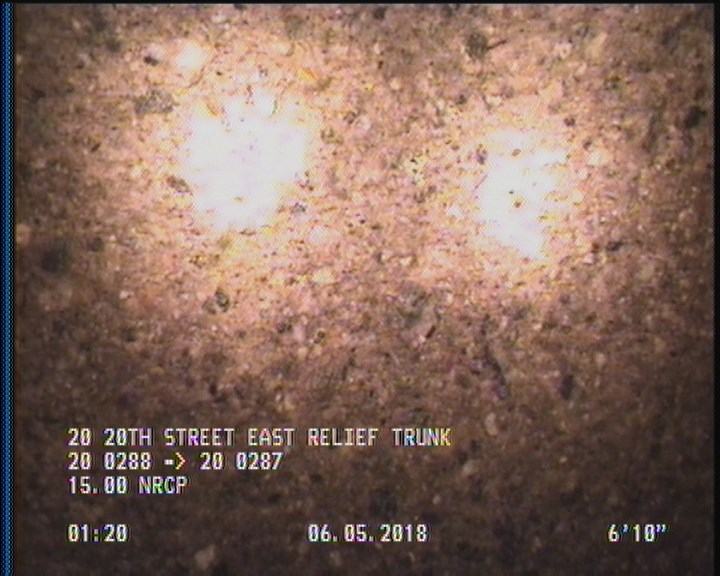

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (21)
| Distance | Code | Observation |
|---|---|---|
| 20.6 | TFC | — |
| 0 | AMH | 20 0288 |
| 252.5 | TFC | — |
| 334.5 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 334.5 | AMH | 20 0287 |
| 334.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 195.6 | TFC | — |
| 53.5 | TFC | — |
| 232.1 | TFA | — |
| 332.9 | DAGS | — |
| 126.3 | TFA | — |
| 0 | MWL | — |
| 101.9 | TFC | — |
| 41.3 | MGO | MAG COATING THROUGHOUT 80% |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOCK |
| 151.2 | TFC | — |
| 2 | SAP | — |
| 332.9 | SAP | — |
| 0 | MWM | — |
| 304.8 | TFC | — |
Properties (4)
- additional_info
- SC359384
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-05T01:16:59-07:00
