Wastewater/Activity/PacpInspection/1.0Jun 11, 2018, 08:37 AM
A 0814_A 0813 _11062018_015249.mp4
- Date
- 06/11/2018
- W/O
- 707026
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00325
- PipeID
- P08314
- Time
- 1:37 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5693
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_707026_TV15209_JUN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- A 0814
- Downstream MH
- A 0813
- Dir. of Survey
- Downstream
- Length Surveyed
- 145.8 ft.
- Total Length
- 145.8 ft.
- Structural Index
- 3
- Structural Quick
- 573E
- Structural Rating
- 119
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 119
Observation photos (2)

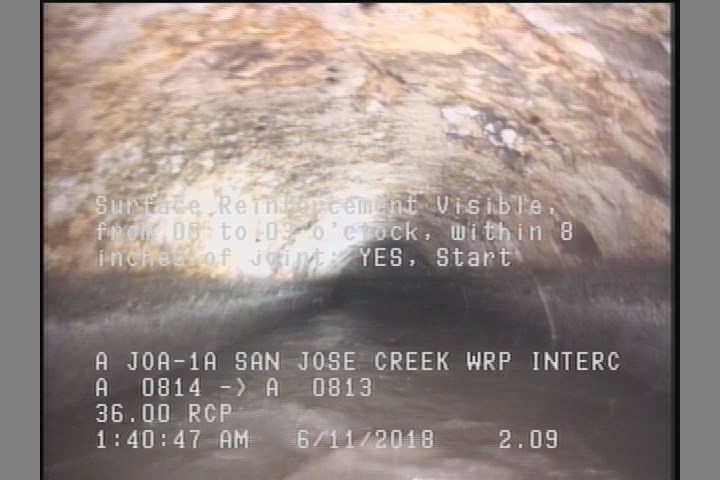

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

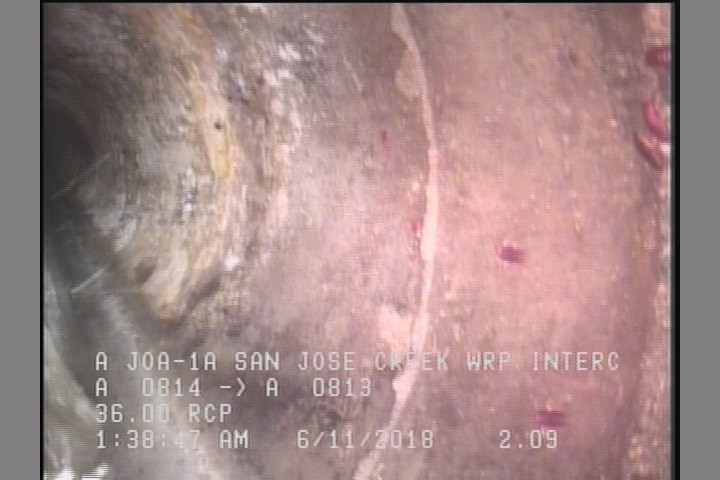

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | A 0814 |
| 37.1 | SRV | — |
| 2.1 | SRV | — |
| 141.2 | SAP | — |
| 2.1 | SAP | — |
| 145.8 | AMH | A 0813 |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359651
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-11T01:37:33-07:00
- year_laid
- 29427
