Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 13, 2018, 07:35 AM

  • 15 0724_15 0723 _13062018_004547.mp4

Date
06/13/2018
W/O
707008
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00616
PipeID
P12617
Time
12:35 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5192
Sewer Name
15 MONROVIA OUTFALL TRUNK
City
MONROVIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
09
Purpose
Routine Assessment
Project
WO_707008_TV15131_JUN2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
15 0724
Downstream MH
15 0723
Dir. of Survey
Downstream
Length Surveyed
163.9 ft.
Total Length
163.9 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 15 0724 to 15 0723
MH: 15 0724MH: 15 0723downstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 07244.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.5 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - MAGNEZIUM H.O COATING start4.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start92.1 ft. SRV - Surface Reinforcement Visible, from 03 to 05 o'clock, within 8 inches of joint: NO161.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish161.7 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish161.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish163.9 ft. AMH - Downstream Manhole, Survey Ends - 15 0723163.9 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH

Observation photos (4)

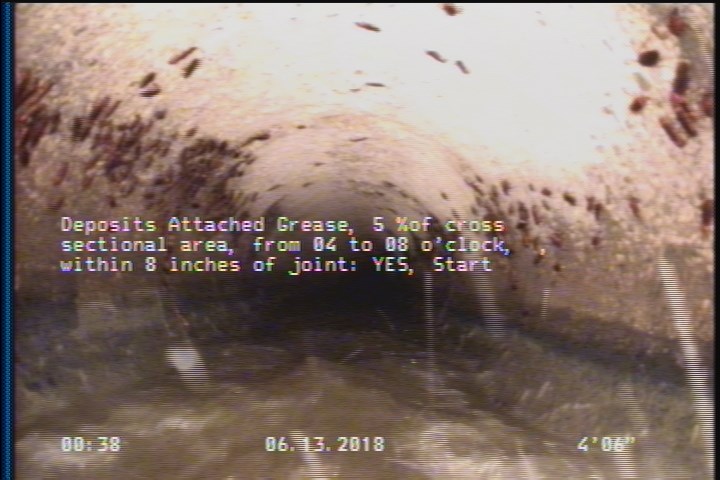

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

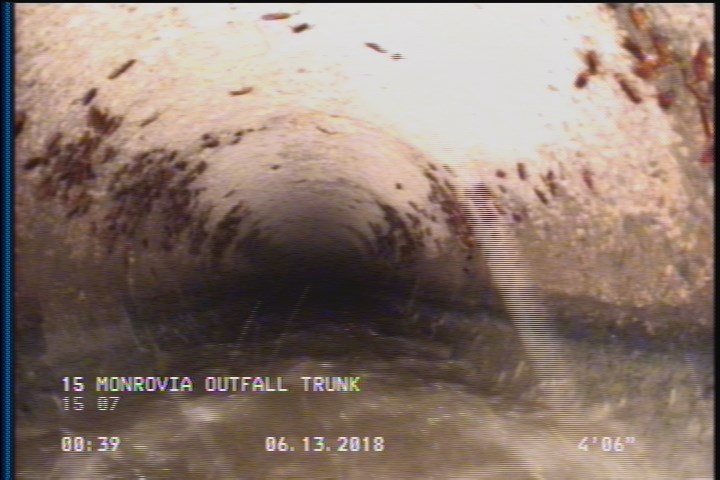

  • Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - MAGNEZIUM H.O COATING start

    4.5 ft. - Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - MAGNEZIUM H.O COATING start

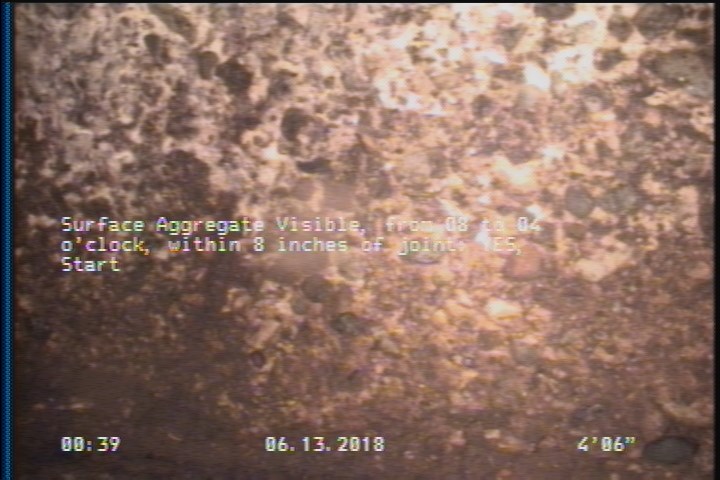

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

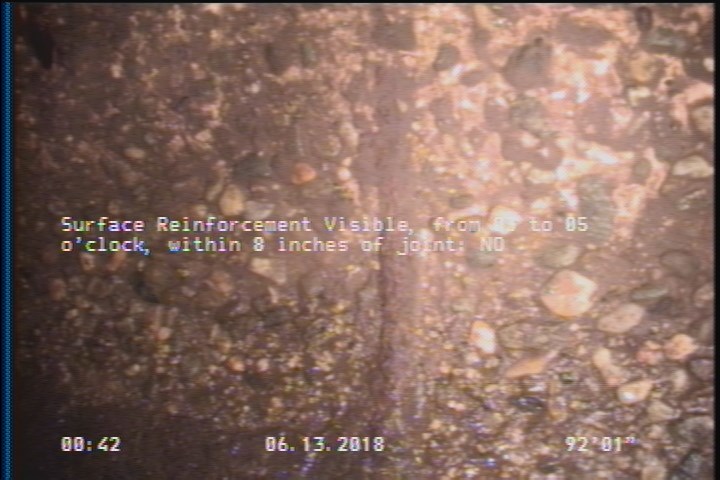

  • Surface Reinforcement Visible, from 03 to 05 o'clock, within 8 inches of joint: NO

    92.1 ft. - Surface Reinforcement Visible, from 03 to 05 o'clock, within 8 inches of joint: NO

All inspections of P12617Work order 707008

Observations (13)

DistanceCodeObservation
4.5DAGS—
92.1SRV—
163.9AMH15 0723
161.7DAGS—
163.9MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
161.7DAZ—
0MWM—
4.5DAZMAGNEZIUM H.O COATING start
0MWL—
0AMH15 0724
161.7SAV—
4.5SAV—

Properties (4)

additional_info
SC359515
custom_field_two
2
customer
LACSD
datetime
2018-06-13T00:35:25-07:00
