Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2018, 08:13 AM

  • 05 1263_05 1262 _15062018_013728.mp4

Date
06/15/2018
W/O
706881
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00518
PipeID
P06474
Time
1:13 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5731
Sewer Name
05 SO HAWTHORNE-WARFIELD AV EXT TR, SECT 4
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
19
Purpose
Routine Assessment
Project
WO_706881_TV05332_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1263
Downstream MH
05 1262
Dir. of Survey
Downstream
Length Surveyed
341.2 ft.
Total Length
341.2 ft.
Structural Index
3
Structural Quick
4C3I
Structural Rating
220
O&M Index
2
O&M Quick
2M00
O&M Rating
138
Overall Index
3
Overall Quick
—
Overall Rating
358
Pipe schematic from manhole 05 1263 to 05 1262
MH: 05 1263MH: 05 1262downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 12630 ft. MWM - Water Mark, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start70.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"74.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"129.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"170.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish170.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start196.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"196.2 ft. B - Broken, from 12 to 02 o'clock, within 8 inches of joint: YES196.2 ft. RFB - Roots Fine Barrell, from 12 to 03 o'clock, within 8 inches of joint: YES260.6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish264.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start272.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"296.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"340 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish341.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish341.2 ft. AMH - Downstream Manhole, Survey Ends - 05 1262341.2 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (6)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    170.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Broken, from 12 to 02 o'clock, within 8 inches of joint: YES

    196.2 ft. - Broken, from 12 to 02 o'clock, within 8 inches of joint: YES

  • Roots Fine Barrell, from 12 to 03 o'clock, within 8 inches of joint: YES

    196.2 ft. - Roots Fine Barrell, from 12 to 03 o'clock, within 8 inches of joint: YES

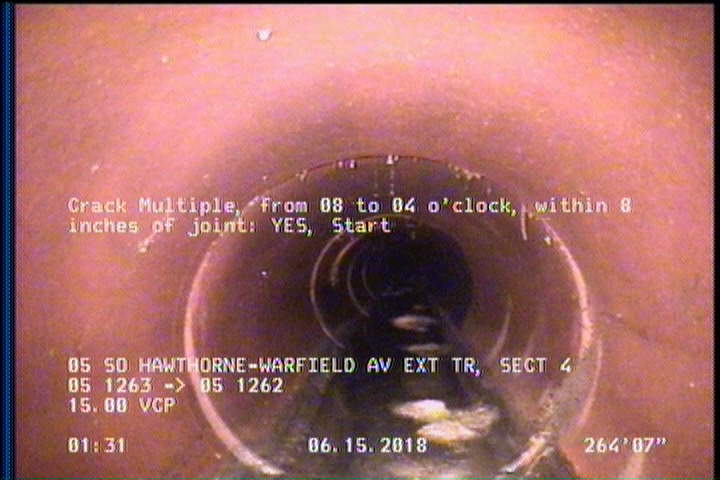

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    264.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06474Work order 706881

Observations (22)

DistanceCodeObservation
74.8TFA—
170.1CM—
196.2TBA—
341.2DAGS—
272.8TFC—
70.8TFC—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
260.6FM—
2DAGS—
129.4TBA—
196.2B—
341.2AMH05 1262
341.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
264.3CM—
296.7TFC—
0MWL—
0AMH05 1263
170.1FM—
196.2RFB—
4.3CM—
0MWM—
340CM—
