Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 10:17 AM
02 0949_02 0948 _07062018_033137.mp4
- Date
- 06/07/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J, BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03518
- Time
- 3:17 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5188
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- BELL GARDENS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0948
- Downstream MH
- 02 0949
- Dir. of Survey
- Upstream
- Length Surveyed
- 326.3 ft.
- Total Length
- 326.3 ft.
- Structural Index
- 1
- Structural Quick
- 1300
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)
3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

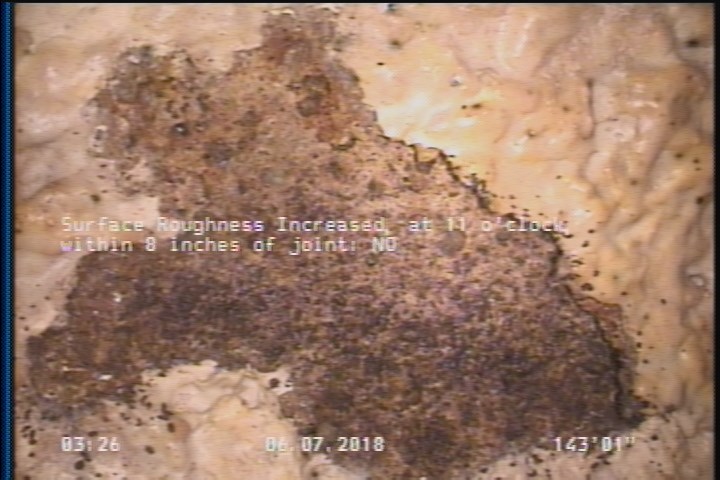

143 ft. - Surface Roughness Increased, at 11 o'clock, within 8 inches of joint: NO

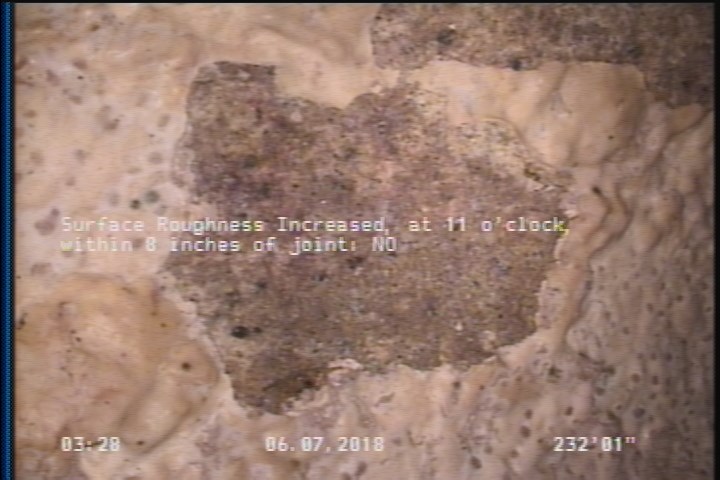

232 ft. - Surface Roughness Increased, at 11 o'clock, within 8 inches of joint: NO

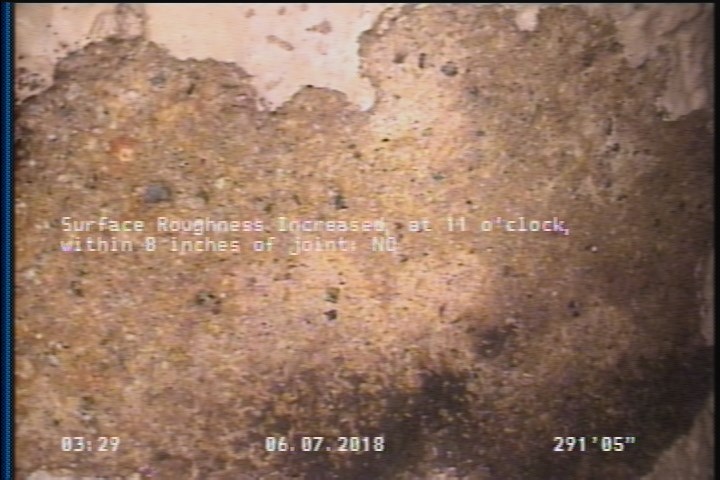

291.5 ft. - Surface Roughness Increased, at 11 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 323.4 | MGO | MAGNEZIUM H.O COATING finish |
| 326.3 | AMH | 02 0949 |
| 0 | AMH | 02 0948 |
| 3 | DAGS | — |
| 232 | SRI | — |
| 3 | MGO | MAGNEZIUM H.O COATING start |
| 323.4 | DAGS | — |
| 291.5 | SRI | — |
| 143 | SRI | — |
Properties (4)
- additional_info
- SC359510
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-07T03:17:37-07:00
