Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 07:34 AM
02 0972_02 0971 _06062018_005404.mp4
- Date
- 06/06/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03543
- Time
- 12:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5187
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0972
- Downstream MH
- 02 0971
- Dir. of Survey
- Downstream
- Length Surveyed
- 403.2 ft.
- Total Length
- 403.2 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

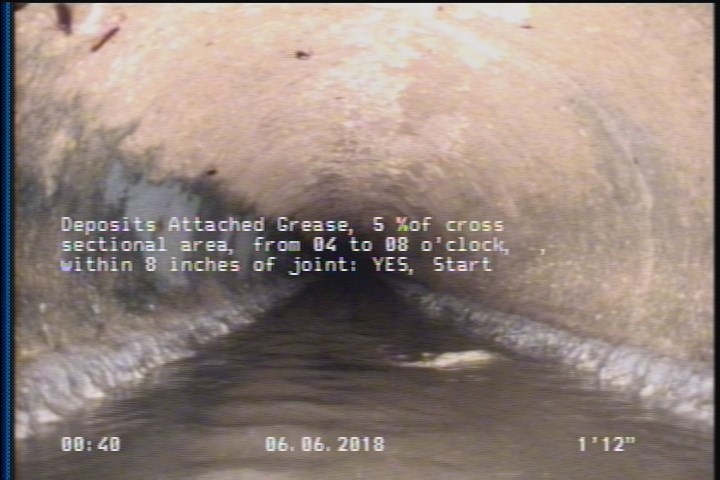

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
3 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

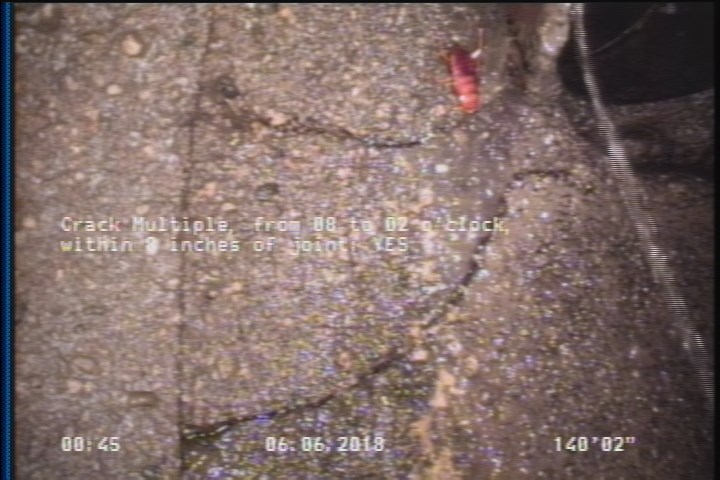

140.2 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 401 | SRI | — |
| 3 | MGO | MAGNEZIUM H.O COATING start, SPALLING |
| 0 | MWM | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 403.2 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 401 | MGO | MAGNEZIUM H.O COATING finish |
| 0 | MWL | — |
| 3 | SRI | — |
| 403.2 | AMH | 02 0971 |
| 401 | DAGS | — |
| 140.2 | CM | — |
| 0 | AMH | 02 0972 |
| 141.6 | TB | — |
Properties (4)
- additional_info
- SC359509
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-06T00:34:42-07:00
