Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 05:22 AM
02 0976A_02 0976 _05062018_223240.mp4
- Date
- 06/05/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03549
- Time
- 10:22 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5187
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0976A
- Downstream MH
- 02 0976
- Dir. of Survey
- Downstream
- Length Surveyed
- 95.6 ft.
- Total Length
- 95.6 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)
3.4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

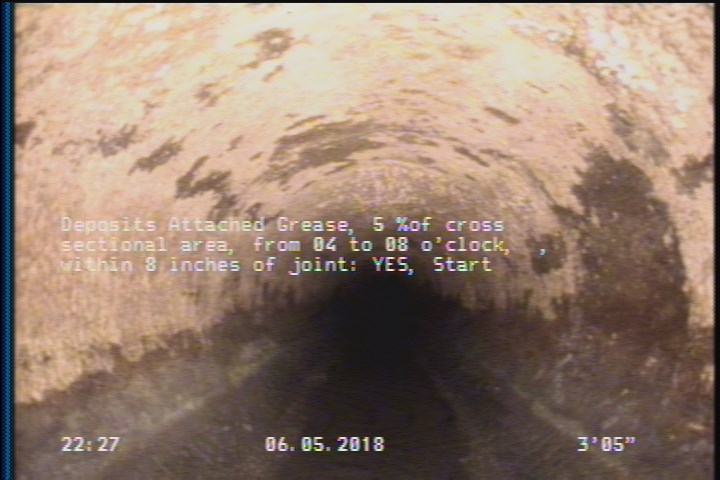

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 3.4 | SRI | — |
| 0 | AMH | 02 0976A |
| 3.4 | MGO | MAGNEZIUM H.O COATING start |
| 92.8 | SRI | — |
| 95.6 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 0 | MWM | — |
| 3.4 | DAGS | — |
| 95.6 | AMH | 02 0976 |
| 92.8 | DAGS | — |
| 92.8 | MGO | MAGNEZIUM H.O COATING finish |
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
Properties (4)
- additional_info
- SC359509
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-05T22:22:12-07:00
