Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 04:59 AM
02 0977_02 0976A _05062018_222008.mp4
- Date
- 06/05/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03550
- Time
- 9:59 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5187
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0977
- Downstream MH
- 02 0976A
- Dir. of Survey
- Downstream
- Length Surveyed
- 278.2 ft.
- Total Length
- 278.2 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

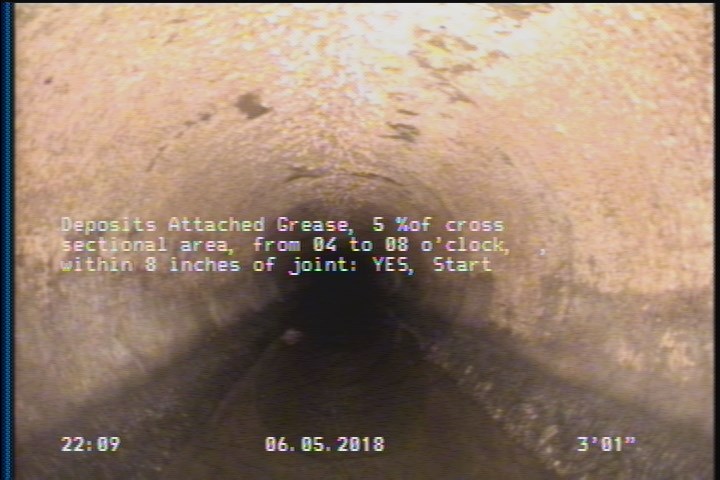

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

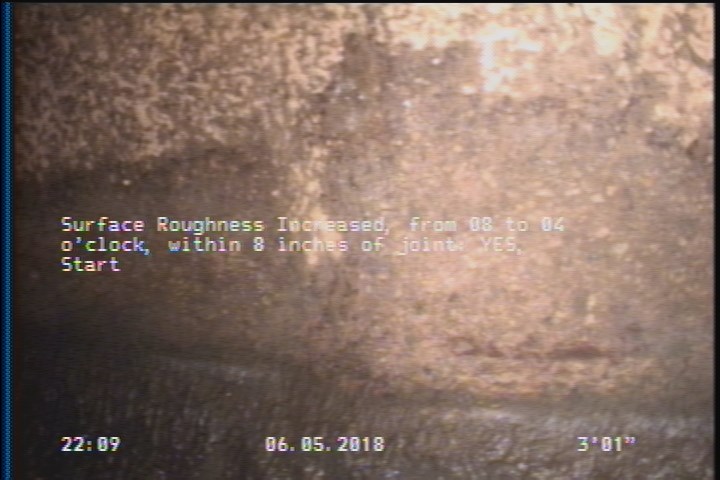

3.1 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

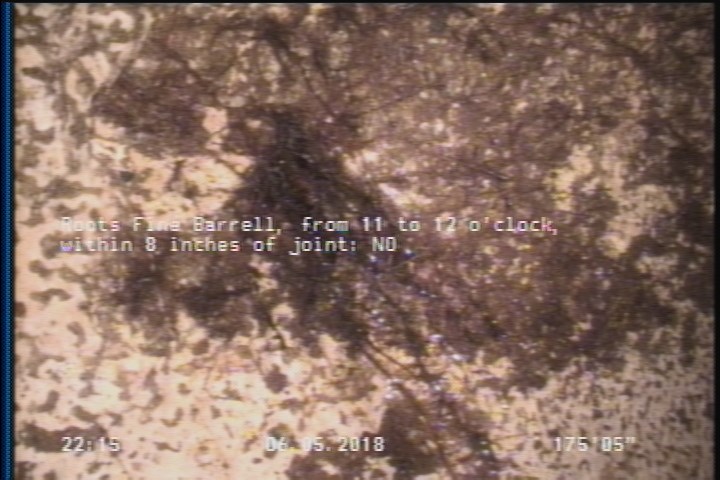

175.4 ft. - Roots Fine Barrell, from 11 to 12 o'clock, within 8 inches of joint: NO

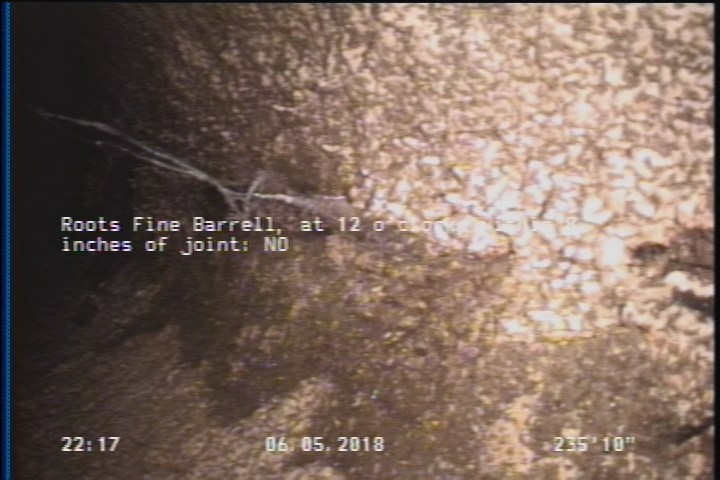

235.8 ft. - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: NO
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 3.1 | DAGS | — |
| 0 | AMH | 02 0977 |
| 276.7 | MGO | MAGNEZIUM H.O COATING finish |
| 235.8 | RFB | — |
| 0.1 | MWM | — |
| 3.1 | MGO | MAGNEZIUM H.O COATING start |
| 278.1 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 276.5 | SRI | — |
| 30.8 | TB | — |
| 3.1 | SRI | — |
| 0 | MWL | — |
| 120.9 | TBA | — |
| 175.4 | RFB | — |
| 278.2 | AMH | 02 0976A |
| 276.6 | DAGS | — |
| 46.5 | TBA | — |
Properties (4)
- additional_info
- SC359509
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-05T21:59:33-07:00
