Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 10:47 AM
02 0948_02 0947A_07062018_035914.mp4
- Date
- 06/07/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROTRO
- Sewer ID
- Z00279
- PipeID
- P21323
- Time
- 3:47 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5188
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0948
- Downstream MH
- 02 0947A
- Dir. of Survey
- Downstream
- Length Surveyed
- 13.2 ft.
- Total Length
- 13.2 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

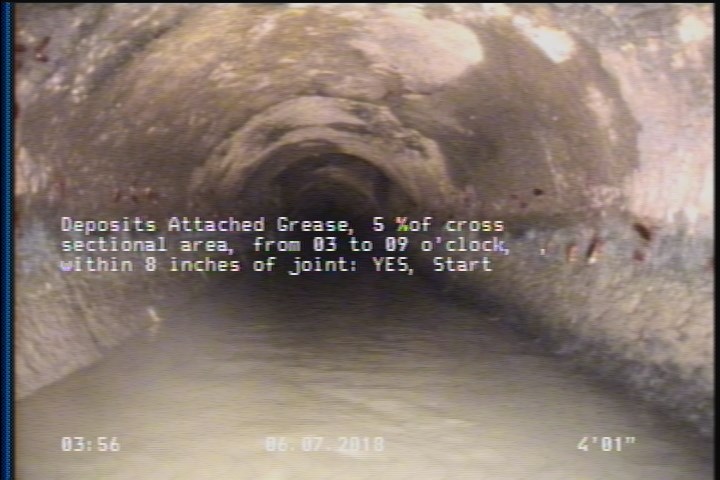

4.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

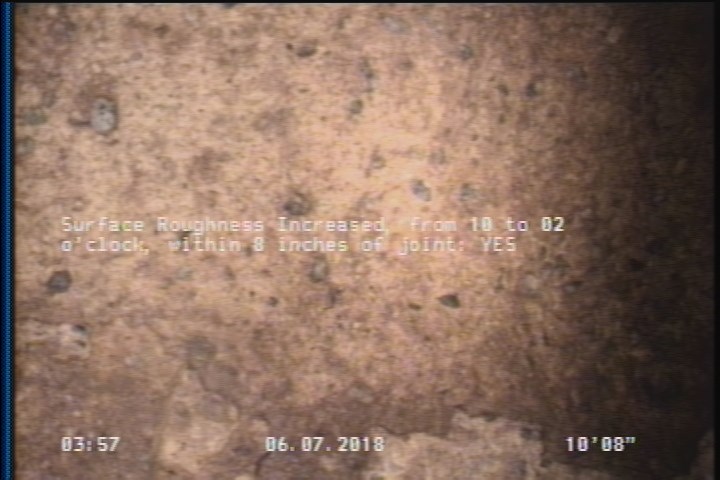

10.6 ft. - Surface Roughness Increased, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 4.1 | DAGS | — |
| 13.2 | AMH | 02 0947A |
| 0 | MWM | — |
| 4.1 | MGO | MAGNEZIUM H.O COATING start |
| 13.2 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 13.2 | DAGS | — |
| 10.6 | SRI | — |
| 0 | MWL | — |
| 0 | AMH | 02 0948 |
Properties (4)
- additional_info
- SC359510
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-07T03:47:58-07:00
