Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 05:05 AM
02 1400_02 0960 _06062018_221825.mp4
- Date
- 06/06/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03530
- Time
- 10:05 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5188
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0960
- Downstream MH
- 02 1400
- Dir. of Survey
- Upstream
- Length Surveyed
- 87 ft.
- Total Length
- 87 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

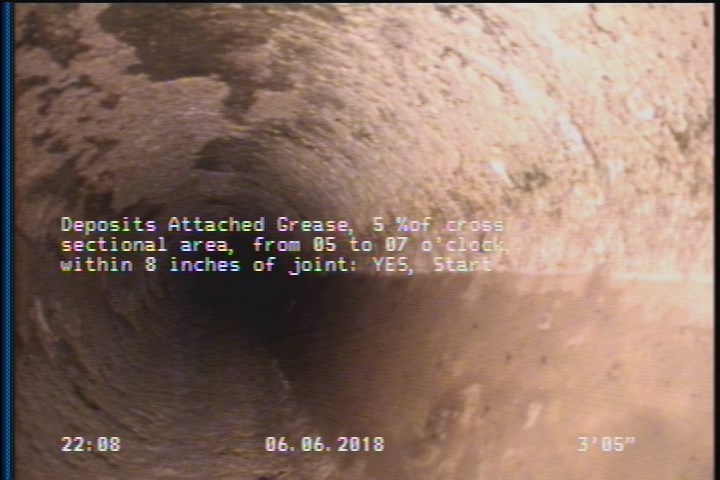

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

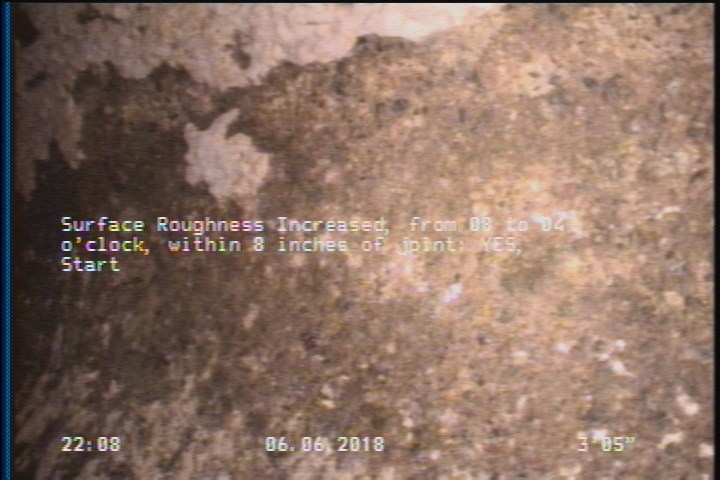

3.4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

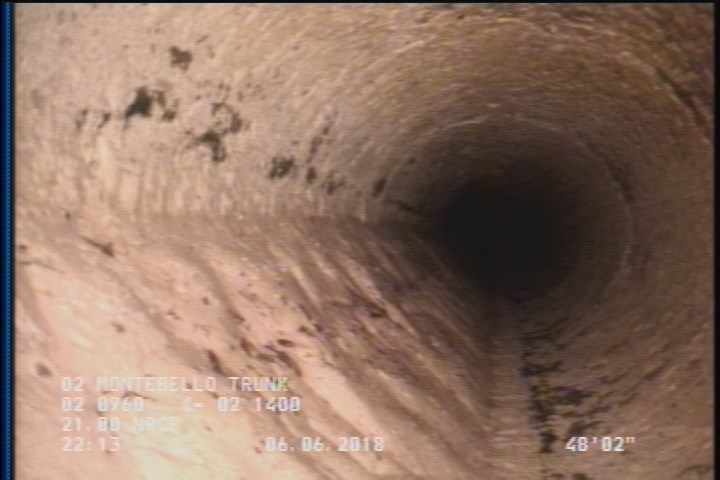

48.2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - UNKNOWN SLUDGE.
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 86.7 | SRI | — |
| 48.2 | DSZ | UNKNOWN SLUDGE. |
| 0 | AMH | 02 0960 |
| 0 | MWL | — |
| 0 | MWM | — |
| 3.4 | MGO | MAGNEZIUM H.O COATING start , FLAKING |
| 3.4 | DAGS | — |
| 3.4 | SRI | — |
| 86.5 | DSZ | MAG RESIDUE |
| 86.7 | DAGS | — |
| 87 | AMH | 02 1400 |
Properties (4)
- additional_info
- SC359510
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-06T22:05:52-07:00
