Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 09:10 AM
02 0981_02 0980 _06062018_022501.mp4
- Date
- 06/06/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03556
- Time
- 2:10 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5187
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0981
- Downstream MH
- 02 0980
- Dir. of Survey
- Downstream
- Length Surveyed
- 372.1 ft.
- Total Length
- 372.1 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

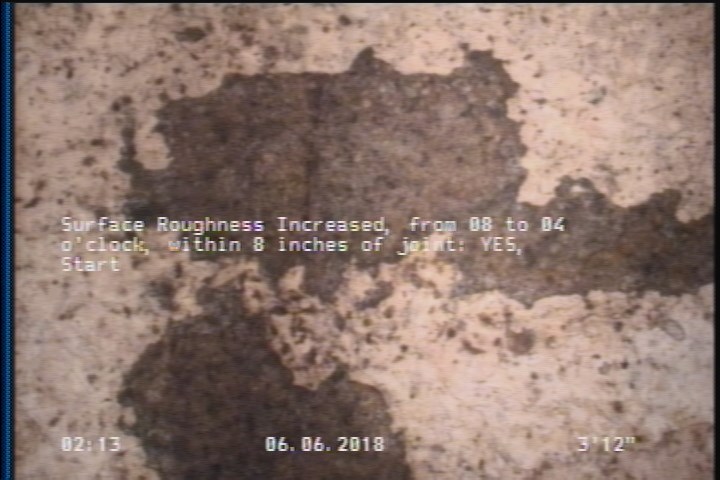

4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

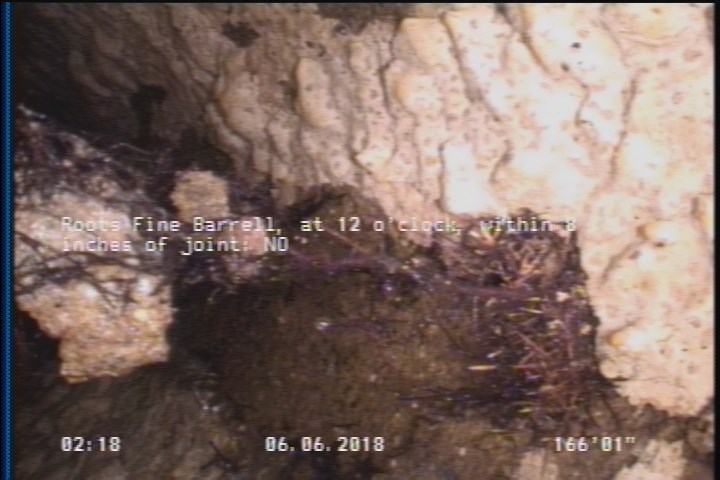

166.1 ft. - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 0981 |
| 0 | MWM | — |
| 166.1 | RFB | — |
| 369.9 | SRI | — |
| 4 | SRI | — |
| 369.9 | MGO | MAGNEZIUM H.O COATING finish |
| 372.1 | AMH | 02 0980 |
| 4 | MGO | MAGNEZIUM H.O COATING start, FLAKING |
| 0 | MWL | ACTUALLY 0% |
Properties (4)
- additional_info
- SC359509
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-06T02:10:43-07:00
