Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 10:08 AM
02 2373_02 0961 _06062018_032242.mp4
- Date
- 06/06/2018
- W/O
- 706802
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00279
- PipeID
- P03532
- Time
- 3:08 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5187
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_706802_TV02320_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0961
- Downstream MH
- 02 2373
- Dir. of Survey
- Upstream
- Length Surveyed
- 329.2 ft.
- Total Length
- 329.2 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

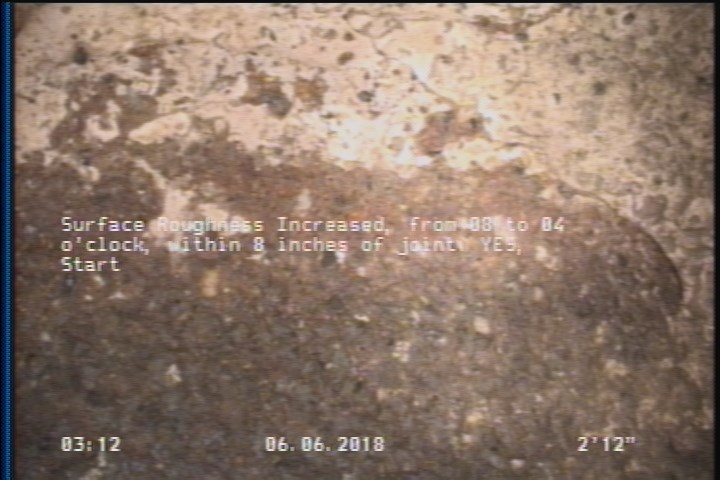

3 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

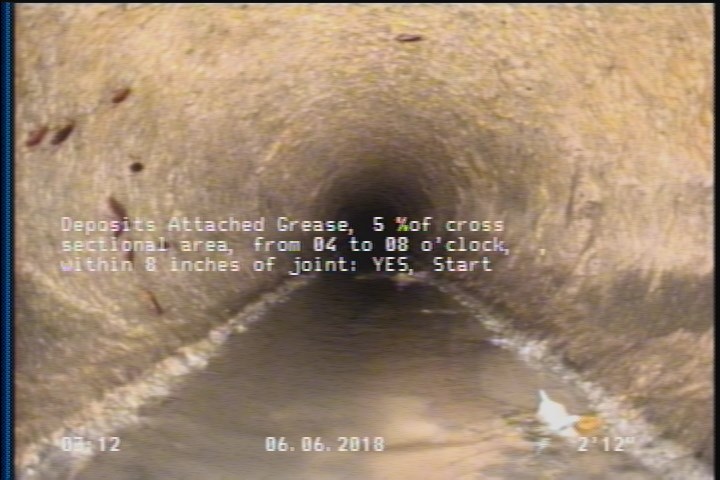

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 3 | SRI | — |
| 329.2 | AMH | 02 2373 |
| 327.7 | MGO | MAGNEZIUM H.O COATING finish |
| 3 | MGO | MAGNEZIUM H.O COATING start , FLAKING |
| 327.6 | SRI | — |
| 0 | MWM | — |
| 327.6 | DAGS | — |
| 0 | MWL | — |
| 226.7 | TB | — |
| 3 | DAGS | — |
| 0 | AMH | 02 0961 |
Properties (4)
- additional_info
- SC359509
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-06T03:08:15-07:00
