Wastewater/Activity/PacpInspection/1.0Jun 13, 2018, 09:17 AM
08 0225_08 0224 _13062018_022648.mp4
- Date
- 06/13/2018
- W/O
- 706728
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00099
- Time
- 2:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5728
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_706728_TV08013_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0225
- Downstream MH
- 08 0224
- Dir. of Survey
- Downstream
- Length Surveyed
- 119.9 ft.
- Total Length
- 119.9 ft.
- Structural Index
- 3
- Structural Quick
- 3B22
- Structural Rating
- 46
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 46
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 92
Observation photos (4)

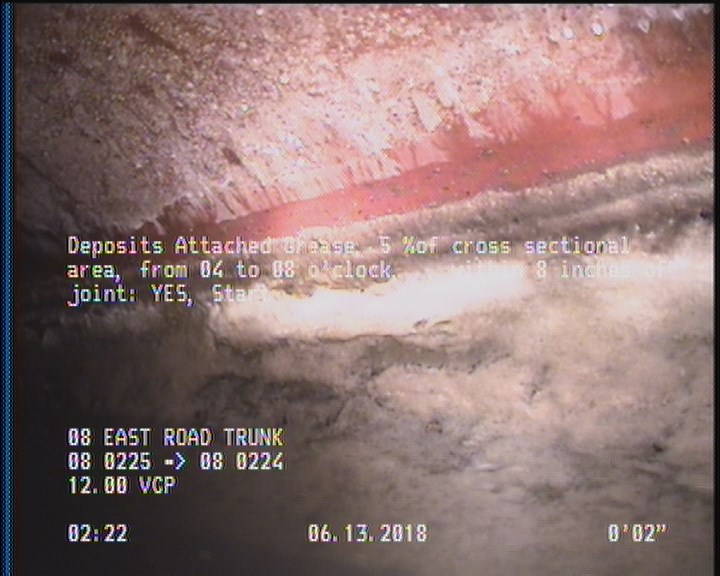

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

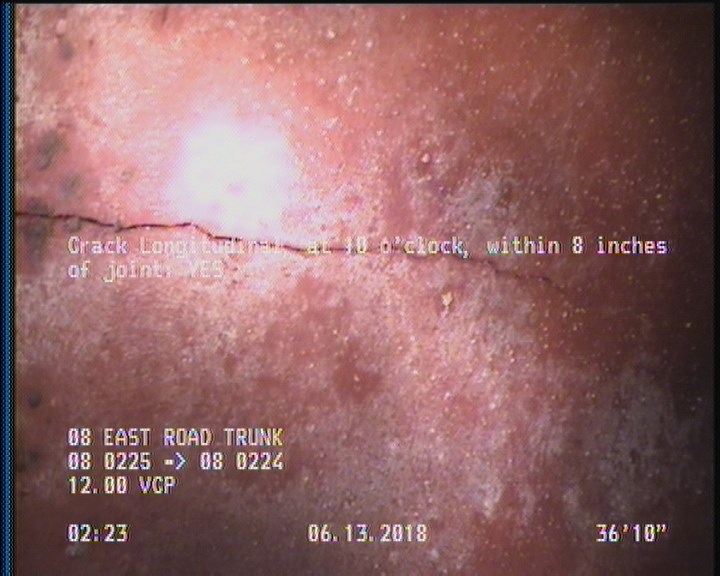

36.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

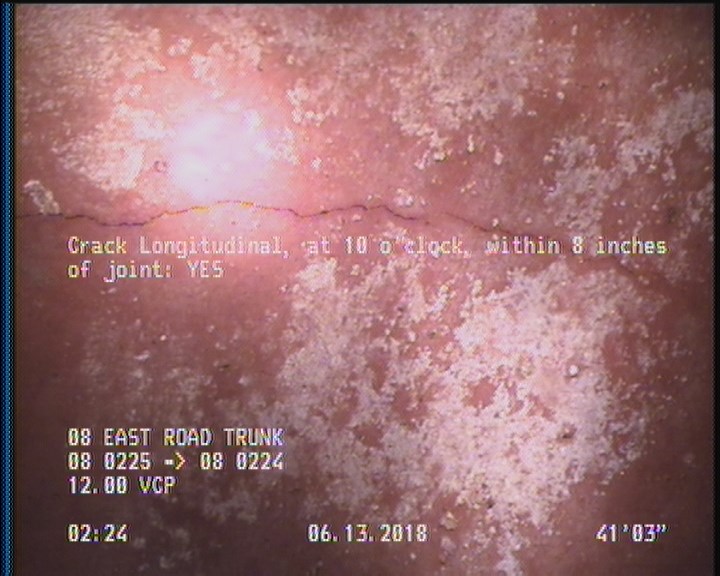

41.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

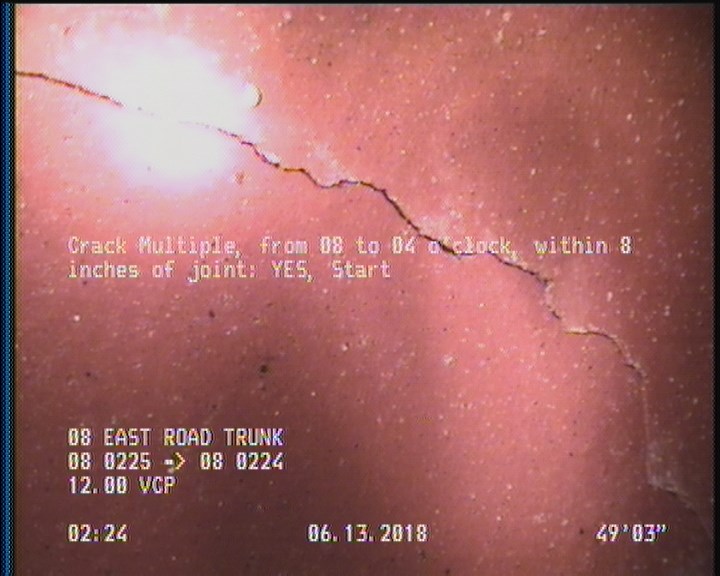

49.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 119.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 08 0225 |
| 27.5 | TFC | — |
| 115.5 | TFC | — |
| 41.2 | CL | — |
| 117 | DAGS | — |
| 36.8 | CL | — |
| 119.9 | MGO | COCKROACHES IN MANHOLE |
| 49.3 | CM | — |
| 117 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT 3 AND 9 O'CLOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 119.9 | AMH | 08 0224 |
Properties (4)
- additional_info
- SC359394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-13T02:17:45-07:00
