Wastewater/Activity/PacpInspection/1.0Jun 13, 2018, 08:44 AM
08 0219_08 0218 _13062018_015450.mp4
- Date
- 06/13/2018
- W/O
- 706728
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00089
- Time
- 1:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5728
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_706728_TV08013_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0219
- Downstream MH
- 08 0218
- Dir. of Survey
- Downstream
- Length Surveyed
- 247.2 ft.
- Total Length
- 247.2 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 141
- O&M Index
- 2
- O&M Quick
- 412I
- O&M Rating
- 102
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 243
Observation photos (2)

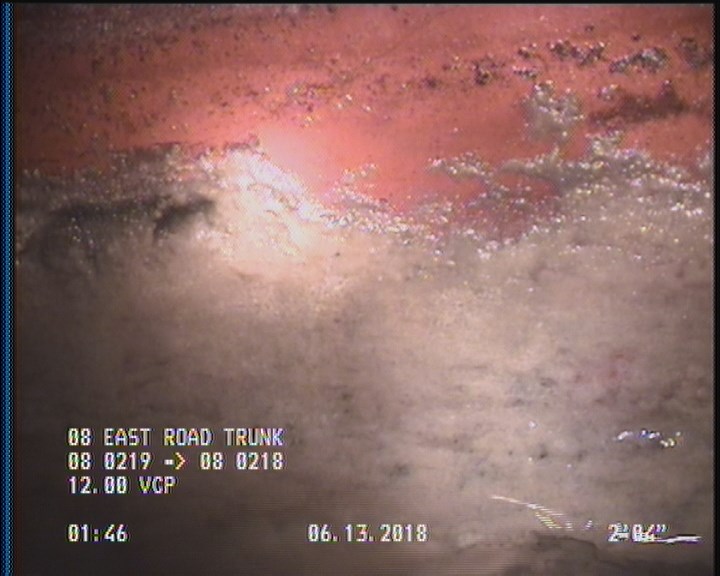

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

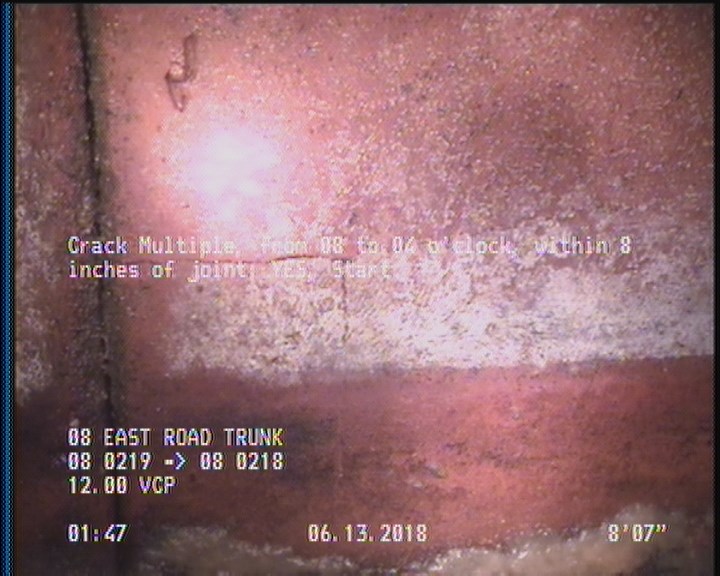

8.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 247.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 202.7 | TFA | — |
| 0 | MWL | — |
| 0 | AMH | 08 0219 |
| 247.2 | AMH | 08 0218 |
| 245.1 | DAGS | — |
| 0 | MWM | — |
| 124.6 | TFC | — |
| 53.4 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 245.1 | CM | — |
| 8.6 | CM | — |
Properties (4)
- additional_info
- SC359394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-13T01:44:06-07:00
