Wastewater/Activity/PacpInspection/1.0Jun 13, 2018, 07:33 AM
08 0212A_08 0212 _13062018_004034.mp4
- Date
- 06/13/2018
- W/O
- 706728
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00083
- Time
- 12:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5728
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_706728_TV08013_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0212A
- Downstream MH
- 08 0212
- Dir. of Survey
- Downstream
- Length Surveyed
- 109.2 ft.
- Total Length
- 109.2 ft.
- Structural Index
- 3
- Structural Quick
- 3A21
- Structural Rating
- 35
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 77
Observation photos (3)

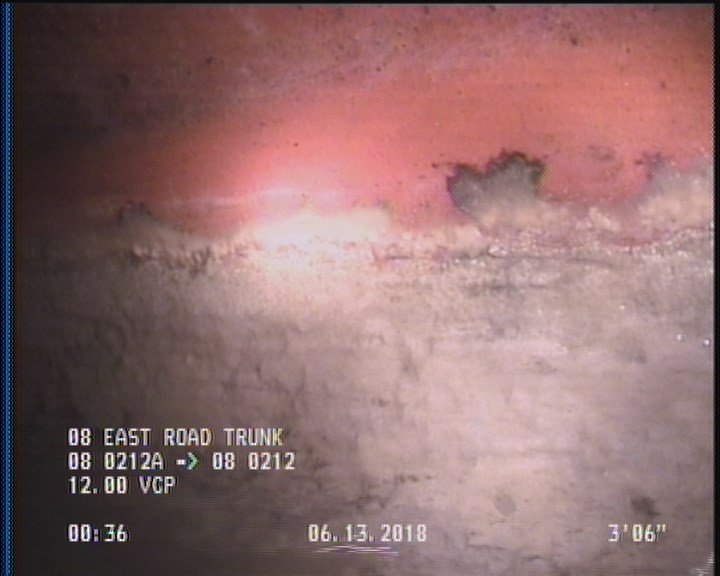

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

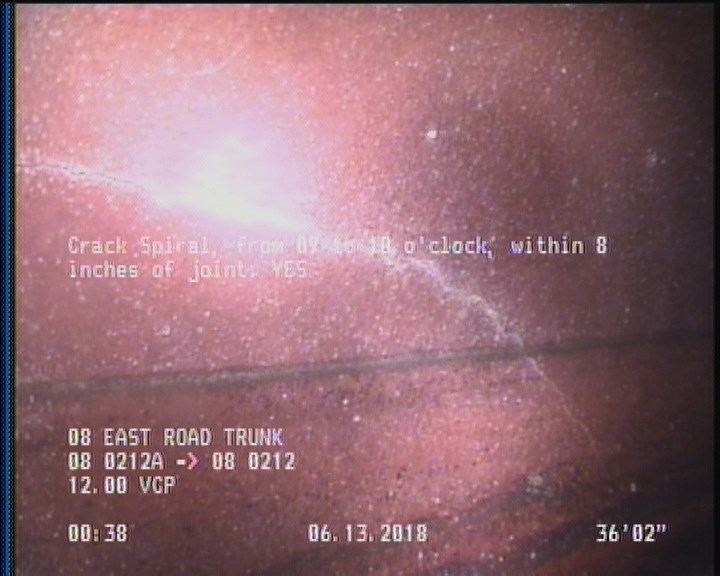

36.2 ft. - Crack Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES

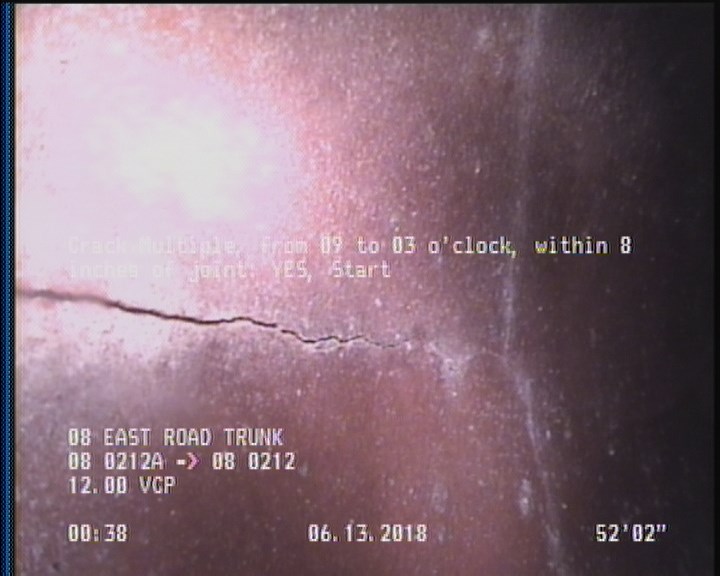

52.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 109.2 | AMH | 08 0212 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 52.2 | CM | — |
| 107.3 | CM | — |
| 18.2 | TFA | — |
| 0 | AMH | 08 0212A |
| 107.3 | DAGS | — |
| 2 | DAGS | — |
| 93.5 | TFC | — |
| 36.2 | CS | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-13T00:33:23-07:00
