Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 4, 2018, 04:38 PM

  • H 0698_H 0697_04062018_100543.mp4

Date
06/04/2018
W/O
701651
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00941
PipeID
P11105
Time
9:38 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3997
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
WHITTIER, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
01
Purpose
Maintenance Related
Project
WO_701651_TV18175_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
25 in.
Width
25 in.
Upstream MH
H 0698
Downstream MH
H 0697
Dir. of Survey
Downstream
Length Surveyed
723 ft.
Total Length
723 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
99
O&M Index
3
O&M Quick
3200
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
105
Pipe schematic from manhole H 0698 to H 0697
MH: H 0698MH: H 0697downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 06982 ft. MGO - General Observation - MAGNESIUM H.O. START2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start61.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish76.1 ft. OBZ - Obstacles Other, 15 %of cross sectional area, at 06 o'clock - UNKNOWN UNDER FLOW508.2 ft. OBZ - Obstacles Other, 15 %of cross sectional area, at 06 o'clock - UNKNOWN UNDER FLOW539.4 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start643.6 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish720 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH723 ft. AMH - Downstream Manhole, Survey Ends - H 0697

Observation photos (2)

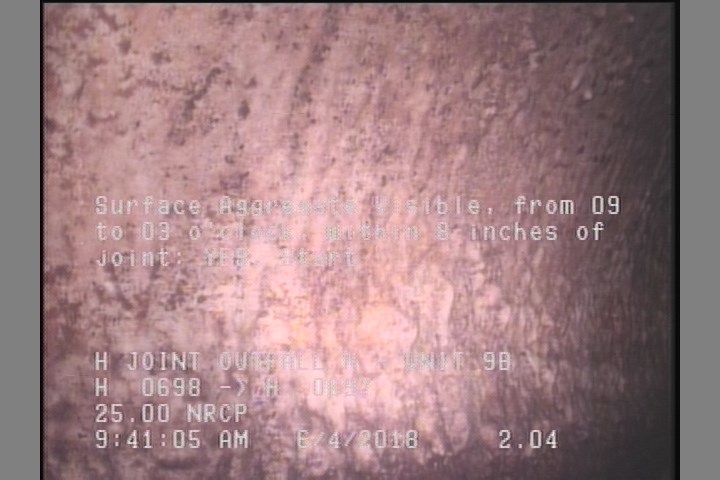

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

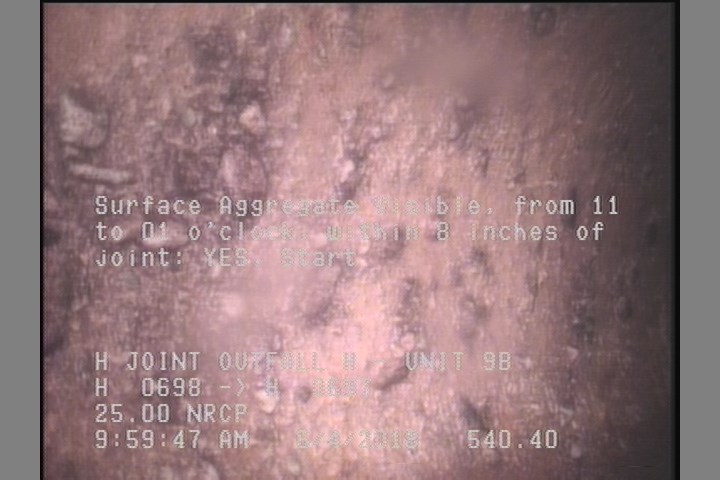

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    539.4 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P11105Work order 701651

Observations (12)

DistanceCodeObservation
0MWM—
539.4SAV—
643.6SAV—
508.2OBZUNKNOWN UNDER FLOW
61.1SAV—
76.1OBZUNKNOWN UNDER FLOW
0MWL—
2MGOMAGNESIUM H.O. START
0AMHH 0698
2SAV—
723AMHH 0697
720MGOMAGNEZIUM H.O. FINISH

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2018-06-04T09:38:10-07:00
