Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 07:27 PM
H 0678_H 0677_06062018_124302.mp4
- Date
- 06/06/2018
- W/O
- 701651
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00941
- PipeID
- P11085
- Time
- 12:27 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3999
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- PICO RIVERA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Maintenance Related
- Project
- WO_701651_TV18175_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0677
- Downstream MH
- H 0678
- Dir. of Survey
- Upstream
- Length Surveyed
- 213.3 ft.
- Total Length
- 213.3 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 126
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 130
Observation photos (2)

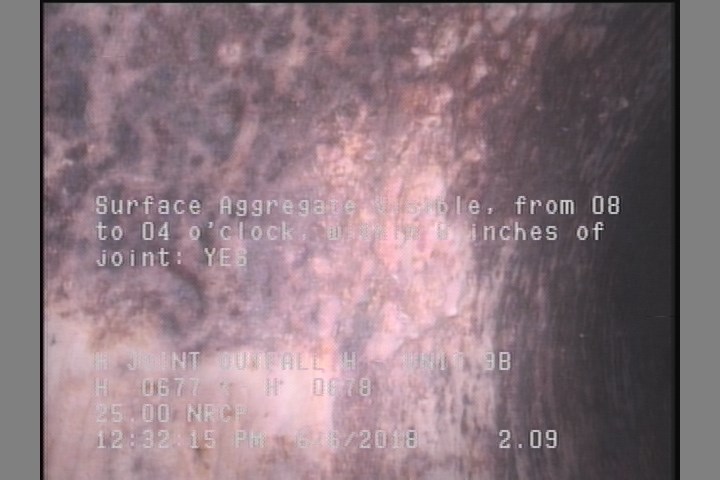

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

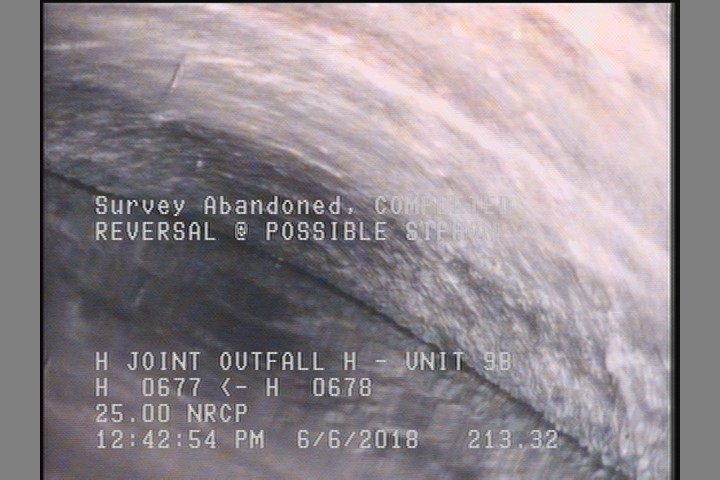

213.3 ft. - Survey Abandoned - COMPLETED REVERSAL @ POSSIBLE SIPHON
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 196.3 | TFC | — |
| 213.3 | MGO | MAGNEZIUM H.O. FINISH |
| 213.3 | MSA | COMPLETED REVERSAL @ POSSIBLE SIPHON |
| 0 | AMH | H 0677 |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 213.3 | MGO | END OF REVERSE MATCHED FOOTAGE AT POSSIBLE SIPHON |
| 213.3 | SAV | — |
| 202.1 | TB | — |
| 2.1 | SAV | — |
Properties (3)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-06T12:27:29-07:00
