Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 06:38 PM
H 0669_H 0668_07062018_115345.mp4
- Date
- 06/07/2018
- W/O
- 701651
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00941
- PipeID
- P11076
- Time
- 11:38 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4000
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- PICO RIVERA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Maintenance Related
- Project
- WO_701651_TV18175_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0669
- Downstream MH
- H 0668
- Dir. of Survey
- Downstream
- Length Surveyed
- 386 ft.
- Total Length
- 386 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 228
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 156
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 384
Observation photos (2)

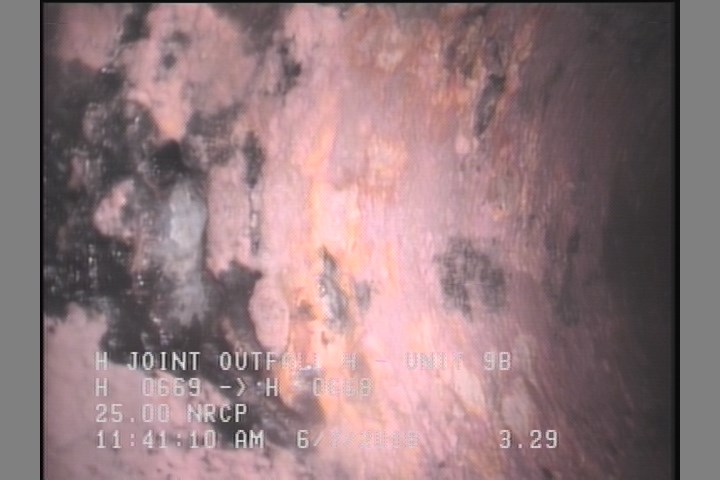

3.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

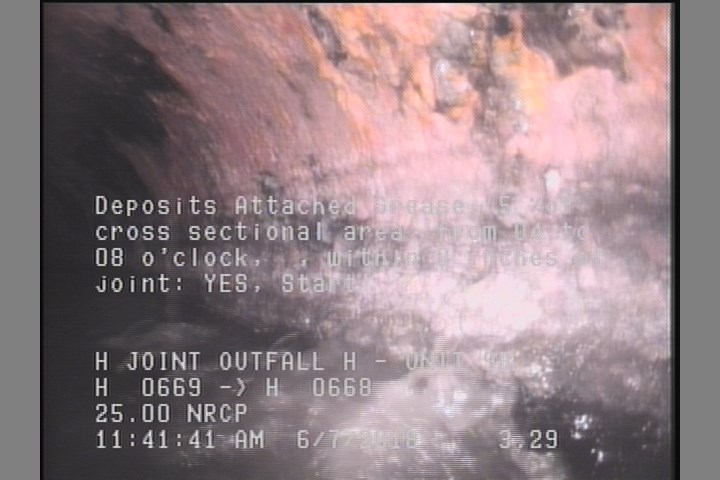

3.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0669 |
| 385.4 | SAV | — |
| 3.3 | SAV | — |
| 3.3 | MGO | MAGNESIUM H.O. START |
| 385.5 | MGO | MAGNEZIUM H.O. FINISH |
| 3.3 | DAGS | — |
| 385.4 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 386 | AMH | H 0668 |
Properties (3)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-07T11:38:08-07:00
