Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 01:44 PM

  • H 0687_H 0686_06062018_065236.mp4

Date
06/06/2018
W/O
701651
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00941
PipeID
P11094
Time
6:44 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3999
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
PICO RIVERA, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
01
Purpose
Maintenance Related
Project
WO_701651_TV18175_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
25 in.
Width
25 in.
Upstream MH
H 0687
Downstream MH
H 0686
Dir. of Survey
Downstream
Length Surveyed
76.9 ft.
Total Length
76.9 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
42
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole H 0687 to H 0686
MH: H 0687MH: H 0686downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 06870 ft. MWL - Water Level, 30 %of cross sectional area3.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start3.9 ft. MGO - General Observation - MAGNESIUM H.O. START40.2 ft. LL - Alignment Left, 10 %74.8 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH74.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish76.9 ft. AMH - Downstream Manhole, Survey Ends - H 0686

Observation photos (2)

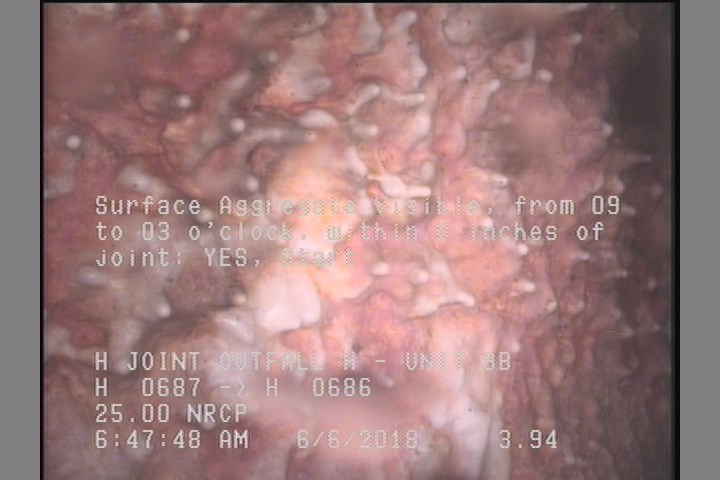

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

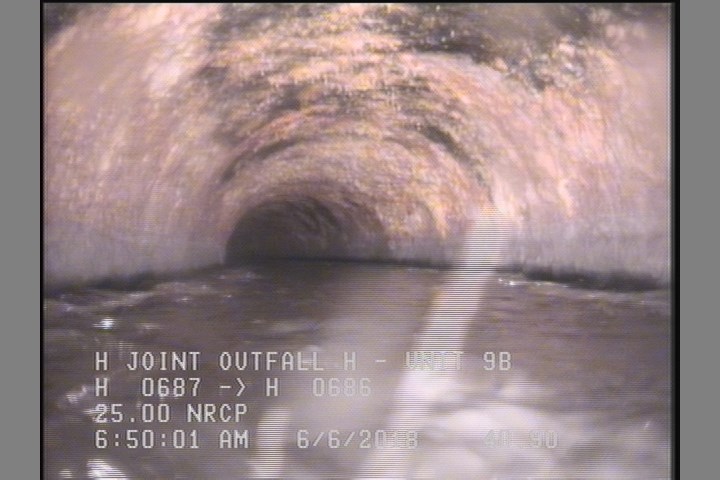

  • Alignment Left, 10 %

    40.2 ft. - Alignment Left, 10 %

All inspections of P11094Work order 701651

Observations (9)

DistanceCodeObservation
0MWM—
74.8MGOMAGNEZIUM H.O. FINISH
3.9SAV—
3.9MGOMAGNESIUM H.O. START
0AMHH 0687
0MWL—
76.9AMHH 0686
40.2LL—
74.8SAV—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2018-06-06T06:44:23-07:00
