Wastewater/Activity/PacpInspection/1.0May 17, 2018, 07:26 PM
H 0437_H 0436_12062018_155919.mp4
- Date
- 05/17/2018
- W/O
- 701117
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00180
- PipeID
- P10892
- Time
- 12:26 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5598
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D
- City
- S EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_701117_TV15196_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- H 0437
- Downstream MH
- H 0436
- Dir. of Survey
- Downstream
- Length Surveyed
- 365.5 ft.
- Total Length
- 365.5 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

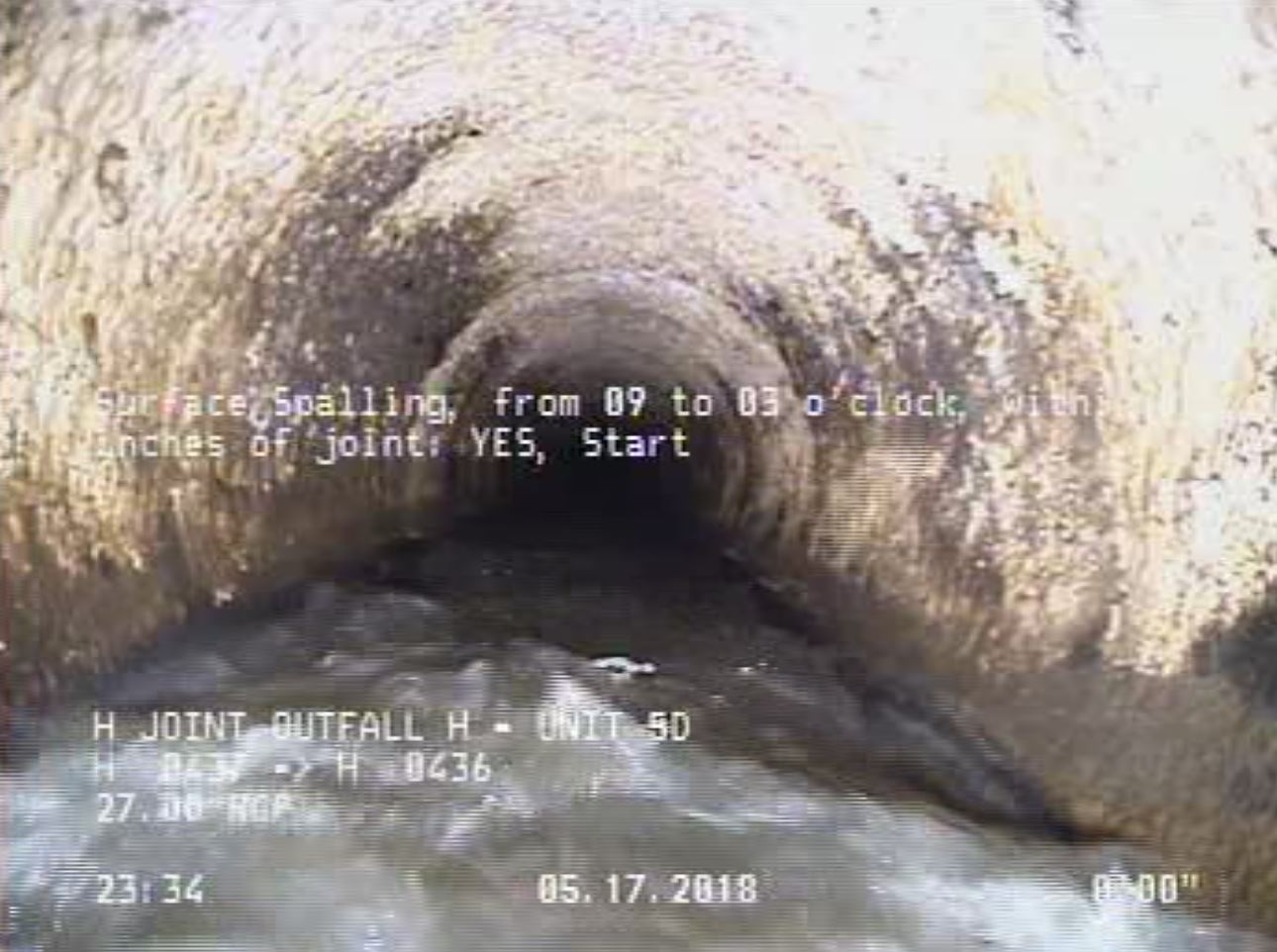

0 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

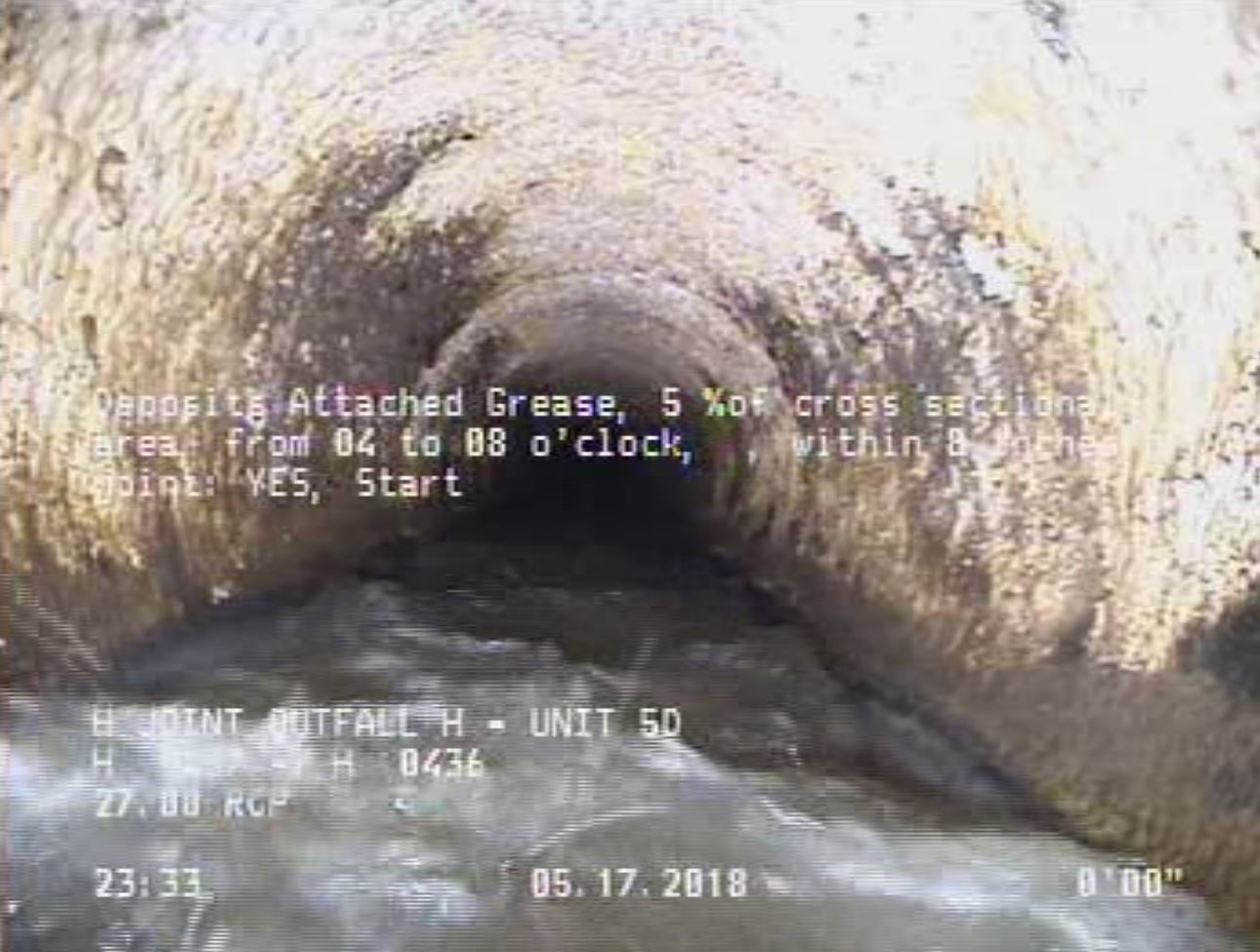

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

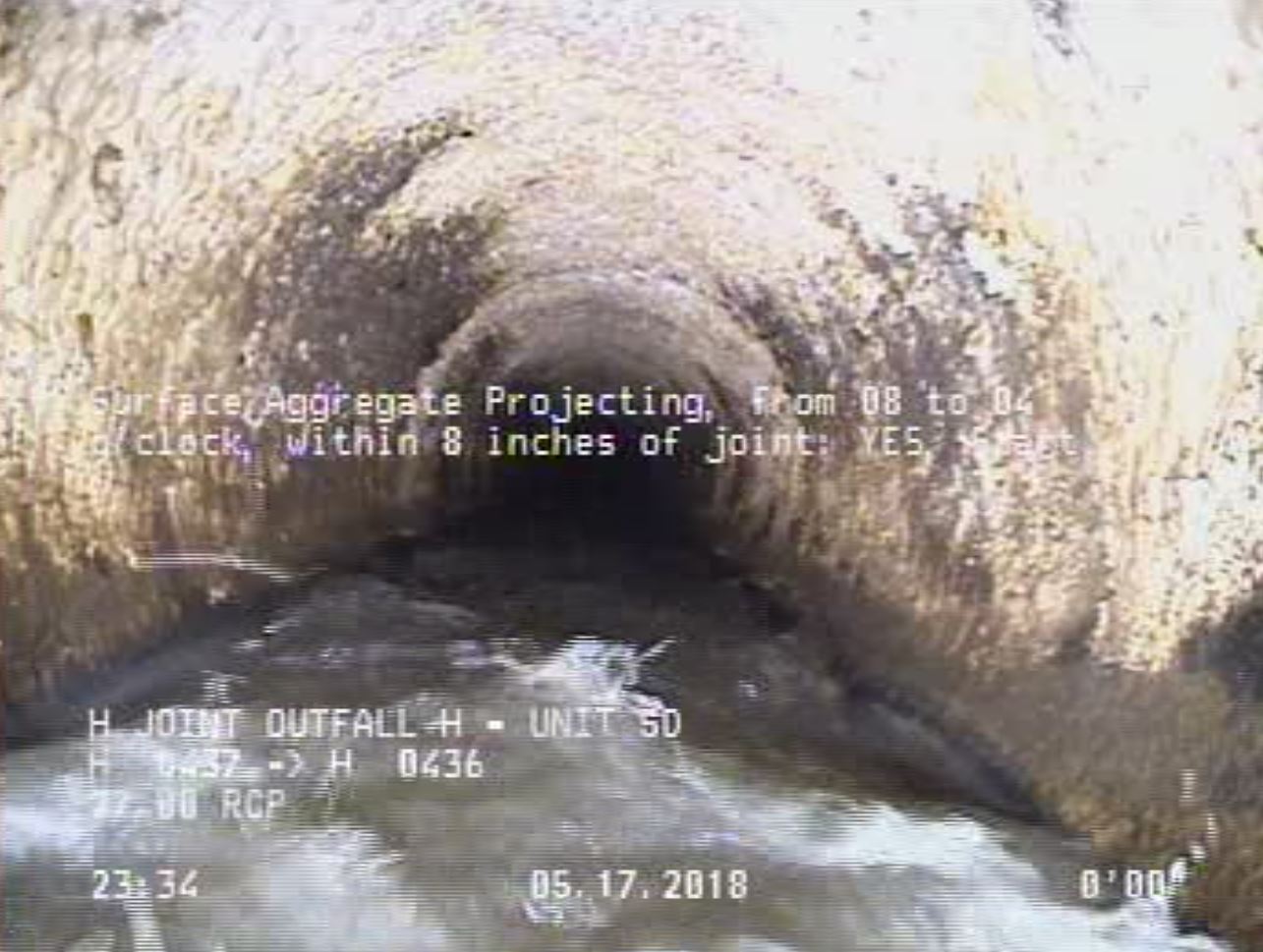

0 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | MGO | MAG COATING 70% THROUGHOUT |
| 0 | VC | — |
| 363 | SSS | — |
| 0 | SSS | — |
| 217.1 | TFA | — |
| 24.1 | TFA | — |
| 365.1 | VC | — |
| 363 | SAP | — |
| 0 | AMH | H 0437 |
| 363 | DAGS | — |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | DAGS | — |
| 365.5 | AMH | H 0436 |
| 0 | SAP | — |
Properties (4)
- additional_info
- SC359364
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-17T12:26:40-07:00
