Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2018, 09:34 AM

  • H 1356_H 0425_31052018_030440.mp4

Date
05/31/2018
W/O
701117
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00180
PipeID
P10881
Time
2:34 AM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5629
Sewer Name
H JOINT OUTFALL H - UNIT 5D
City
SOUTH EL MONTE, CA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_701117_TV15196_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
H 1356
Downstream MH
H 0425
Dir. of Survey
Downstream
Length Surveyed
686.4 ft.
Total Length
686.4 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
1
Pipe schematic from manhole H 1356 to H 0425
MH: H 1356MH: H 0425downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13560 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK2.1 ft. SRI - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start107.8 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"180.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"215.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"364.7 ft. MGO - General Observation - UNMAPPED MH435.3 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 6"582.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"630.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 8"686.4 ft. AMH - Downstream Manhole, Survey Ends - H 0425686.4 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK686.4 ft. SRI - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish

Observation photos (2)

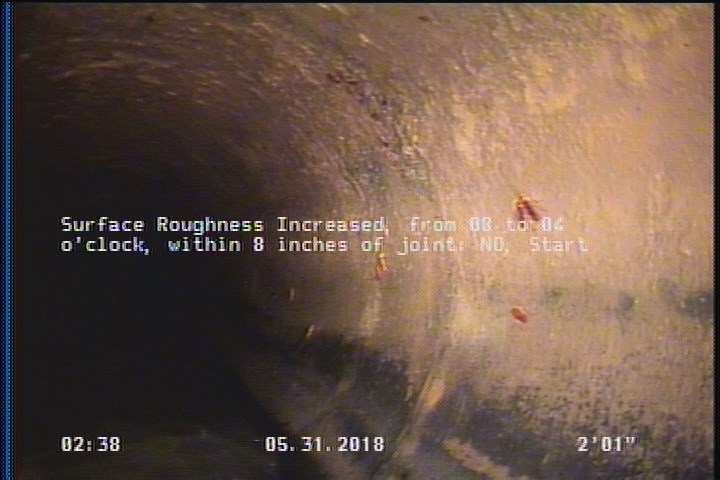

  • Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

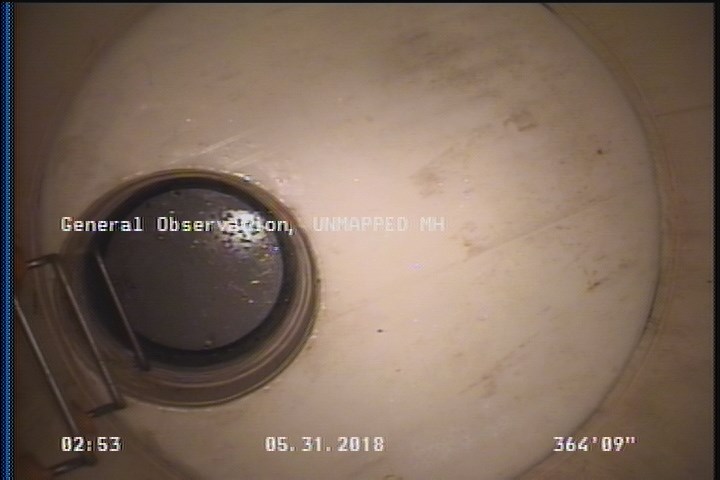

  • General Observation - UNMAPPED MH

    364.7 ft. - General Observation - UNMAPPED MH

All inspections of P10881Work order 701117

Observations (18)

DistanceCodeObservation
0MWM—
254.4TB—
2.1SRI—
0AMHH 1356
0MGOCONNECTION AT MH 3 OCLOCK
0MWL—
686.4AMHH 0425
215.3TB—
686.4MGOCONNECTION AT MH 3 OCLOCK
686.4SRI—
364.7MGOUNMAPPED MH
630.9TB—
180.7TB—
0MGOCONNECTION AT MH 9 OCLOCK
107.8TB—
435.3TB—
264.3TB—
582.4TB—

Properties (4)

additional_info
SC359184
custom_field_two
3
customer
LACSD
datetime
2018-05-31T02:34:09-07:00
