Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 22, 2018, 05:56 PM

  • 29 0100_29 0099_6222018_111443.mp4

Date
06/22/2018
W/O
0711161
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00273
PipeID
P23883
Time
10:56 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0902
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20180622SHO_33RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0099
Downstream MH
29 0100
Dir. of Survey
Upstream
Length Surveyed
298.2 ft.
Total Length
298.2 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 29 0099 to 29 0100
MH: 29 0099MH: 29 0100upstream0 ft. JOL - Joint Offset Large0 ft. AMH - Upstream Manhole, Survey Ends - INSPECTION COMPLETE BY ZOOMING TO BEGINNING OF THE LINE0.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"6.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES60.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES76.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"78 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"125.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"128.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES165.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES193.7 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS203.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN214.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"226.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"295.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"298.2 ft. AMH - Downstream Manhole, Survey Begins - 1100298.2 ft. MWM - Water Mark, 15 %of cross sectional area298.2 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

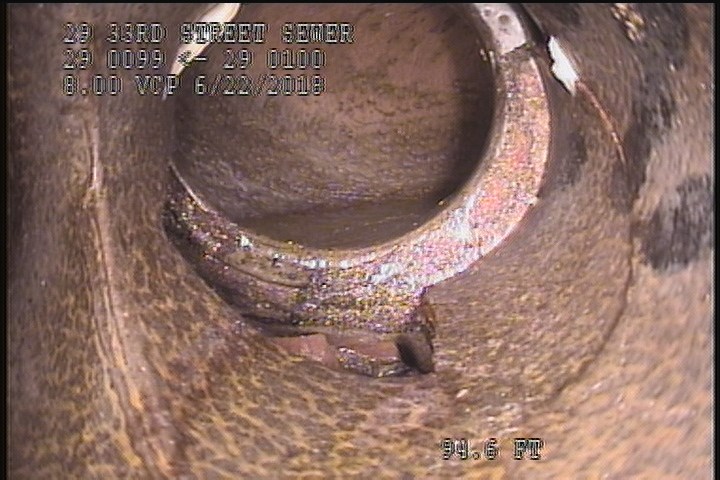

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

    94.6 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - BROKEN

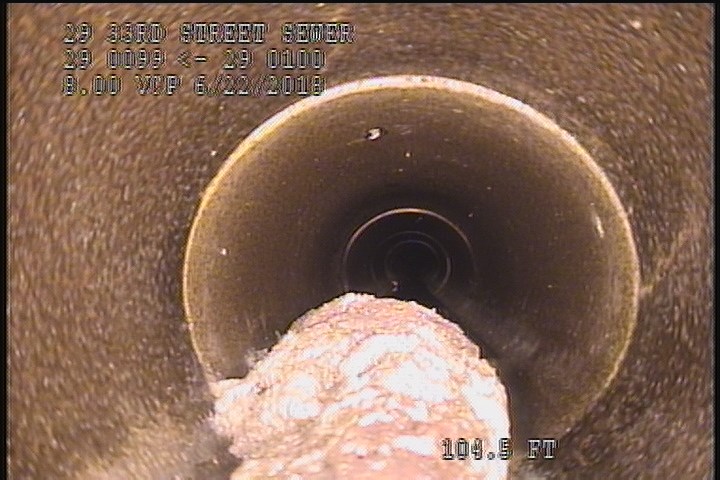

  • Deposits Settled Other, 20 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS

    104.5 ft. - Deposits Settled Other, 20 %of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS

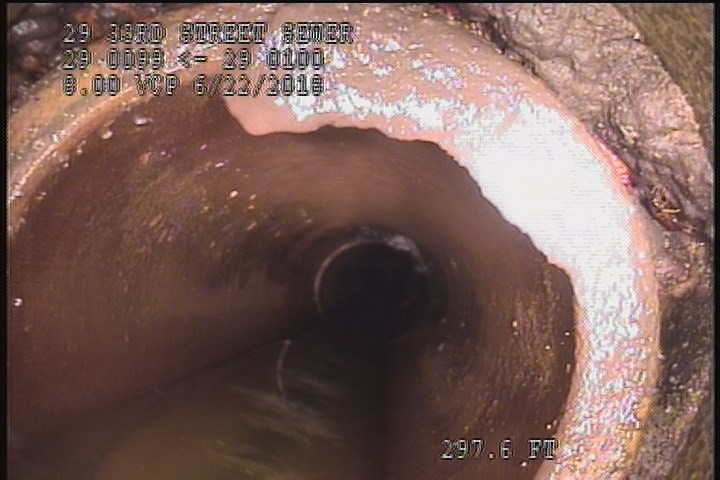

  • Joint Offset Large

    298.2 ft. - Joint Offset Large

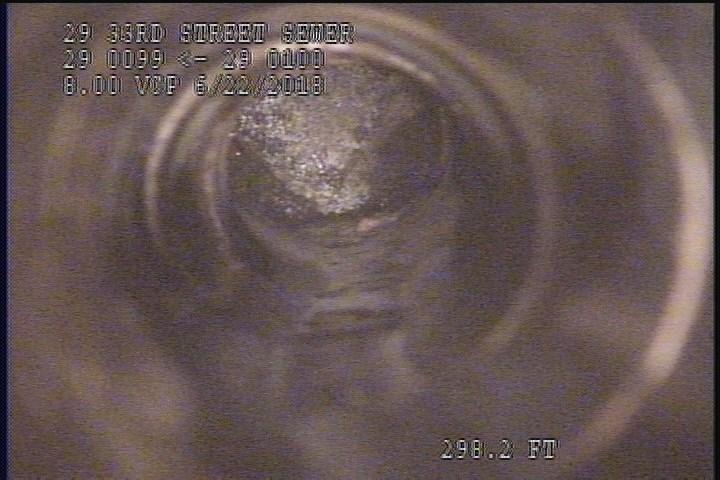

  • Upstream Manhole, Survey Ends - INSPECTION COMPLETE BY ZOOMING TO BEGINNING OF THE LINE

    298.2 ft. - Upstream Manhole, Survey Ends - INSPECTION COMPLETE BY ZOOMING TO BEGINNING OF THE LINE

All inspections of P23883Work order 0711161

Observations (22)

DistanceCodeObservation
0AMH1100
298.2JOL—
132.3CL—
169.4TFA—
0MWM—
2.8TFA—
0MWL—
292.1TFC—
71.9TFA—
220.2TFA—
238.1TFC—
294.2TFC—
147CM—
276.8CM—
172.4TFA—
298.2AMHINSPECTION COMPLETE BY ZOOMING TO BEGINNING OF THE LINE
222CL—
222TFA—
83.7TFA—
104.5DSZDEBRIS
297.6TFA—
94.6TFDBROKEN

Properties (4)

custom_field_three
VERY OFFSET JOINT
custom_field_two
3
customer
LACSD
datetime
2018-06-22T10:56:02-07:00
