Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 09:40 AM

  • H 0560_H 0559 _01062018_025755.mp4

Date
06/01/2018
W/O
701217
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00186
PipeID
P10984
Time
2:40 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5682
Sewer Name
H JOINT OUTFALL H - UNIT 8C
City
BALDWIN PARK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
WO_701217_TV15170_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 0560
Downstream MH
H 0559
Dir. of Survey
Downstream
Length Surveyed
279.6 ft.
Total Length
279.6 ft.
Structural Index
3
Structural Quick
3J2J
Structural Rating
278
O&M Index
2
O&M Quick
4132
O&M Rating
12
Overall Index
3
Overall Quick
—
Overall Rating
290
Pipe schematic from manhole H 0560 to H 0559
MH: H 0560MH: H 0559downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 05600 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 30 %of cross sectional area5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start26.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start26.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish58.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"58.9 ft. RFC - Roots Fine Connection, from 02 to 04 o'clock82.3 ft. RML - Roots Medium Lateral, at 10 o'clock, 30 %, within 8 inches of joint: NO82.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"122.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"154.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"157.9 ft. SRP - Surface Reinforcement Projecting, from 01 to 04 o'clock, within 8 inches of joint: NO162.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"169 ft. RFC - Roots Fine Connection, from 08 to 10 o'clock169 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"169 ft. RBL - Roots Ball Lateral, at 10 o'clock, 75 %178.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"202.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"210.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"218.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"226.7 ft. RMC - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: NO226.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"279.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish279.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK279.6 ft. AMH - Downstream Manhole, Survey Ends - H 0559279.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

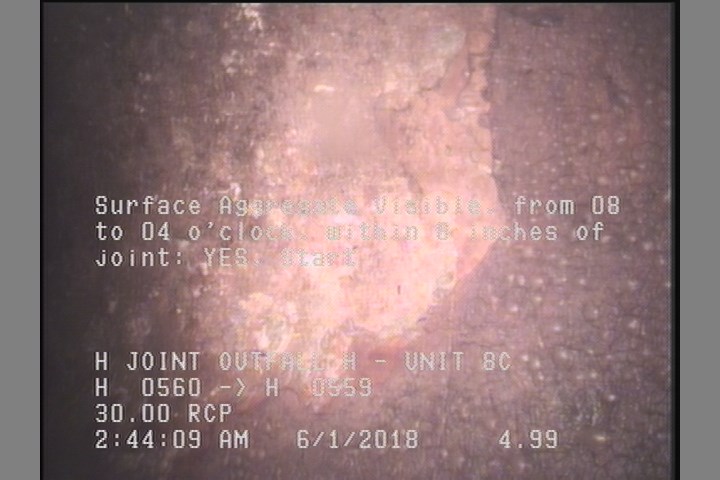

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

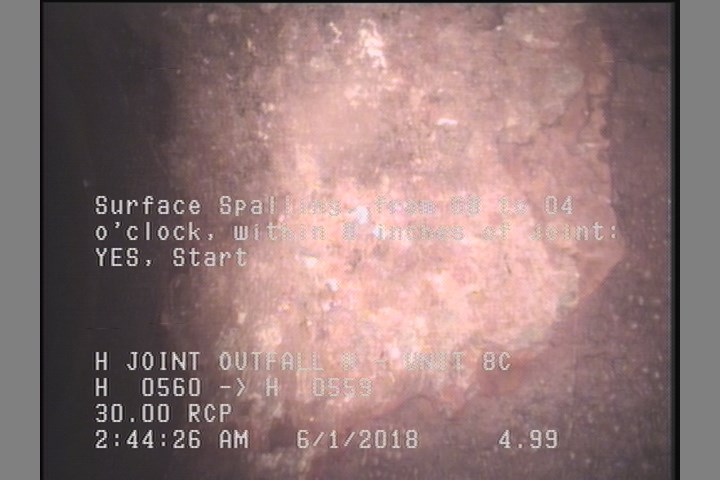

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

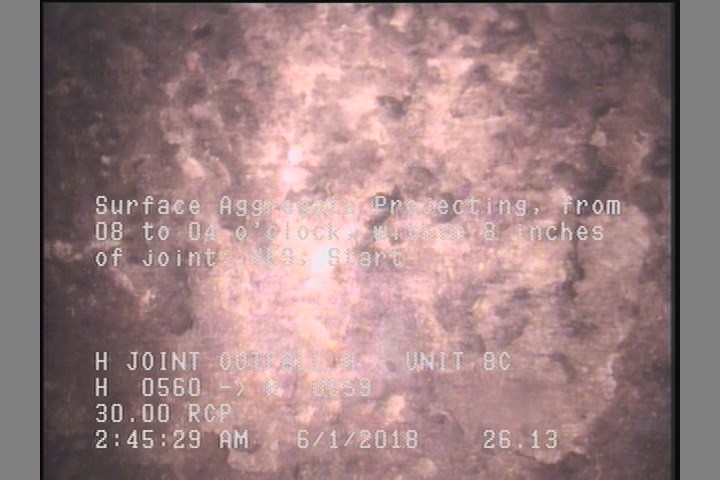

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

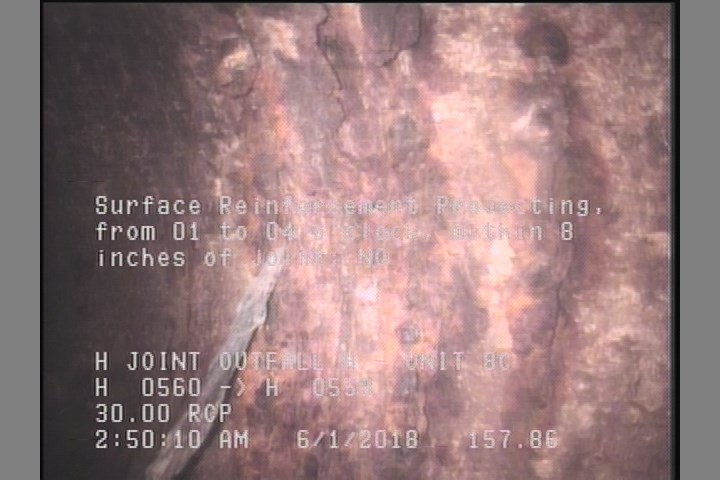

  • Surface Reinforcement Projecting, from 01 to 04 o'clock, within 8 inches of joint: NO

    157.9 ft. - Surface Reinforcement Projecting, from 01 to 04 o'clock, within 8 inches of joint: NO

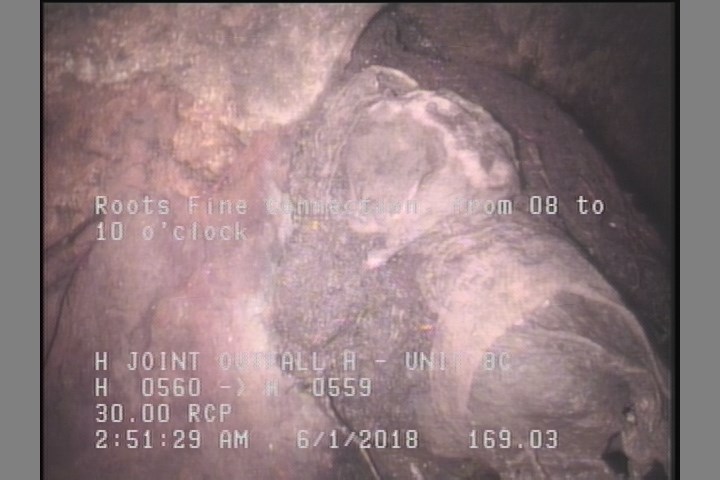

  • Roots Fine Connection, from 08 to 10 o'clock

    169 ft. - Roots Fine Connection, from 08 to 10 o'clock

All inspections of P10984Work order 701217

Observations (33)

DistanceCodeObservation
26.1SAP—
0AMHH 0560
242.9TF—
82.3RML—
226.7RMC—
0MWL—
82.3TF—
58.9TF—
178.2TF—
162.5TFC—
210.7TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
194.4TFC—
279.6SAP—
169RFC—
234.5TFC—
58.9RFC—
218.3TFC—
169TF—
0MGOCONNECTION AT MH 9 O'CLOCK
154.2TFC—
279.6MGOCONNECTION AT MH 9 O'CLOCK
202.4TFC—
279.6AMHH 0559
169RBL—
5SAV—
0MWM—
157.9SRP—
226.7TF—
5SSS—
122.7TF—
26.1SAV—
279.6SSS—

Properties (4)

additional_info
SC359340
custom_field_two
2
customer
LACSD
datetime
2018-06-01T02:40:13-07:00
