Wastewater/Activity/PacpInspection/1.0May 29, 2018, 10:02 AM
22 0612_22 0611A _29052018_030858.mp4
- Date
- 05/29/2018
- W/O
- 701523
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00827
- PipeID
- P23487
- Time
- 3:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5711
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_701523_TV22166_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0611A
- Downstream MH
- 22 0612
- Dir. of Survey
- Upstream
- Length Surveyed
- 70.7 ft.
- Total Length
- 70.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B2B
- Structural Rating
- 68
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 28
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 96
Observation photos (3)

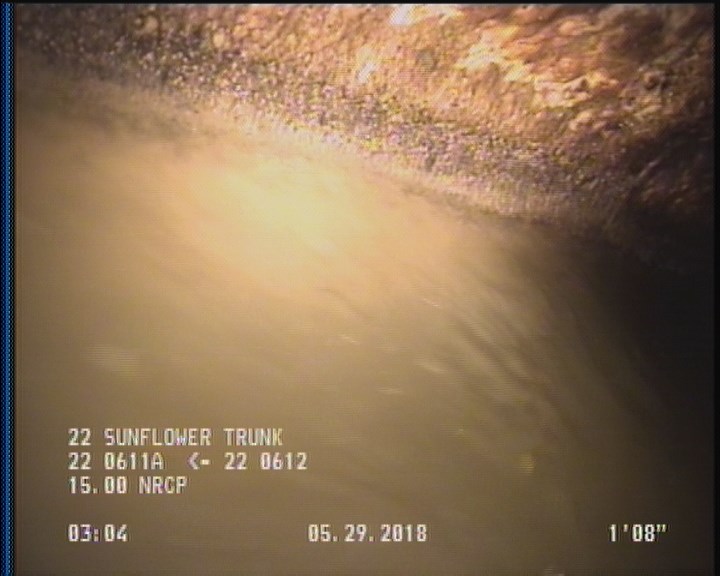

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

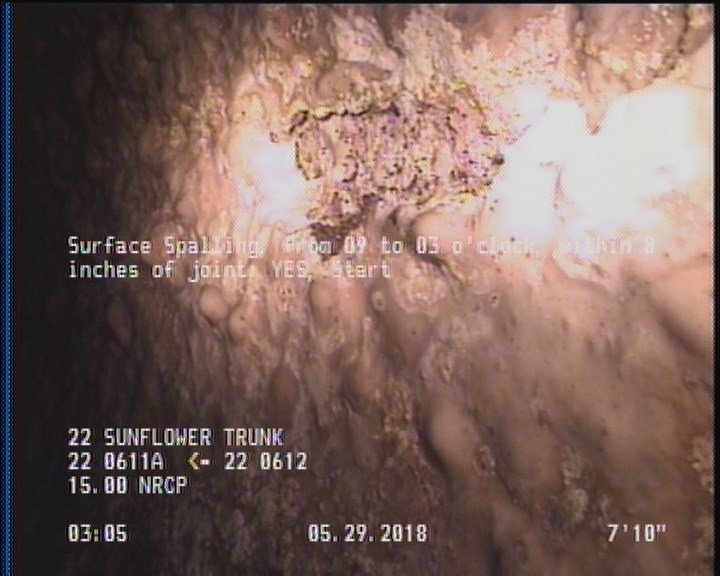

7.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 70.7 | SSS | — |
| 63.2 | TFC | — |
| 70.7 | SAP | — |
| 70.7 | AMH | 22 0612 |
| 2 | DAGS | — |
| 70.7 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 22 0611A |
| 2 | SAP | — |
| 7.9 | SSS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359377
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-29T03:02:14-07:00
