Wastewater/Activity/PacpInspection/1.0May 23, 2018, 09:54 AM
22 0637_22 0636 _23052018_030301.mp4
- Date
- 05/23/2018
- W/O
- 701523
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00827
- PipeID
- P16985
- Time
- 2:54 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5708
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_701523_TV22166_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0637
- Downstream MH
- 22 0636
- Dir. of Survey
- Downstream
- Length Surveyed
- 53.6 ft.
- Total Length
- 53.6 ft.
- Structural Index
- 3
- Structural Quick
- 3A2A
- Structural Rating
- 50
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 70
Observation photos (3)

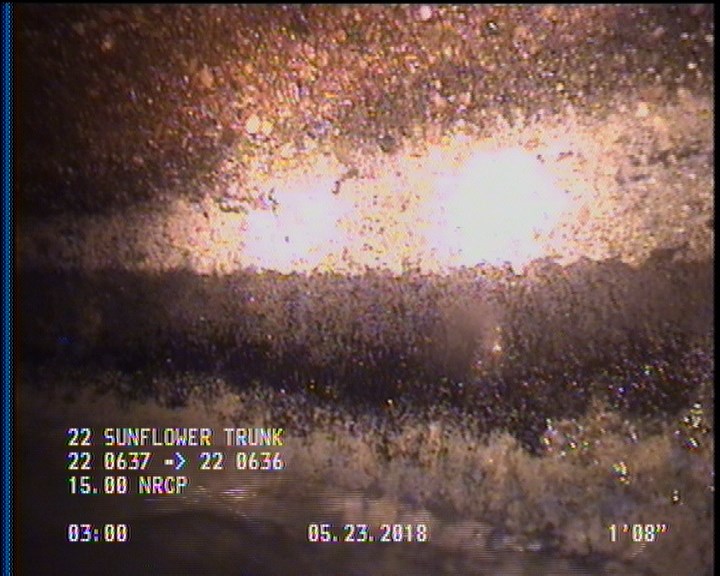

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

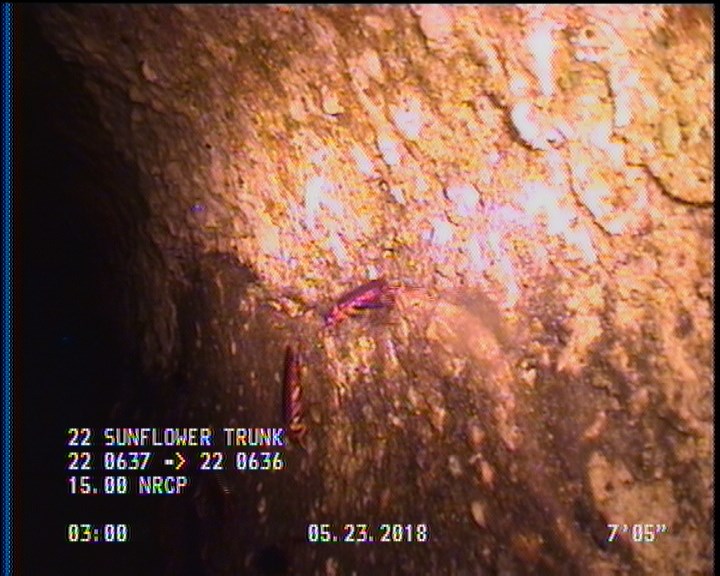

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

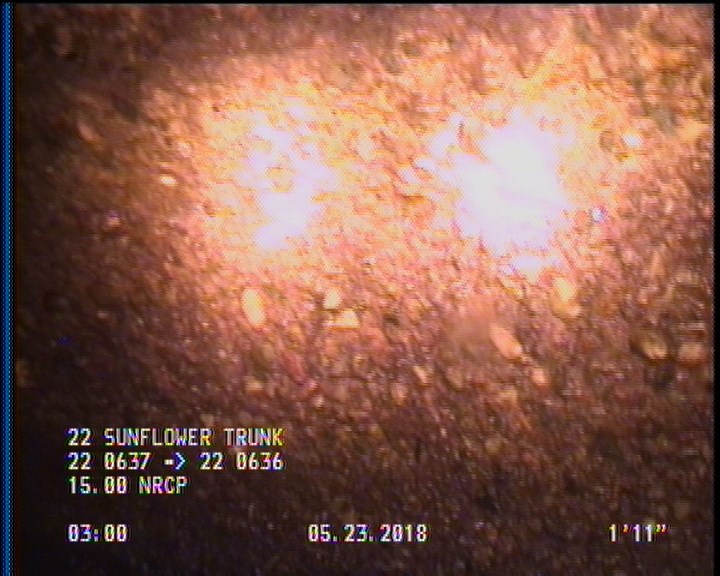

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 53.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 53.6 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 51.2 | SSS | — |
| 11.3 | TFC | — |
| 51.2 | DAGS | — |
| 0 | MWL | — |
| 51.2 | SAP | — |
| 2 | SSS | — |
| 0 | AMH | 22 0637 |
| 40.2 | TFA | — |
| 53.6 | AMH | 22 0636 |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC359374
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-23T02:54:28-07:00
