Wastewater/Activity/PacpInspection/1.0May 23, 2018, 09:38 AM
22 0638_22 0637 _23052018_025313.mp4
- Date
- 05/23/2018
- W/O
- 701523
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00827
- PipeID
- P16986
- Time
- 2:38 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5708
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_701523_TV22166_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0638
- Downstream MH
- 22 0637
- Dir. of Survey
- Downstream
- Length Surveyed
- 210.6 ft.
- Total Length
- 210.6 ft.
- Structural Index
- 3
- Structural Quick
- 3G2G
- Structural Rating
- 205
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 82
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 287
Observation photos (3)

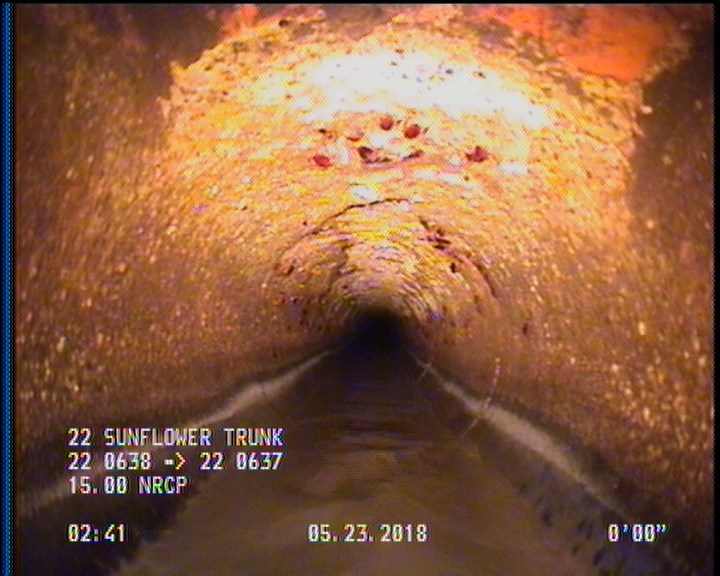

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

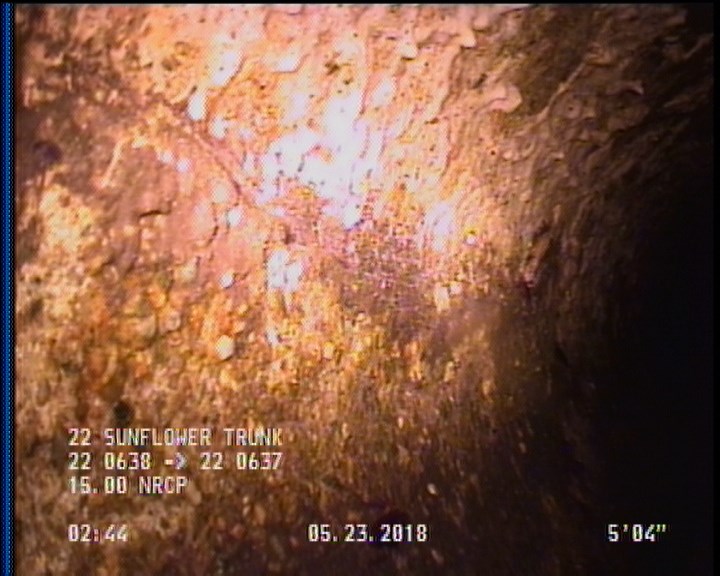

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

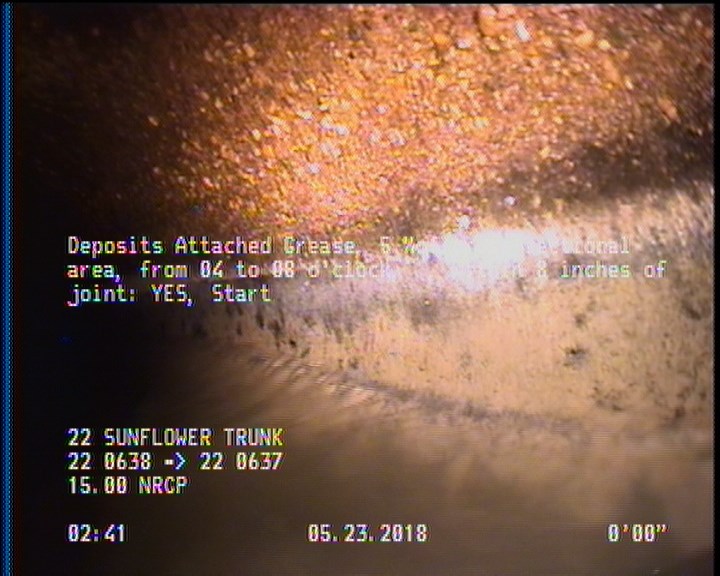

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 208.7 | DAGS | — |
| 208.7 | SSS | — |
| 210.6 | AMH | 22 0637 |
| 197.7 | TFA | — |
| 210.6 | MGO | COCKROACHES IN MANHOLE |
| 119.6 | TFC | — |
| 74.9 | TFC | — |
| 0 | MWM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 148.6 | TFC | — |
| 50.5 | TFA | — |
| 0 | MWL | — |
| 21.8 | TFC | — |
| 99.5 | TFA | — |
| 2 | SAP | — |
| 2 | SSS | — |
| 2 | DAGS | — |
| 173.4 | TFC | — |
| 208.7 | SAP | — |
| 0 | AMH | 22 0638 |
Properties (4)
- additional_info
- SC359374
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-23T02:38:24-07:00
