Wastewater/Activity/PacpInspection/1.0Jun 18, 2018, 07:29 PM
30 0026_30 0025A_6182018_124453.mp4
- Date
- 06/18/2018
- W/O
- 0706884
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00878
- PipeID
- P17728
- Time
- 12:29 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7732
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- MANHATTAN BEACH
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- 20180618SHO_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 30 0026
- Downstream MH
- 30 0025A
- Dir. of Survey
- Downstream
- Length Surveyed
- 58.4 ft.
- Total Length
- 58.4 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)
9.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

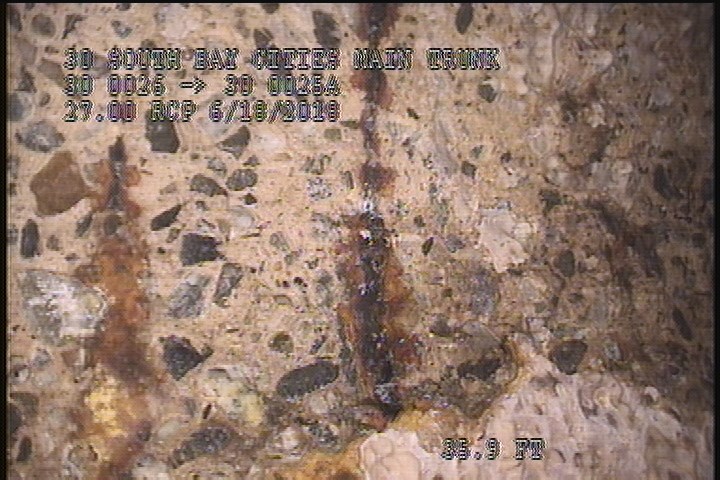

35.9 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 9.1 | SAV | — |
| 35.9 | SRV | — |
| 0 | AMH | 1245 |
| 9.1 | MGO | 75% MAG COAT INTACT |
| 9.1 | SSS | — |
| 0 | MWL | — |
| 55.2 | SSS | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 1 |
| 55.2 | SAV | — |
| 58.4 | MGO | ACTIVE CONNECTION IN THE MH @ 3 |
| 58.4 | AMH | 1255 |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- VERY SMALL AMOUNT OF VISIBLE REBAR
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-18T12:29:21-07:00
