Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2018, 10:19 AM

  • C 0590_C 0589_6152018_044857.mp4

Date
06/15/2018
W/O
0709183
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00929
PipeID
P22826
Time
3:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0893
Sewer Name
C JOINT OUTFALL C - UNIT 3E REPLACEMENT
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
19
Purpose
Maintenance Related
Project
20180615MDM_JOINT_OUTFALL_C_UNIT_3E_REPLACEMENT
Material
Vitrified Clay Pipe
Shape
Circular
Height
42 in.
Upstream MH
C 0590
Downstream MH
C 0589
Dir. of Survey
Downstream
Length Surveyed
352.8 ft.
Total Length
352.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole C 0590 to C 0589
MH: C 0590MH: C 0589downstream0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM39.9 ft. MGP - General Photograph45.5 ft. MGP - General Photograph50 ft. MGP - General Photograph352.1 ft. MGO - General Observation - ZOOM 75'352.8 ft. AMH - Downstream Manhole, Survey Ends - 5:50AM

Observation photos (4)

  • General Photograph

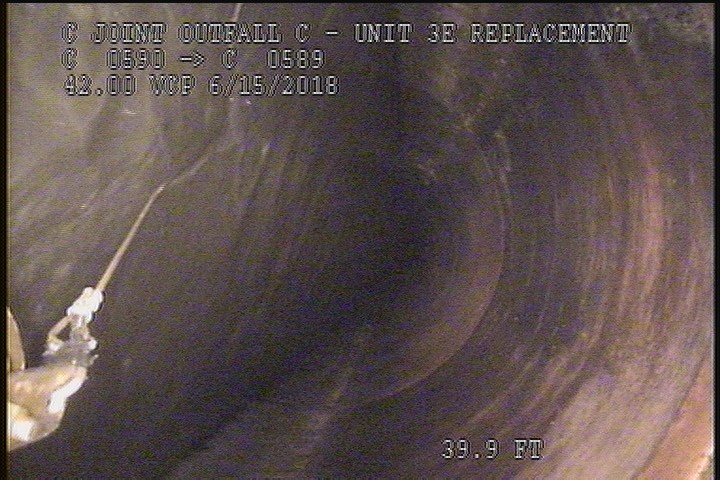

    39.9 ft. - General Photograph

  • General Photograph

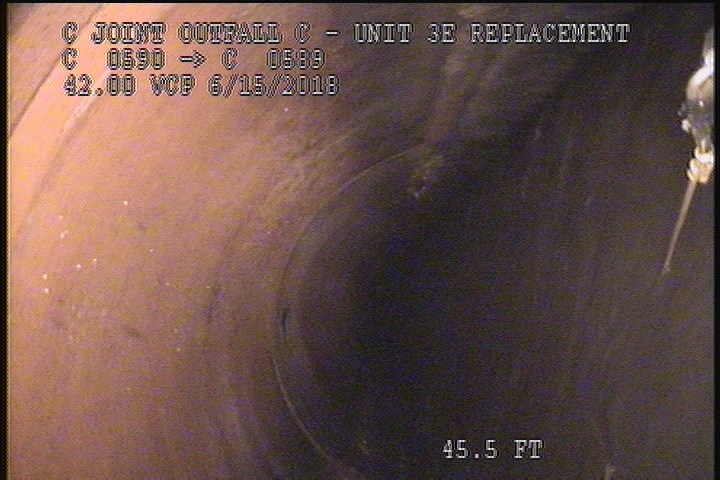

    45.5 ft. - General Photograph

  • General Photograph

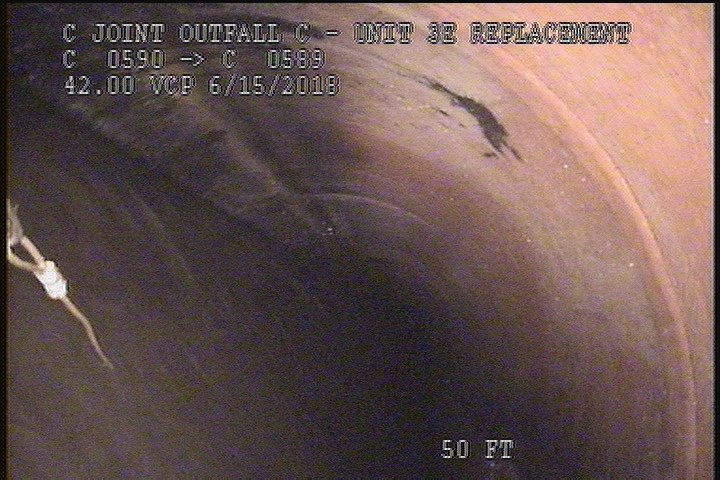

    50 ft. - General Photograph

  • General Observation - ZOOM 75'

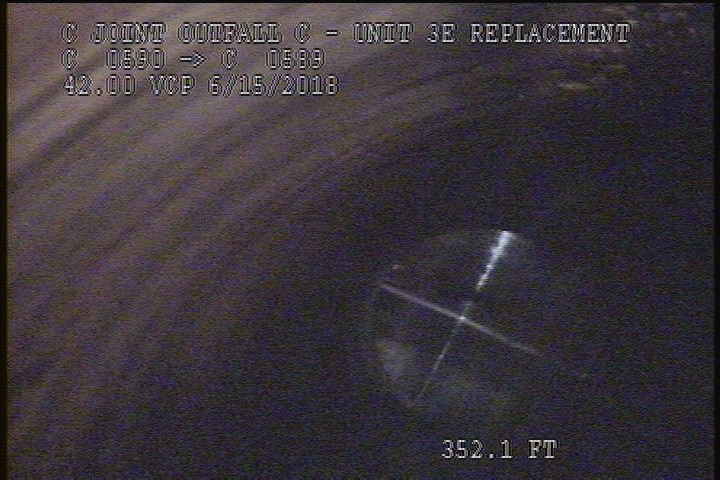

    352.1 ft. - General Observation - ZOOM 75'

All inspections of P22826Work order 0709183

Observations (8)

DistanceCodeObservation
352.1MGOZOOM 75'
39.9MGP—
352.8AMH5:50AM
0MWM—
45.5MGP—
0MWL—
0AMH4:30AM
50MGP—

Properties (3)

customer
LACSD
datetime
2018-06-15T03:19:35-07:00
year_laid
20001223
