Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 05:07 AM
18 0268_18 0267A _31052018_221940.mp4
- Date
- 05/31/2018
- W/O
- 707227
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00672
- PipeID
- P22249
- Time
- 10:07 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5631
- Sewer Name
- 18 BROADWAY TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_707227_TV18186_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0268
- Downstream MH
- 18 0267A
- Dir. of Survey
- Downstream
- Length Surveyed
- 198.2 ft.
- Total Length
- 198.2 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 11
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (5)

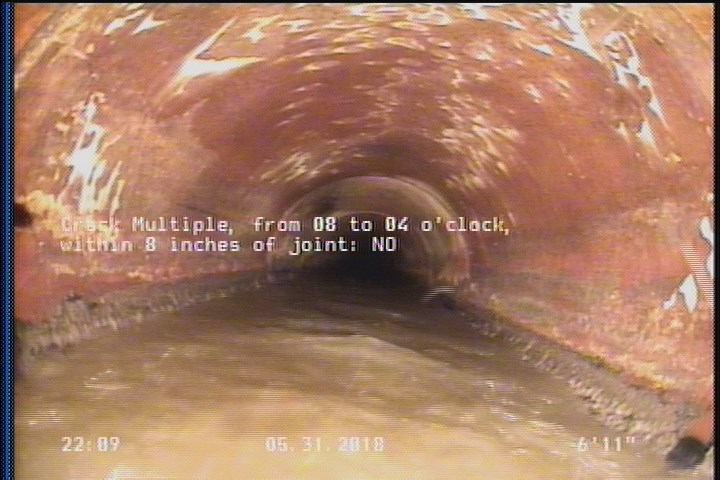

6.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO

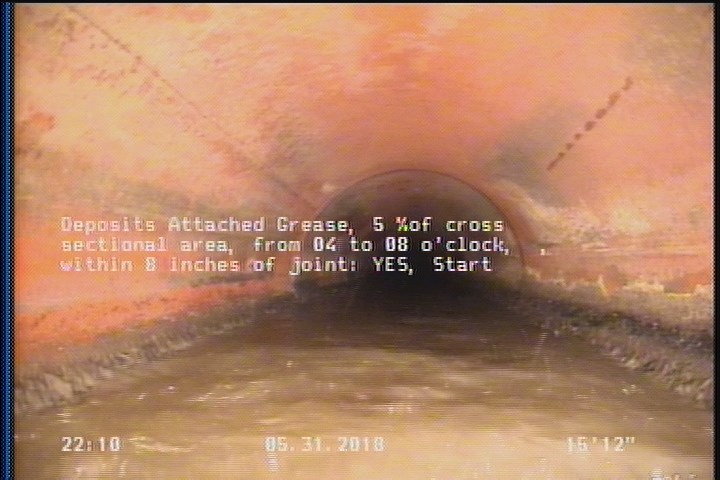

16 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

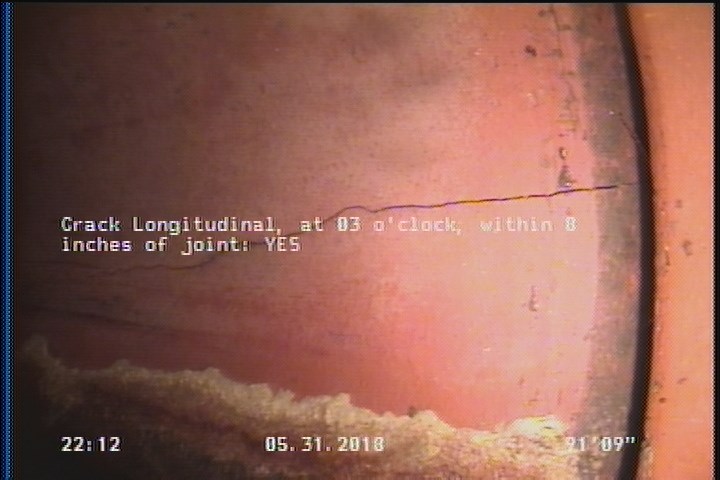

91.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

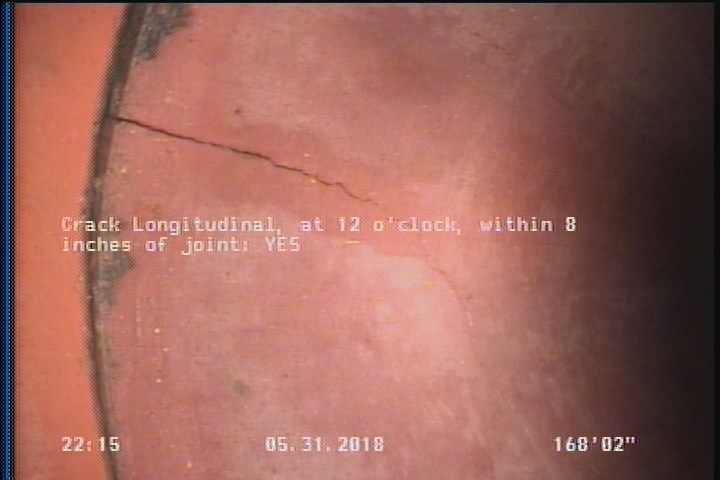

168.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

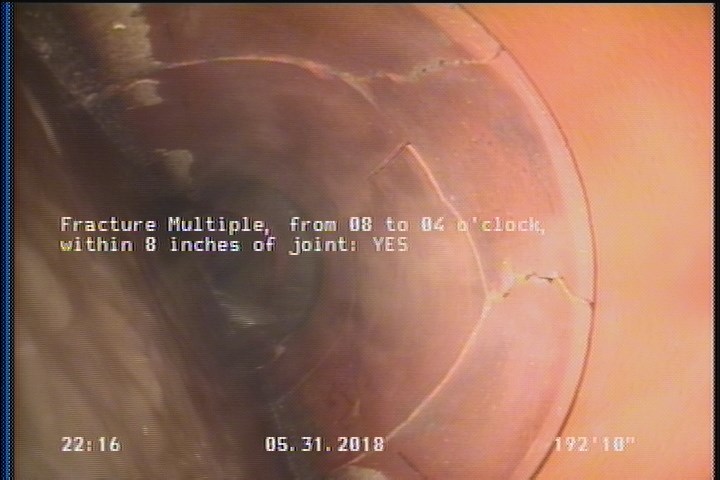

192.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 16 | DAGS | — |
| 0 | AMH | 18 0268 |
| 186.3 | TFA | — |
| 0 | MWL | — |
| 91.8 | CL | — |
| 0 | MWM | — |
| 198.2 | MGO | CONNECTION AT MH 3 OCLOCK |
| 198.2 | AMH | 18 0267A |
| 6.6 | CM | — |
| 198.2 | DAGS | — |
| 168.2 | CL | — |
| 192.8 | FM | — |
Properties (4)
- additional_info
- SC359186
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-31T22:07:07-07:00
