Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2018, 07:43 AM

  • 01 1404_01 0236_31052018_011809.mp4

Date
05/31/2018
W/O
707007
Weather
Dry
Operator/Surveyor
J. BUENROSTOR
Sewer ID
Z00218
PipeID
P01282
Time
12:43 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5179
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_707007_TV01204_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
01 1404
Downstream MH
01 0236
Dir. of Survey
Downstream
Length Surveyed
137.2 ft.
Total Length
137.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4124
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 01 1404 to 01 0236
MH: 01 1404MH: 01 0236downstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH0 ft. AMH - Upstream Manhole, Survey Begins - 01 14040 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start4 ft. MGO - General Observation - LINER7.5 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start10.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"25 ft. LFZ - Lining Failure Other, at 10 o'clock, within 8 inches of joint: NO - TAPE PEELING54 ft. LFZ - Lining Failure Other, at 09 o'clock, within 8 inches of joint: NO - TAPE PEELING74.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"136 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish136 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish137.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0236

Observation photos (1)

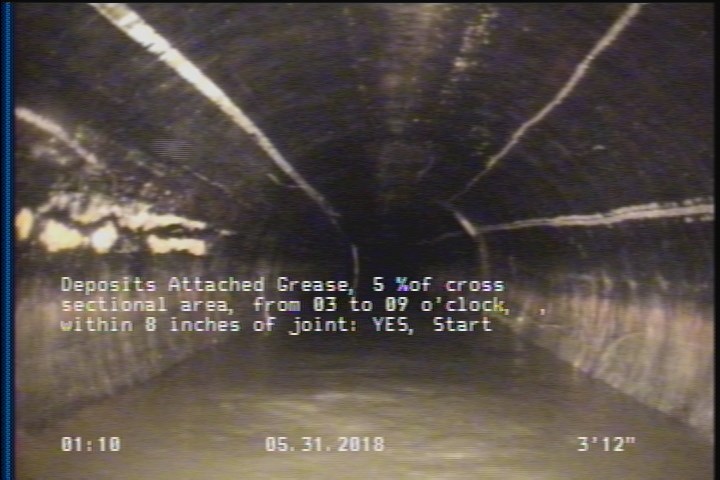

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01282Work order 707007

Observations (16)

DistanceCodeObservation
25LFZTAPE PEELING
136DSC—
74.7TF—
136DAGS—
4DAGS—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
120.4TF—
54LFZTAPE PEELING
4MGOLINER
10.6TF—
0AMH01 1404
137.2AMH01 0236
0MWL—
7.5DSC—
0MWM—

Properties (5)

additional_info
SC355100
custom_field_two
4
customer
LACSD
datetime
2018-05-31T00:43:04-07:00
lining
CIPP
