Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2018, 08:36 AM

  • 01 0235_01 0234A_31052018_014704.mp4

Date
05/31/2018
W/O
707007
Weather
Dry
Operator/Surveyor
J.BUENROSTRO
Sewer ID
Z00218
PipeID
P01280
Time
1:36 AM
Certificate
U-715-7000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5179
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_707007_TV01204_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
01 0235
Downstream MH
01 0234A
Dir. of Survey
Downstream
Length Surveyed
138.7 ft.
Total Length
138.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 01 0235 to 01 0234A
MH: 01 0235MH: 01 0234Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 02350 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.3 ft. MGO - General Observation - LINER136 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish138.7 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH138.7 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH138.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0234A

Observation photos (1)

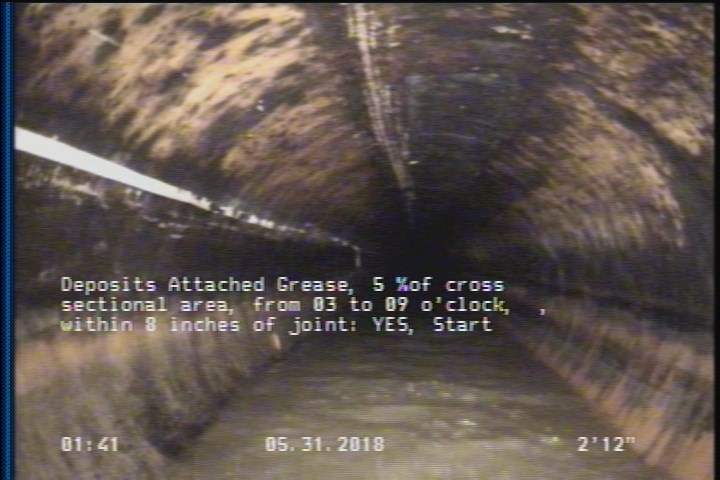

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01280Work order 707007

Observations (9)

DistanceCodeObservation
138.7MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
138.7MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0AMH01 0235
3DAGS—
0MWL—
3.3MGOLINER
138.7AMH01 0234A
136DAGS—
0MWM—

Properties (5)

additional_info
SC355100
custom_field_two
4
customer
LACSD
datetime
2018-05-31T01:36:08-07:00
lining
CIPP
