Wastewater/Activity/PacpInspection/1.0May 29, 2018, 08:32 AM
01 0266B_01 0266A_29052018_014230.mp4
- Date
- 05/29/2018
- W/O
- 707007
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00218
- PipeID
- P01314
- Time
- 1:32 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5176
- Sewer Name
- 01 SOUTH PARK AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_707007_TV01204_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 0266B
- Downstream MH
- 01 0266A
- Dir. of Survey
- Downstream
- Length Surveyed
- 149.2 ft.
- Total Length
- 149.2 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

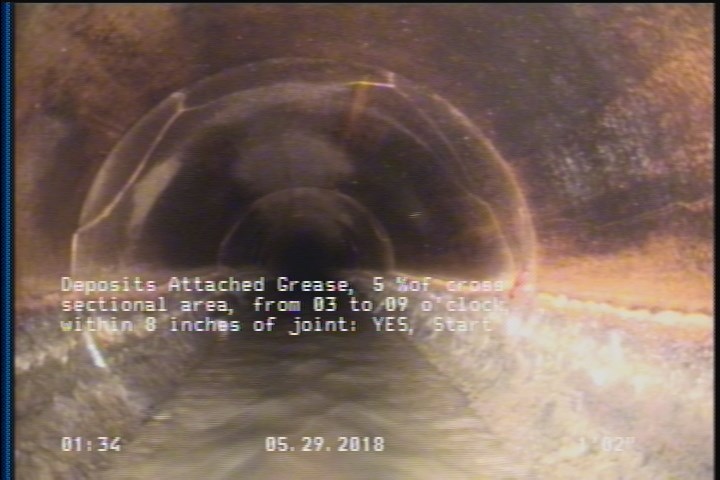

1.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

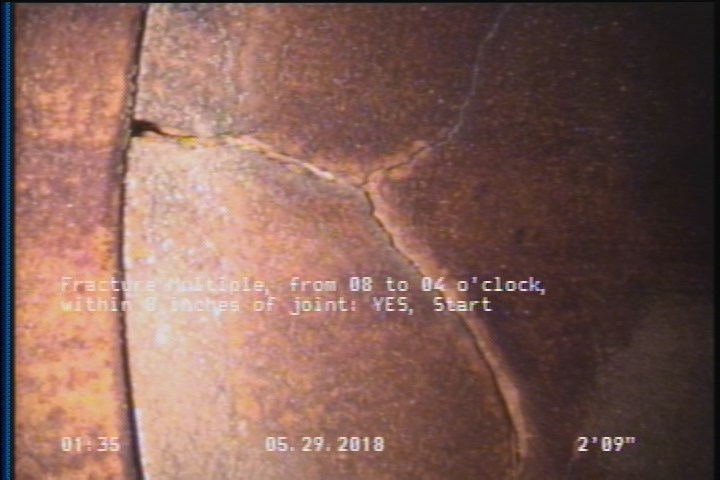

2.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 149.2 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 147.2 | FM | — |
| 2.8 | FM | — |
| 0 | AMH | 01 0266B |
| 149.2 | AMH | 01 0266A |
| 147.2 | TFC | — |
| 147.2 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 1.2 | DAGS | — |
| 126.3 | TB | — |
| 114.7 | TF | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 87 | TF | UNKNOWN, OPERATOR DID NOT STOP TO LOOK AT CONN. |
| 54 | TF | UNKNOWN, OPERATOR DID NOT STOP TO LOOK AT CONN. |
Properties (4)
- additional_info
- SC355097
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-29T01:32:12-07:00
