Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 29, 2018, 07:55 AM

  • 01 0268_01 0267_29052018_012056.mp4

Date
05/29/2018
W/O
707007
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00218
PipeID
P01316
Time
12:55 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5176
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_707007_TV01204_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0268
Downstream MH
01 0267
Dir. of Survey
Downstream
Length Surveyed
328.4 ft.
Total Length
328.4 ft.
Structural Index
4
Structural Quick
4J33
Structural Rating
237
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
3
Overall Quick
—
Overall Rating
367
Pipe schematic from manhole 01 0268 to 01 0267
MH: 01 0268MH: 01 0267downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 02680 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION INSIDE THE MH. @ 03 O'CLOCK0 ft. MGO - General Observation - CONNECTION INSIDE THE MH. @ 09 O'CLOCK0.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES6.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start42.2 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES45.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish45.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start82.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"145.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"175.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"205.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"238.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"268 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"326.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish326.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish328.4 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH328.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0267328.4 ft. MGO - General Observation - CAPPED CONNECTION AT 9 O' CLOCK AT

Observation photos (5)

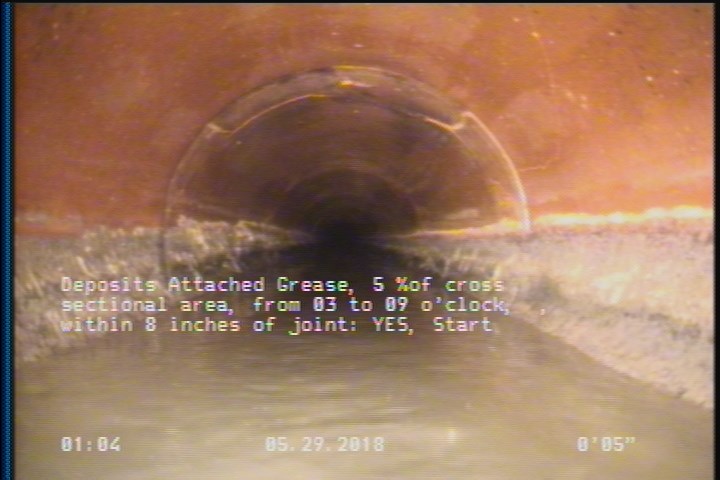

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    0.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

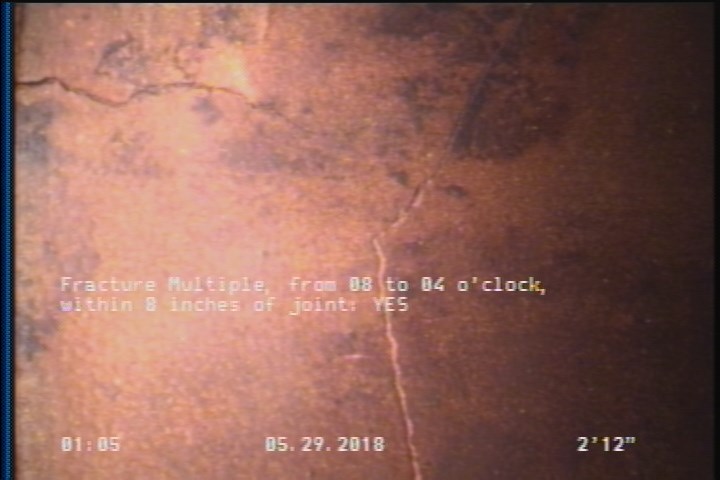

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

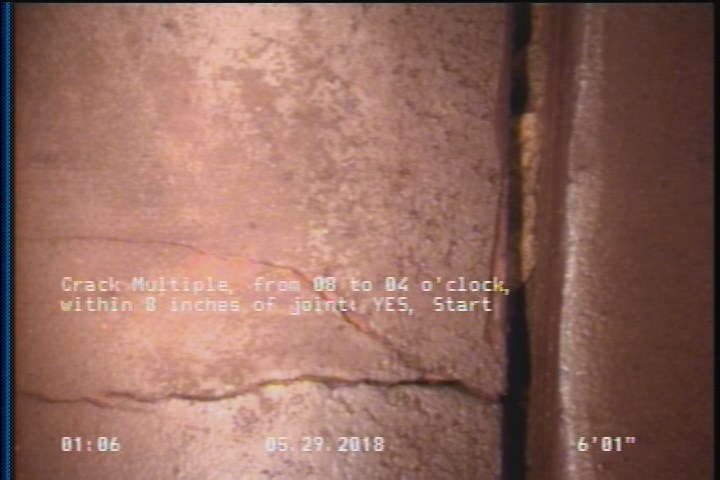

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

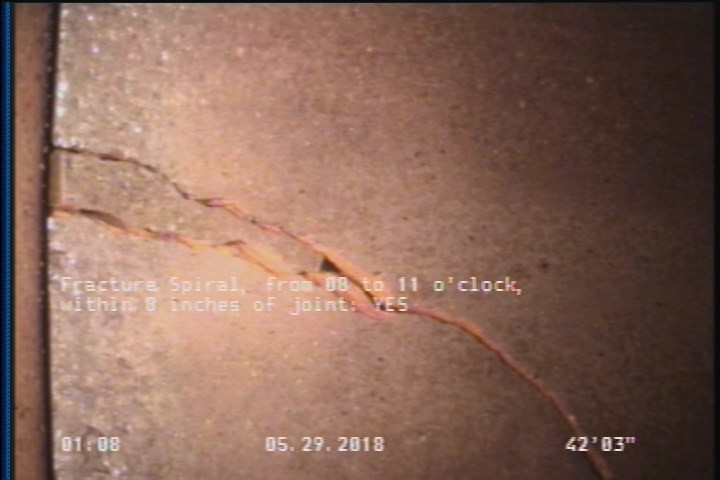

  • Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

    42.2 ft. - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

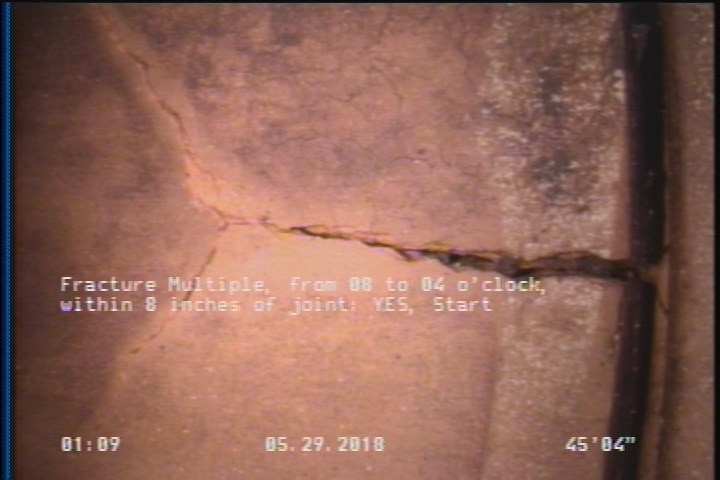

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    45.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01316Work order 707007

Observations (22)

DistanceCodeObservation
268TF—
328.4MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
175.8TF—
42.2FS—
145.9TF—
45.3CM—
205.5TF—
6.1CM—
0AMH01 0268
0MWM—
45.3FM—
0MWL—
0.4DAGS—
3FM—
0MGOCONNECTION INSIDE THE MH. @ 03 O'CLOCK
82.7TFC—
328.4AMH01 0267
238.4TFC—
326.3FM—
328.4MGOCAPPED CONNECTION AT 9 O' CLOCK AT
326.3DAGS—
0MGOCONNECTION INSIDE THE MH. @ 09 O'CLOCK

Properties (4)

additional_info
SC355097
custom_field_two
2
customer
LACSD
datetime
2018-05-29T00:55:03-07:00
